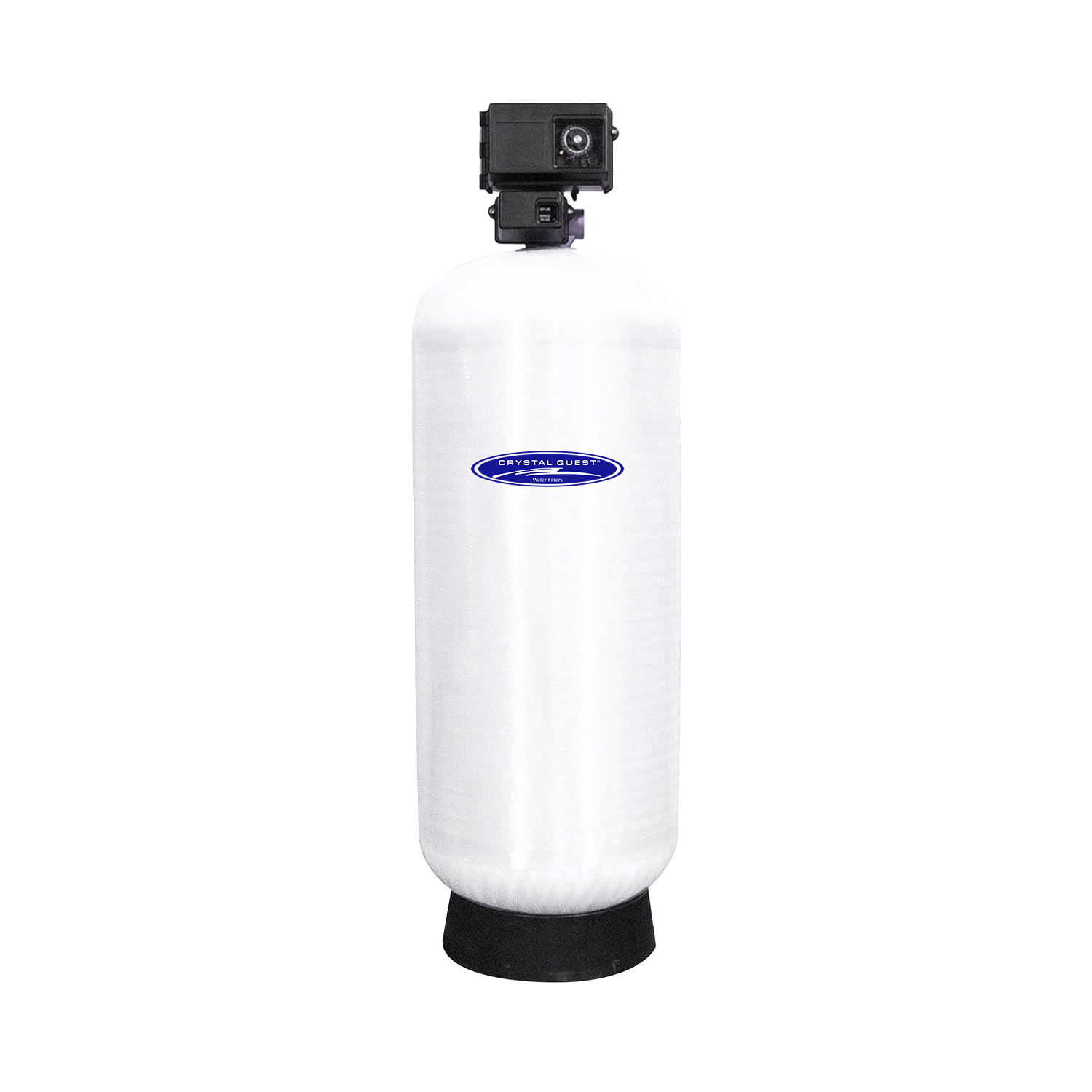

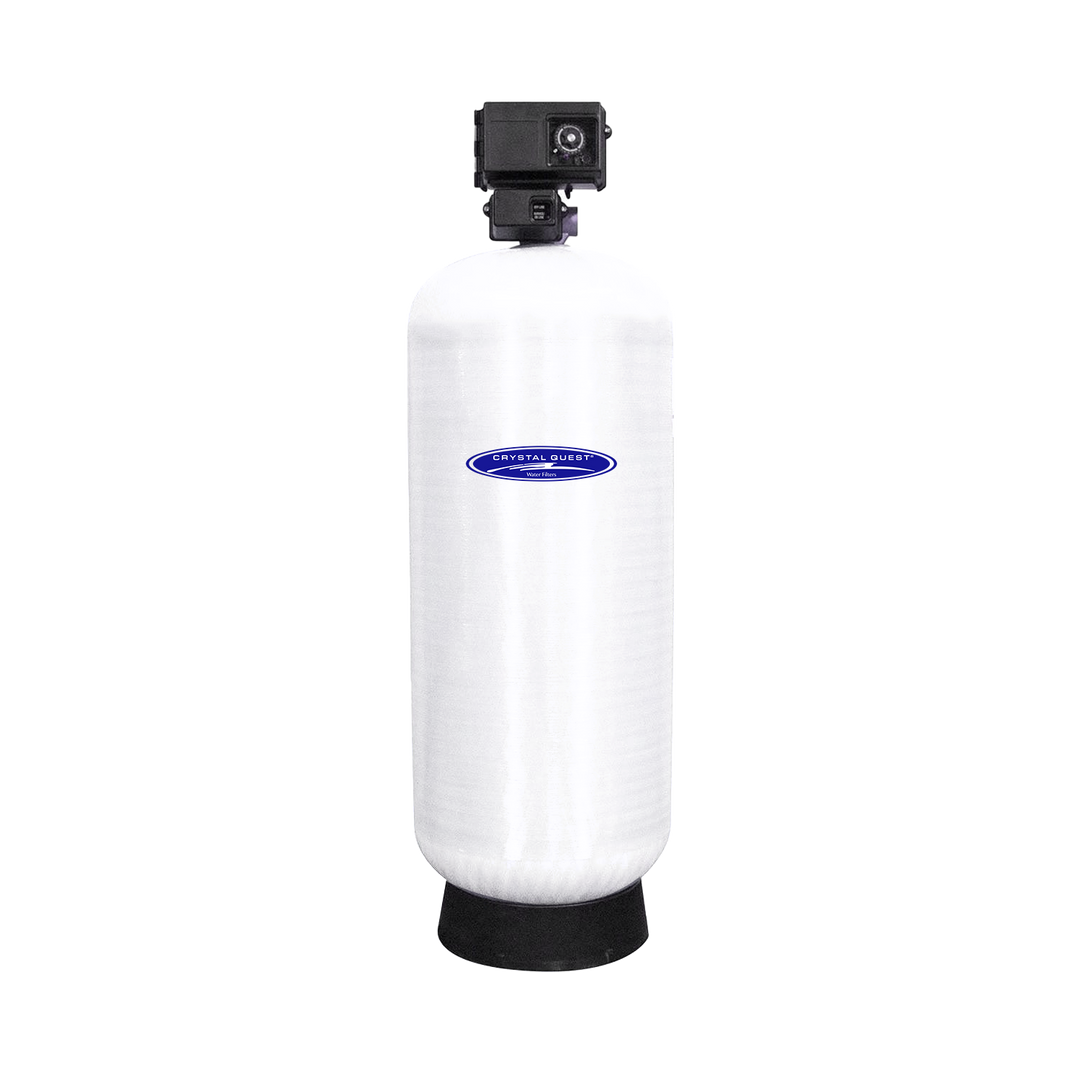

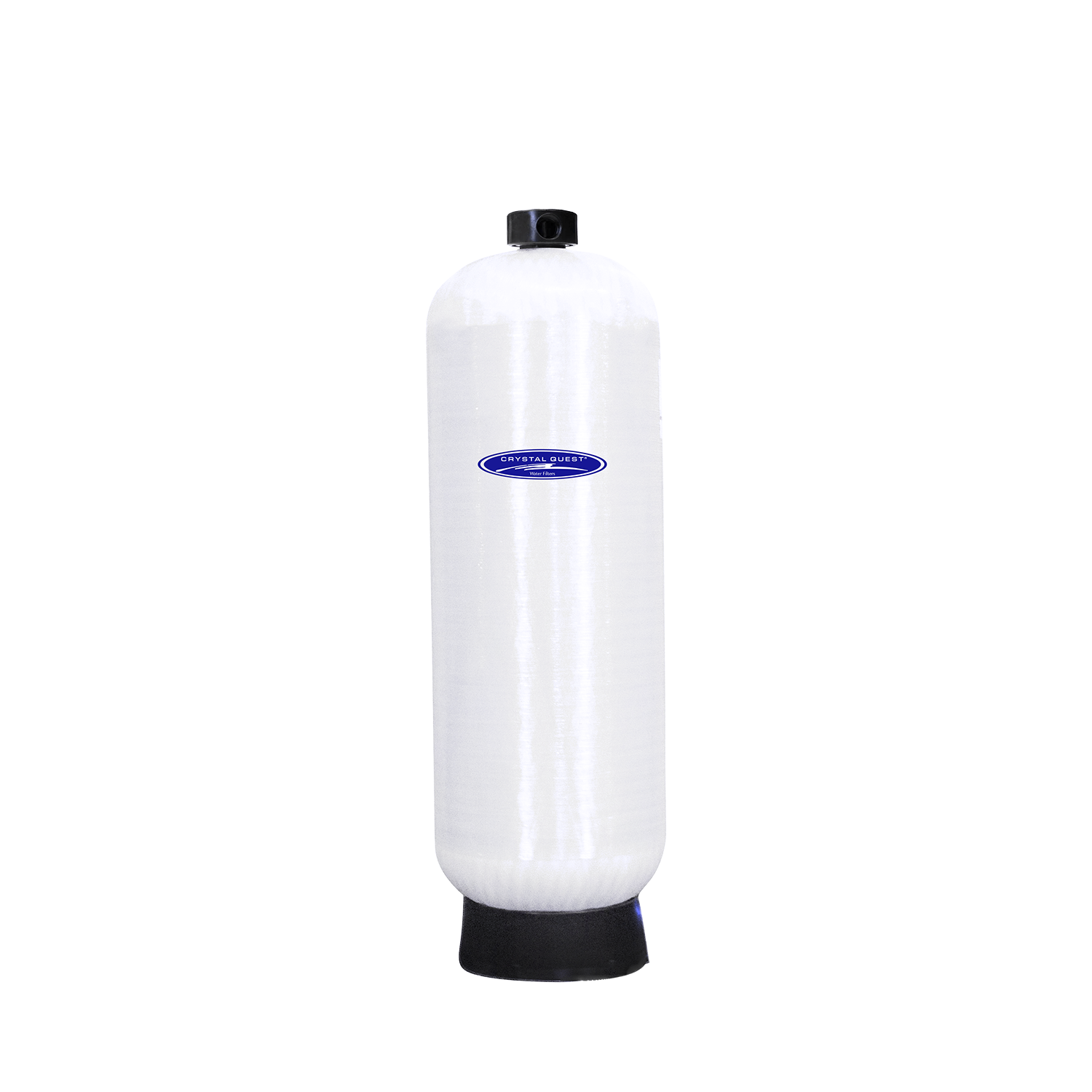

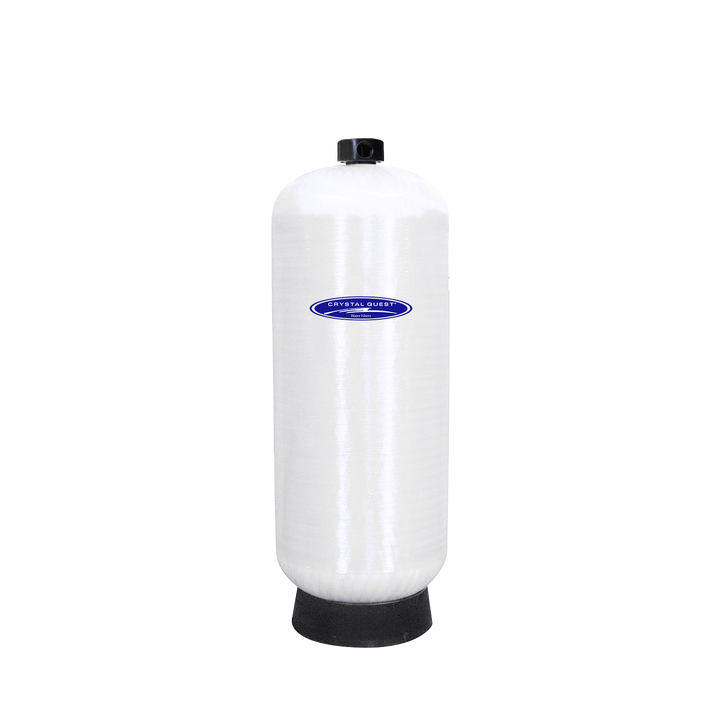

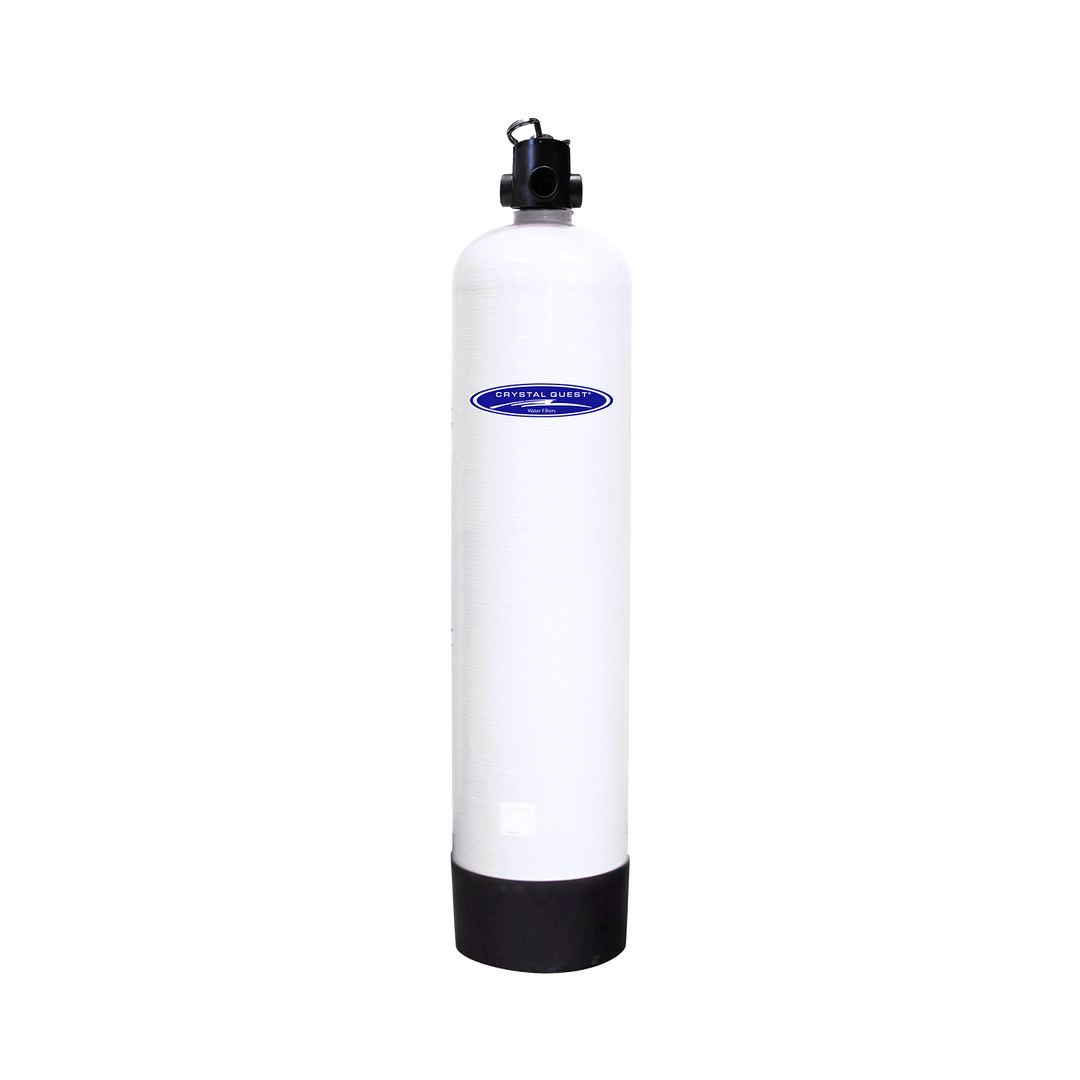

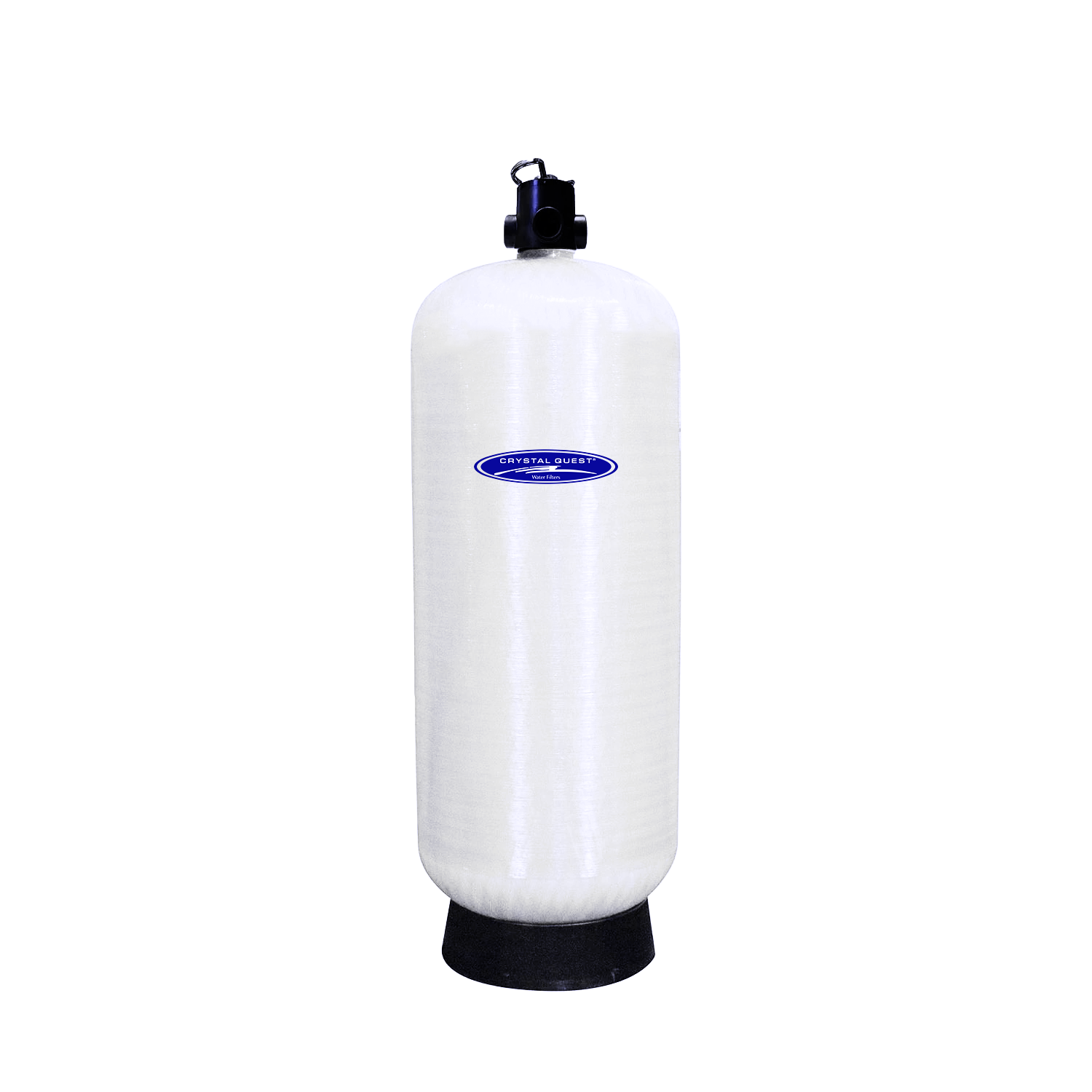

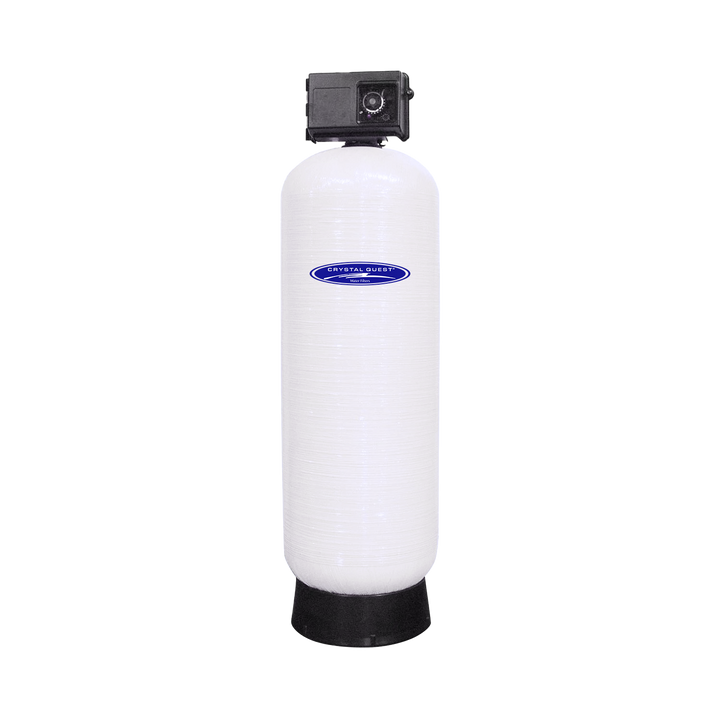

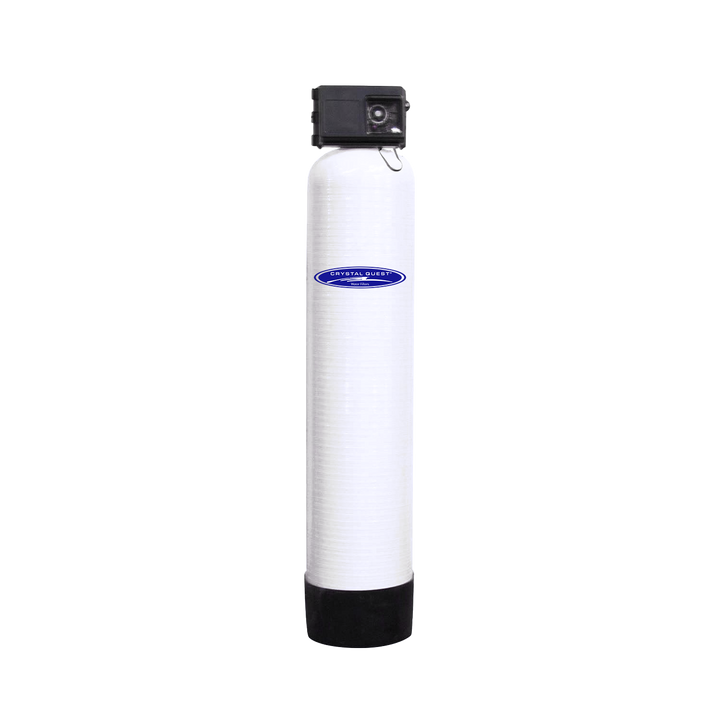

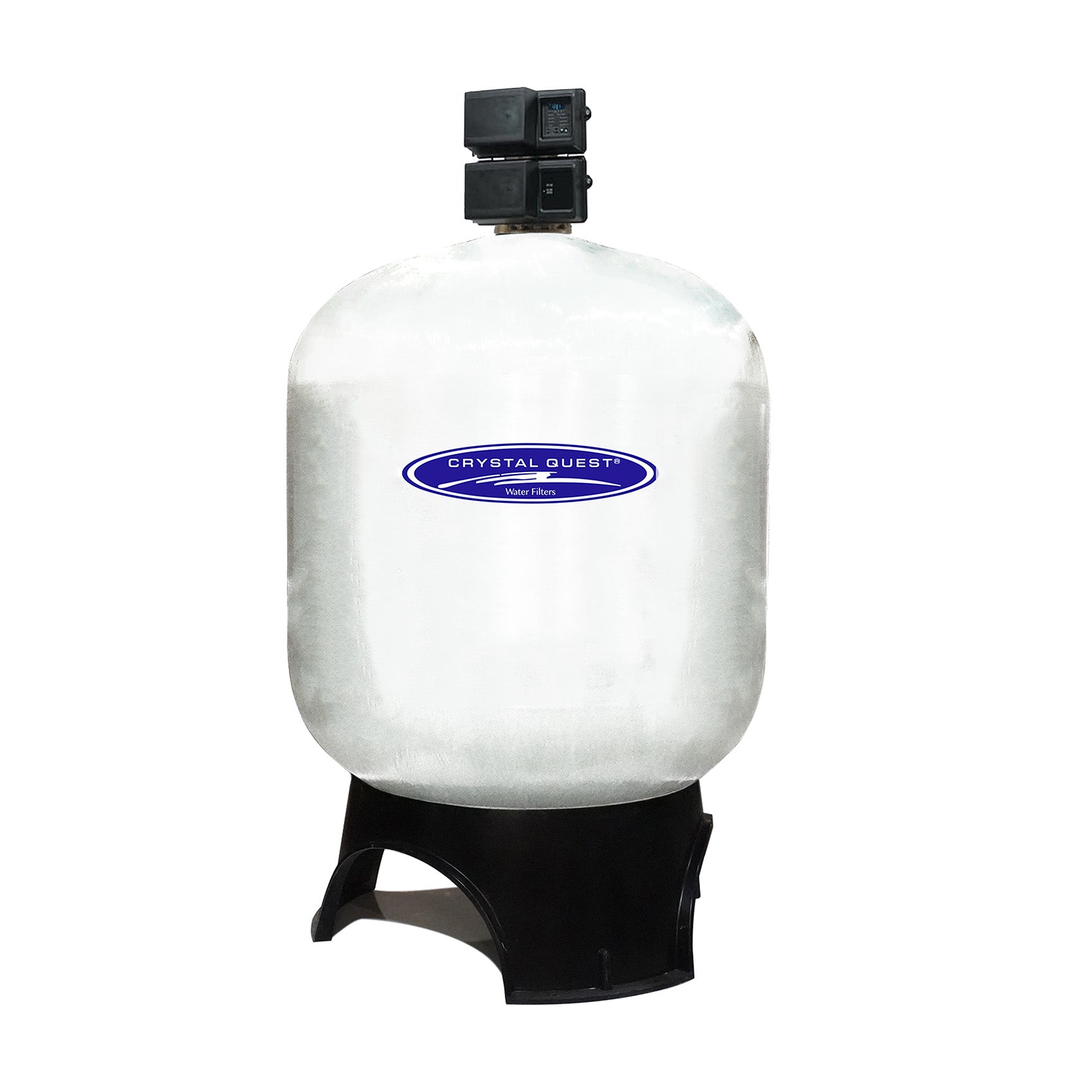

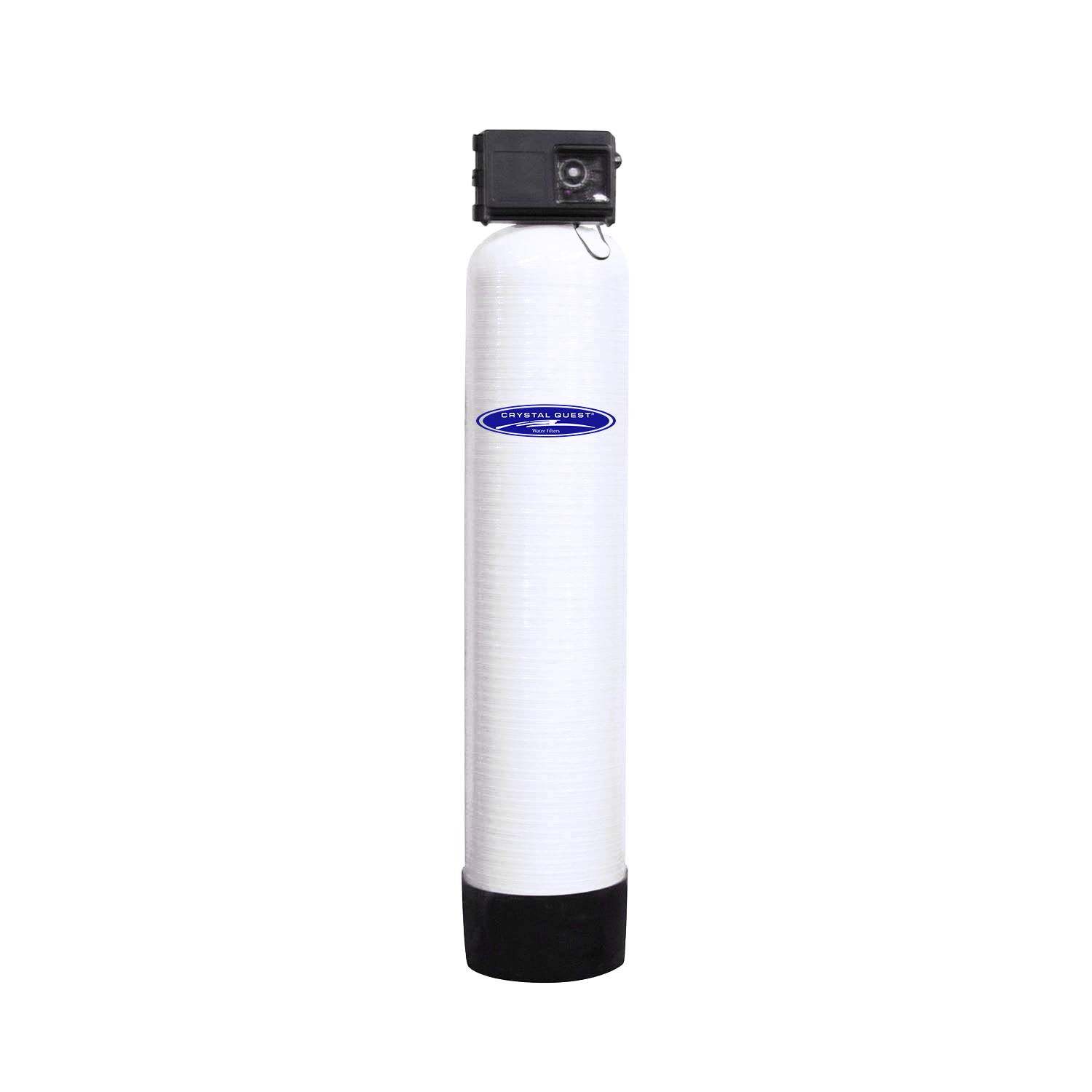

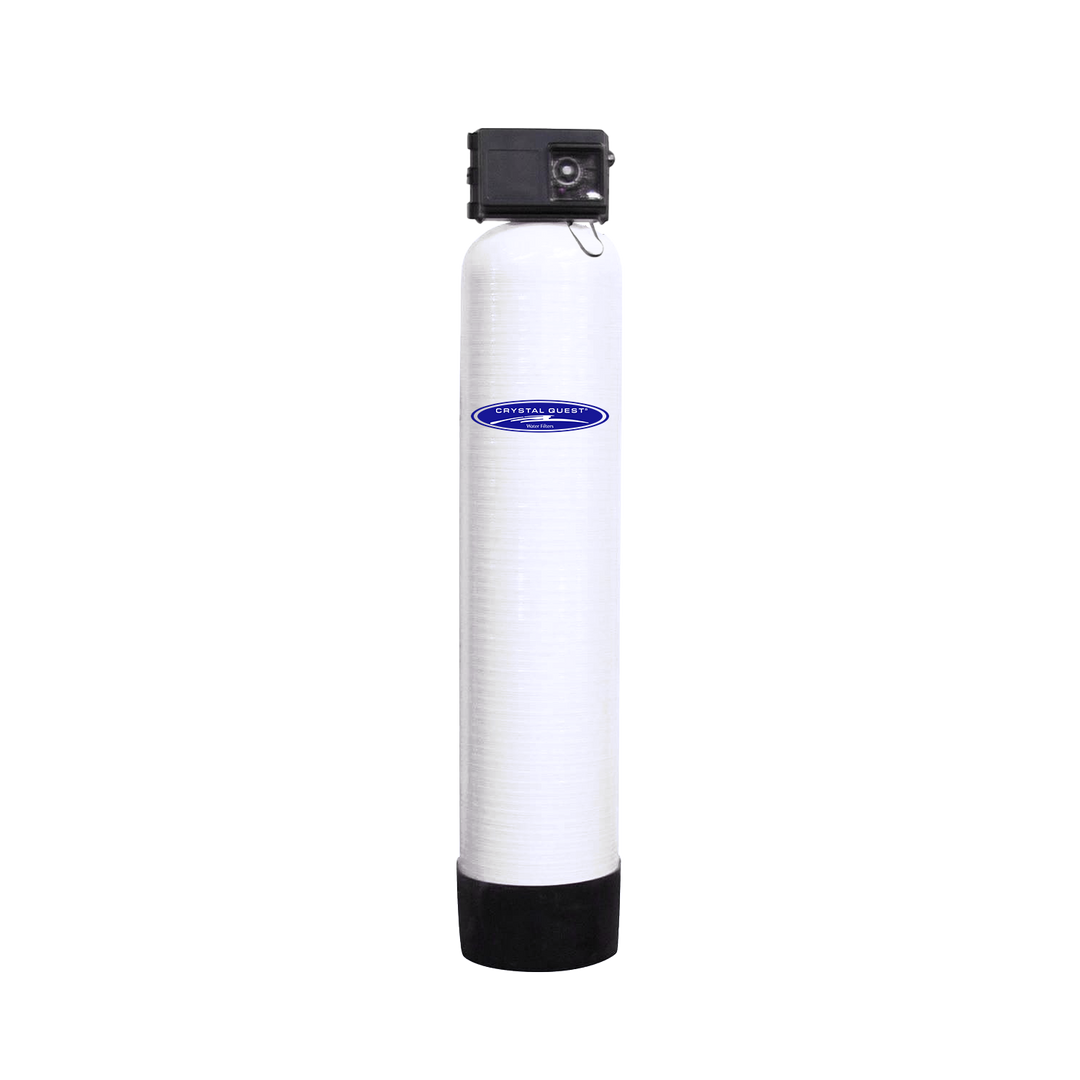

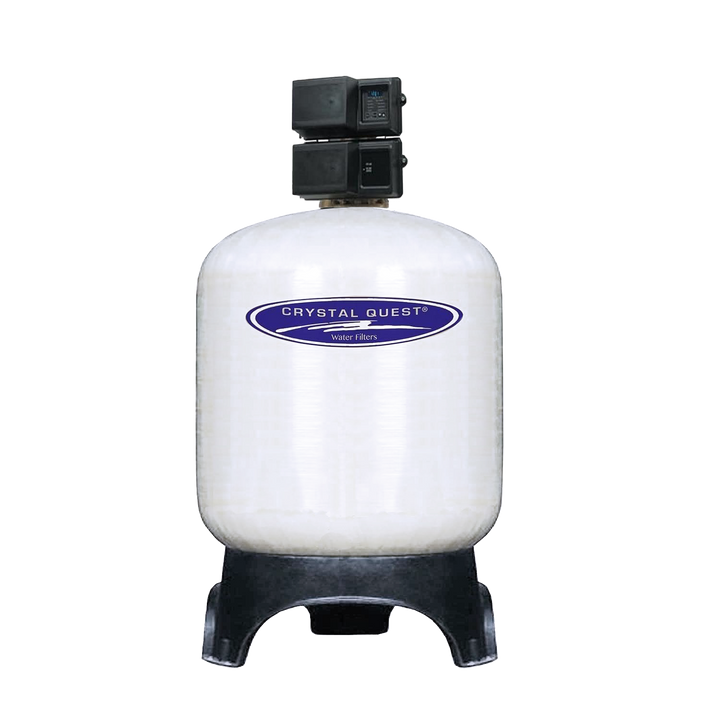

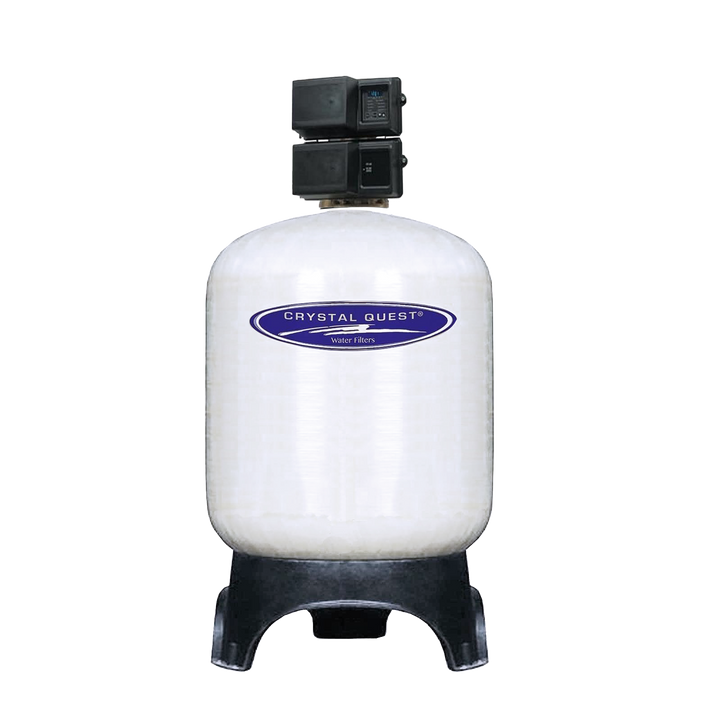

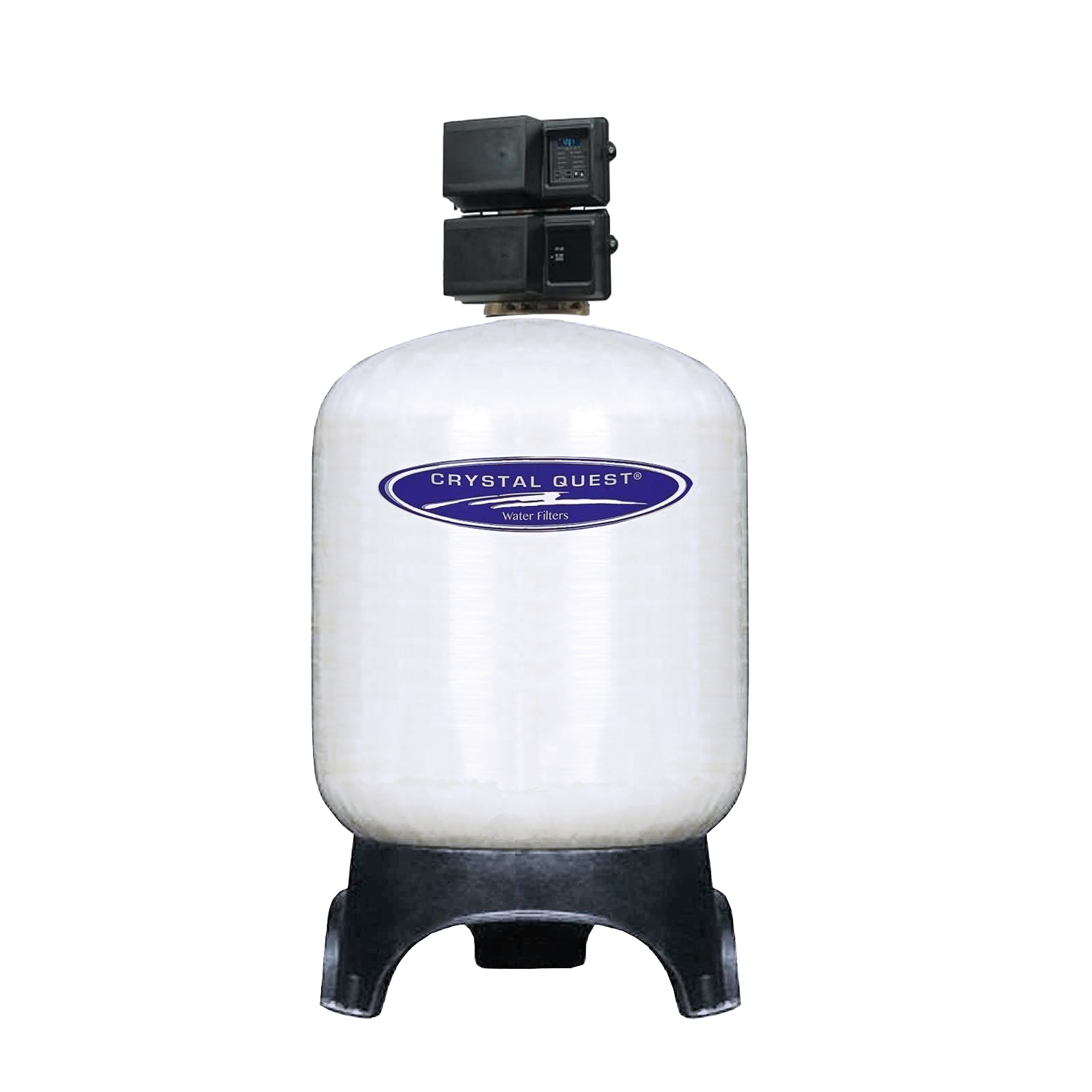

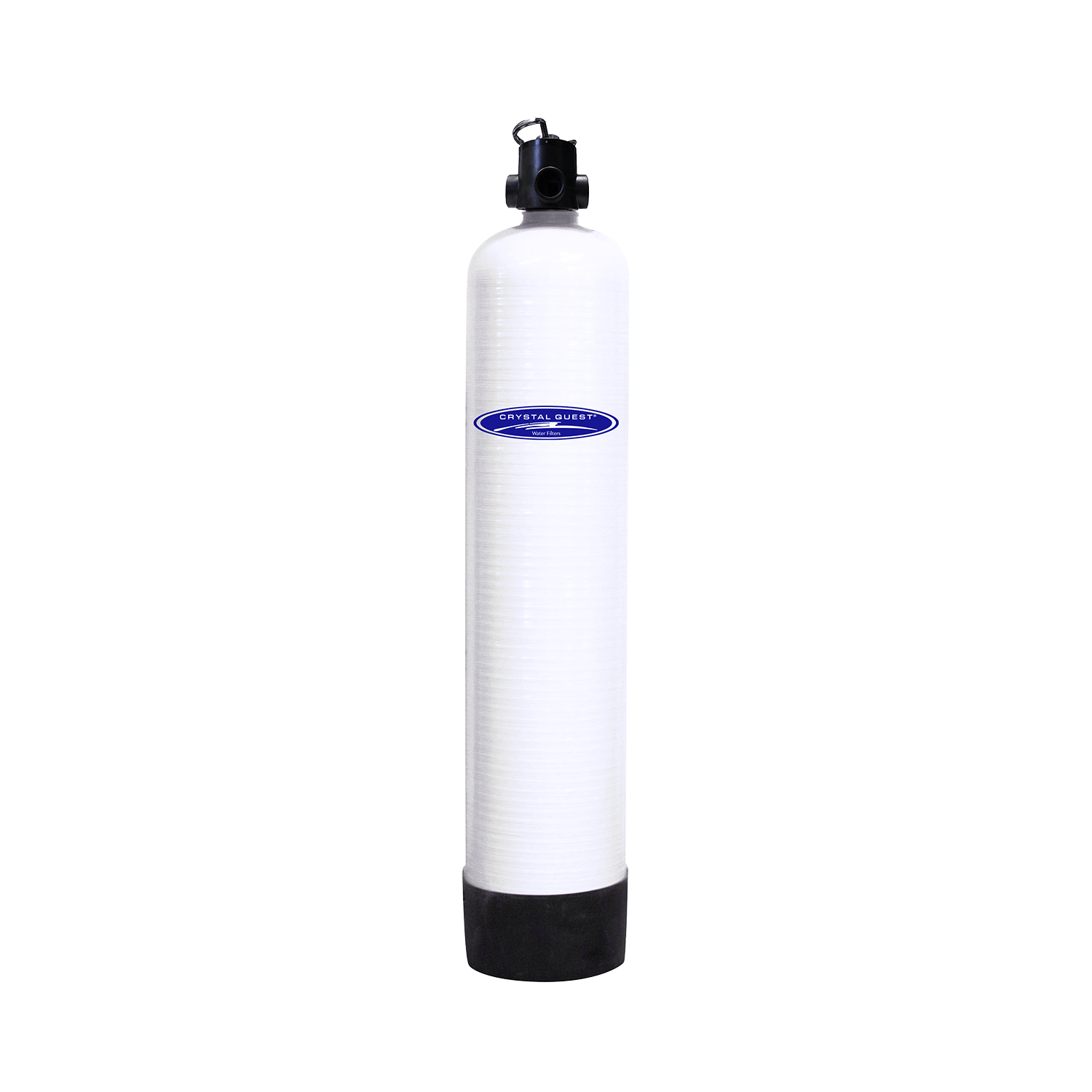

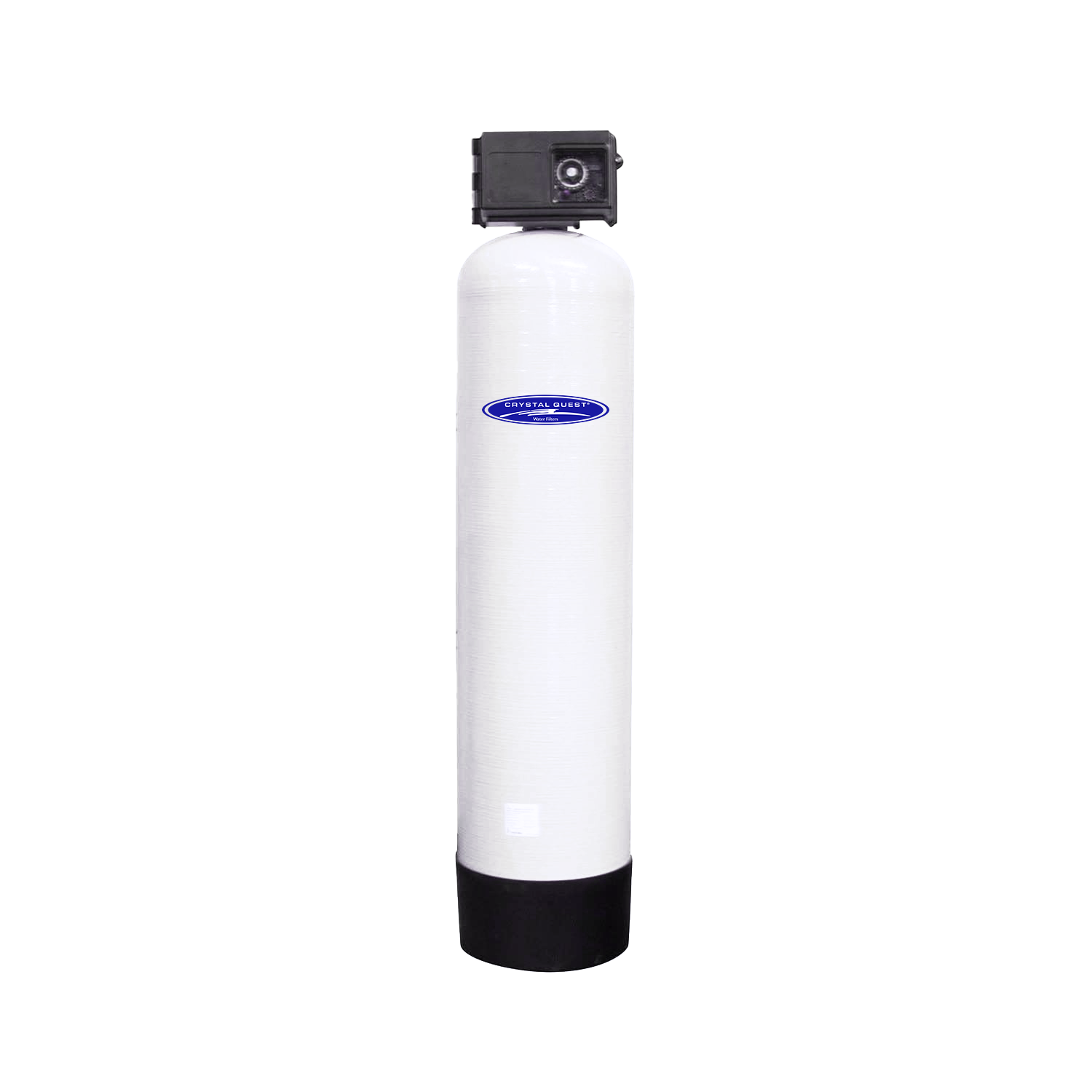

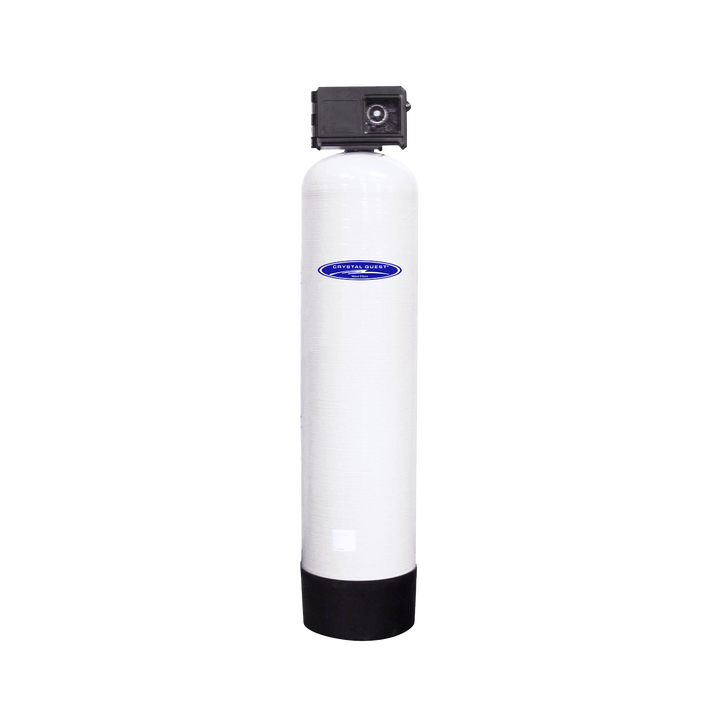

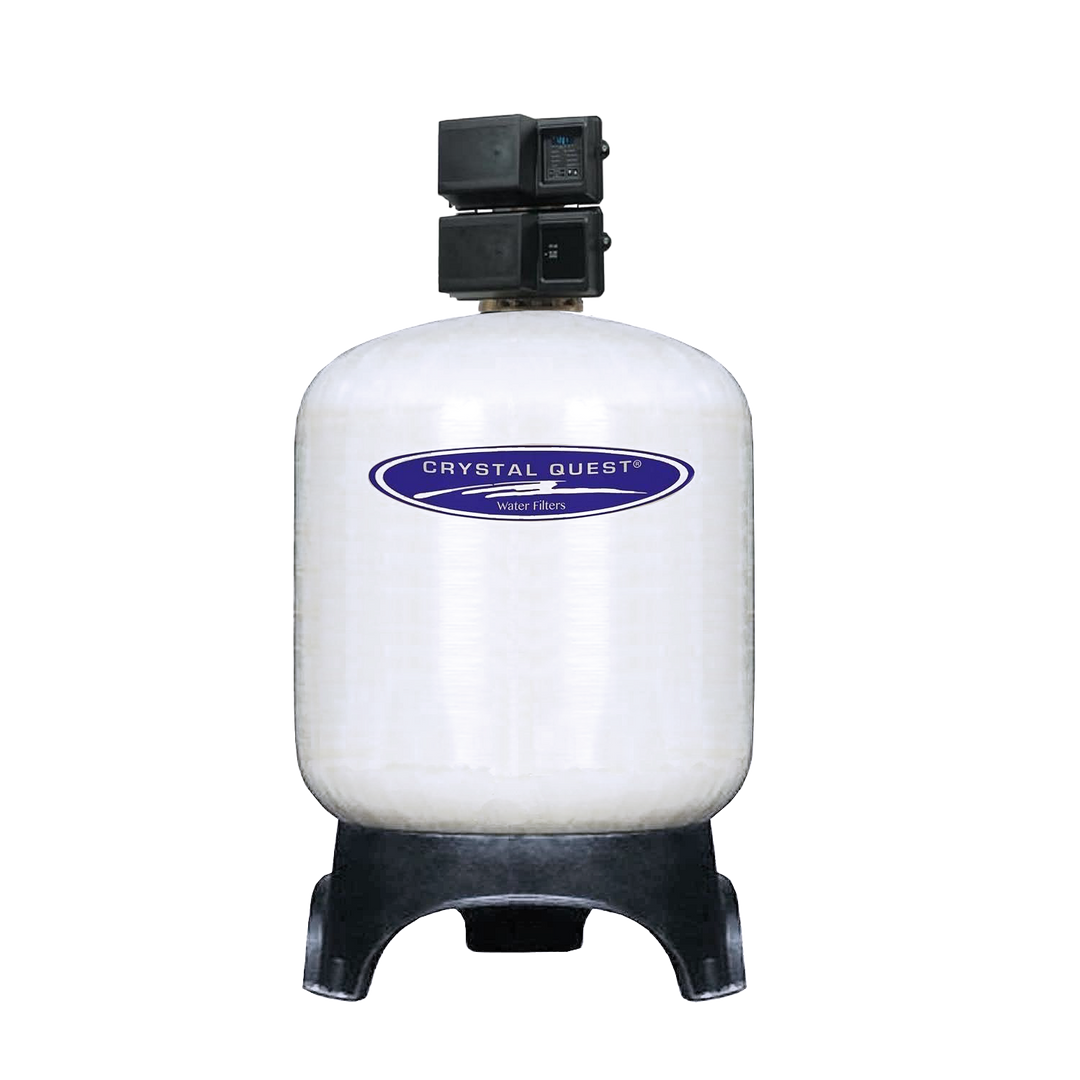

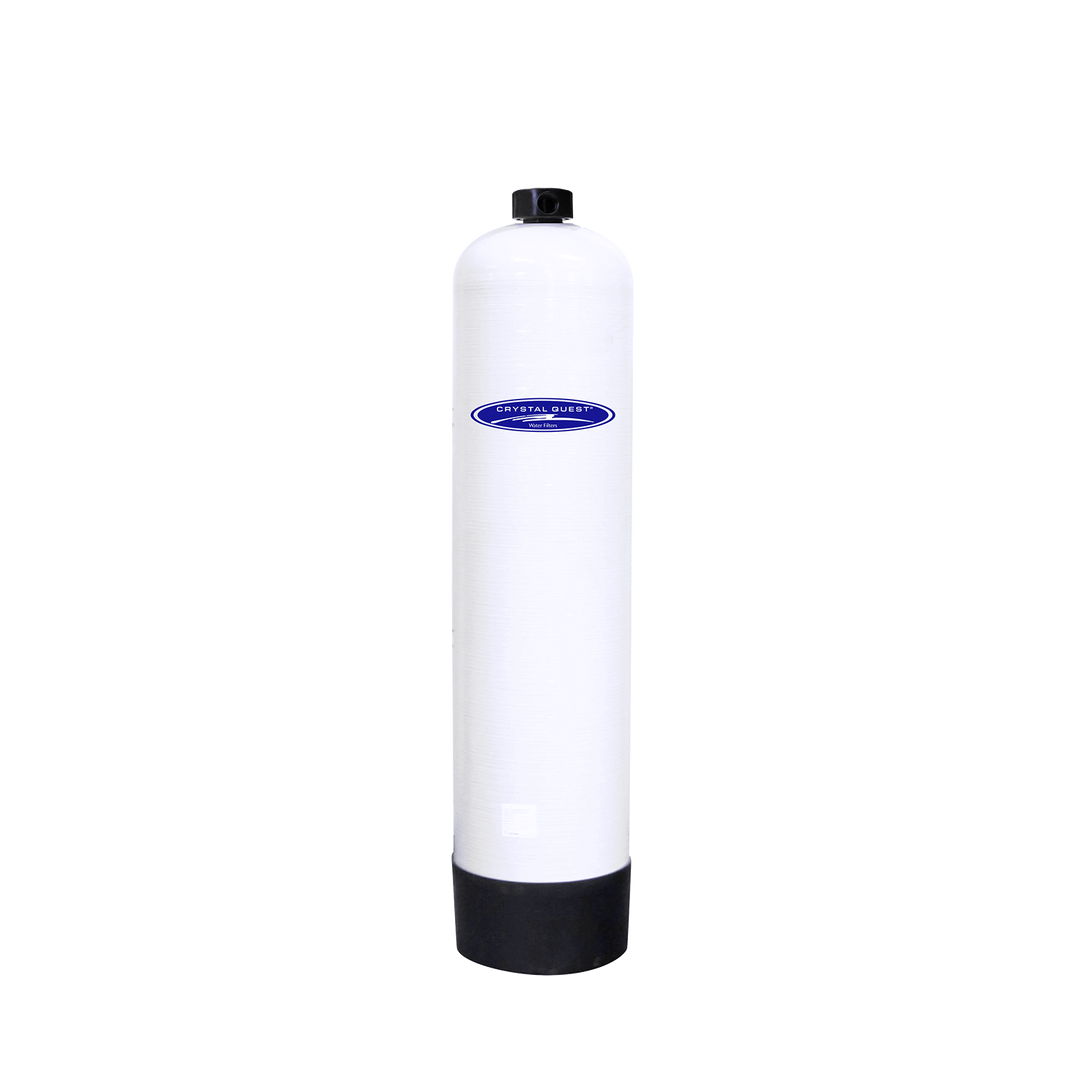

SMART Commercial Water Filter | Our flagship system for business protection.
SMART GAC Water Filtration System reduces & removes harmful contaminants using our special house blend known as SMART Multimedia. These customizable systems come with pre and post-filters and can also be paired with a water softener to take care of any hard water problems.
Multi-Layer Filtration That Works Throughout the Entire System
Unlike simple carbon filters that only treat water at the surface, SMART filtration uses a layered multimedia filtration bed. As water flows through the system, contaminants are removed at multiple levels inside the tank for deeper and more efficient purification. This design allows the filter to capture particles as small as 5–15 microns, which is significantly finer than many conventional sand or basic media filters.
Advanced Carbon Filtration with Catalytic GAC
At the core of the system is a blend of high-quality coconut shell granular activated carbon (GAC) and catalytic carbon. This powerful carbon filtration helps reduce:
-
Chlorine and chloramines
-
Volatile organic compounds (VOCs)
-
Industrial chemicals and solvents
-
Pesticides and herbicides
-
Unpleasant taste and odor
Whole Water Protection
Because the SMART GAC system is installed where water enters your shop, it treats every drop of water before it reaches your plumbing. That means cleaner water for:
Filtering water at the point of entry also helps protect plumbing systems and extend the lifespan of appliances by reducing chemical exposure and sediment buildup.
High Flow Performance for Modern Businesses
The system is engineered to maintain strong water flow so your shop can continue operating normally even while filtration is occurring. SMART multimedia filtration distributes contaminant removal throughout the entire filter bed, improving efficiency while maintaining consistent water pressure. This makes it suitable for shops with a high daily water usage.
Long-Lasting and Cost-Efficient Filtration
The filtration media inside the SMART GAC system is designed for long service life and reliable performance. Depending on water conditions and household usage, the media can last years before replacement is required, helping keep the cost of filtration extremely low per gallon of water treated.
Need help choosing a system? Click Here
Compatible Valves:
GPM:15

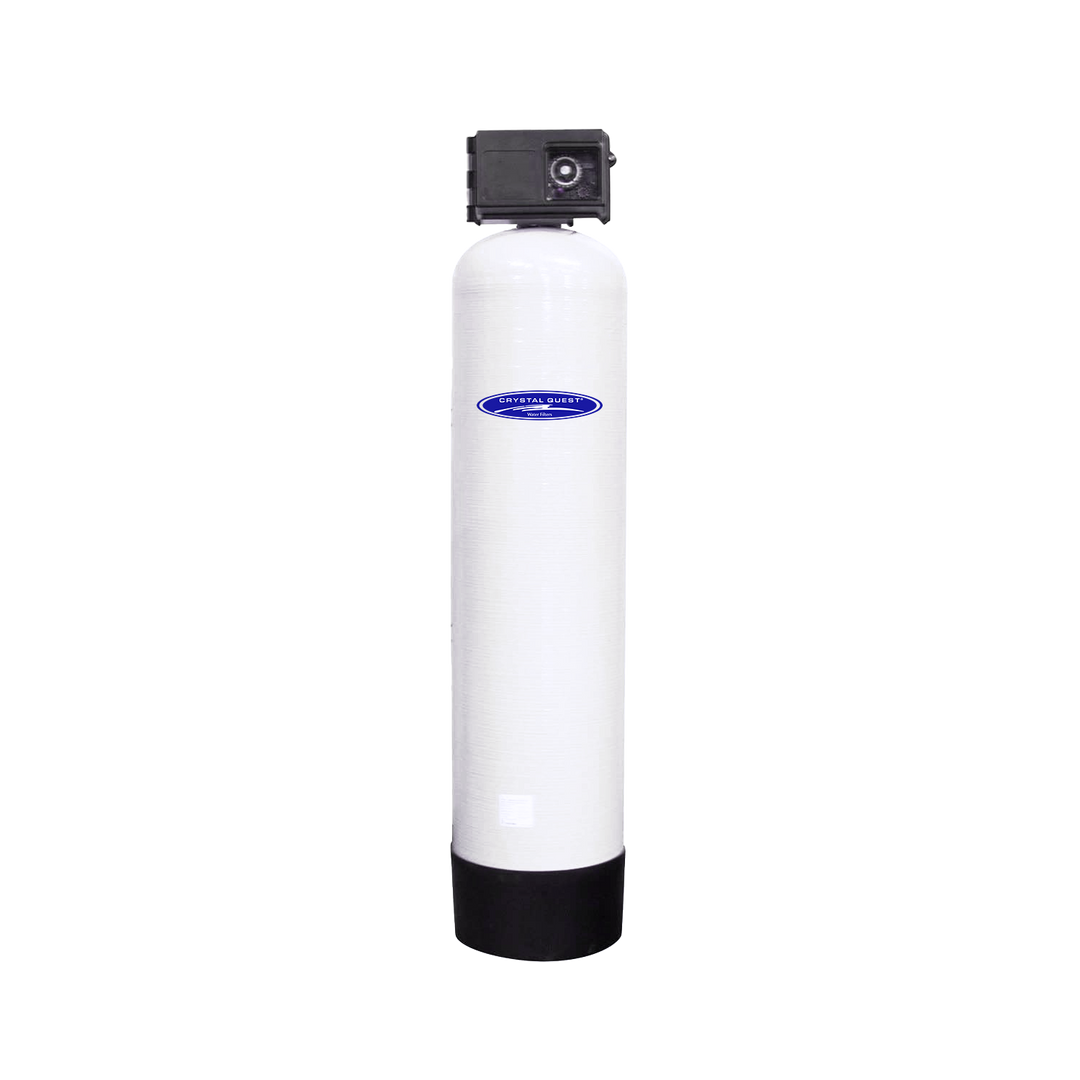

2510 Automatic Control Head
Elevate your water treatment system with the cutting-edge 2510 Automatic Control Head, engineered for unparalleled precision and adaptability. This advanced control head is designed to meet the diverse needs of both filtration and water softening systems, offering two distinct operational modes to suit your specific requirements.
Features:
- Electromechanical Timer valves
- 3/5” control valve
- Standard 1.9" distributor pilot
- high service flow rate of 19 GPM
- backwash capacity of 17 GPM
- valves use all brass material
- engineered for commercial & industrial use
2510 Automatic Control Head
Elevate your water treatment system with the cutting-edge 2510 Automatic Control Head, engineered for unparalleled precision and adaptability. This advanced control head is designed to meet the diverse needs of both filtration and water softening systems, offering two distinct operational modes to suit your specific requirements.
Features:
- Electromechanical Timer valves
- 3/5” control valve
- Standard 1.9" distributor pilot
- high service flow rate of 19 GPM
- backwash capacity of 17 GPM
- valves use all brass material
- engineered for commercial & industrial use
GPM:20 - 35

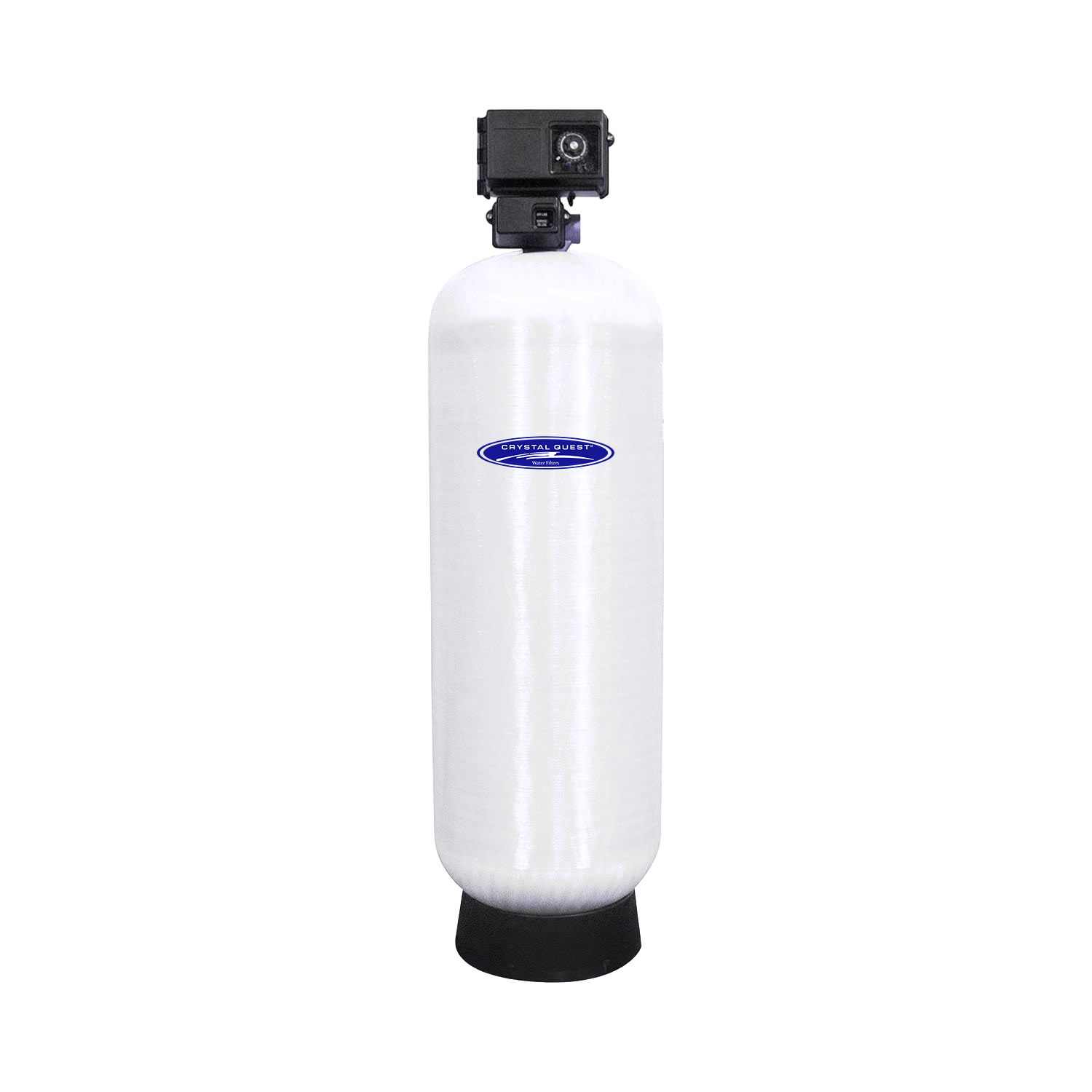

2900 Automatic Control Head
Elevate your water treatment setup with the 2900 Automatic Control Head, designed to redefine performance standards in commercial, industrial, and hot water applications. This advanced control head integrates superior technology and robust construction to deliver unmatched efficiency and reliability.
Features:
- Electromechanical Timer valves
- 2” control valve
- high service flow rate of 106 GPM
- backwash capacity of 36 GPM
- valves use all brass material
- self adjusting backwash controller
- engineered for commercial & industrial use
2900 Automatic Control Head
Elevate your water treatment setup with the 2900 Automatic Control Head, designed to redefine performance standards in commercial, industrial, and hot water applications. This advanced control head integrates superior technology and robust construction to deliver unmatched efficiency and reliability.
Features:
- Electromechanical Timer valves
- 2” control valve
- high service flow rate of 106 GPM
- backwash capacity of 36 GPM
- valves use all brass material
- self adjusting backwash controller
- engineered for commercial & industrial use
GPM:200 - 390
| Specification |
CQE-CO-02059 |
CQE-CO-02060 |
CQE-CO-02061 |
CQE-CO-02062 |
CQE-CO-02063 |
CQE-CO-02064 |
CQE-CO-02065 |
CQE-CO-02066 |
CQE-CO-02700 |
| Service Flow Rate GPM |
15 |
20 |
35 |
60 |
75 |
185 |
200 |
245 |
390 |
| Peak Flow GPM |
22 |
41 |
60 |
95 |
140 |
250 |
270 |
280 |
450 |
| Backwash Flow GPM |
5 |
7 |
12 |
15 |
25 |
35 |
50 |
65 |
75 |
| Pipe Size |
1" |
1.5" |
1.5" |
2" |
2" |
2" / 3" |
3" |
3" |
3" |
| Electronic Control Valve |
2510 |
2850 |
2850 |
2900 |
2900 |
3150 / 3900 |
3900 |
3900 |
3900 |
| SMART Multimedia |
3 ft³ |
4 ft³ |
7 ft³ |
10 ft³ |
15 ft³ |
20 ft³ |
30 ft³ |
40 ft³ |
60 ft³ |
| PSI Range |
35-60 |
35-60 |
35-60 |
35-60 |
35-60 |
35-60 |
35-60 |
35-60 |
35-60 |

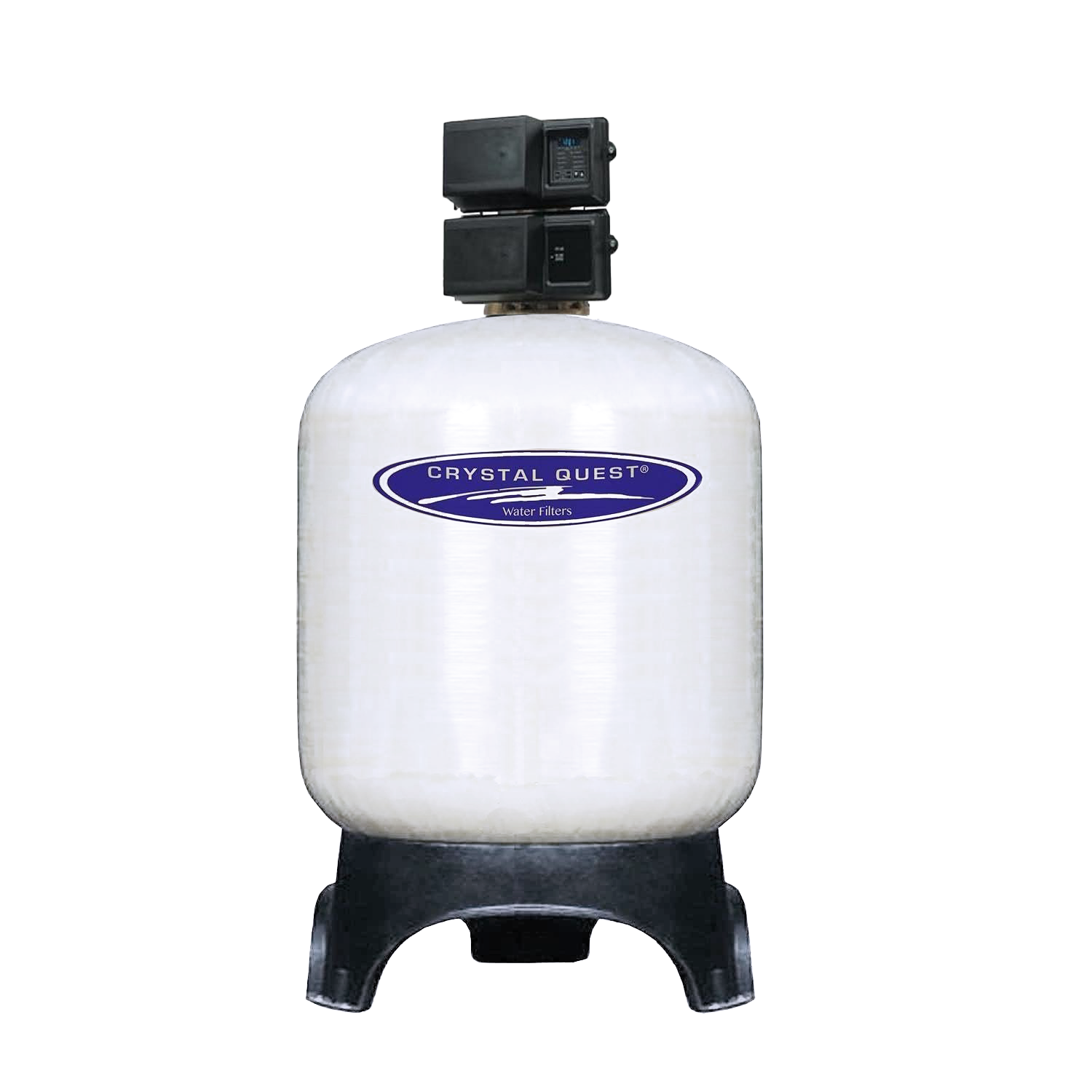

Mineral Tank Size
(in.) |
14" x 65" |
16" x 65" |
21" x 62" |
24" x 72" |
30" x 72" |
36" x 72" |
42" x 72" |
48" x 72" |
63" x 83" |
Space Required
(in.) (D x H) |
16" x 75" |
18" x 75" |
23" x 84" |
24" x 95" |
32" x 95" |
40" x 192" |
46" x 192" |
52" x 192" |
67" x 203" |
| Quartz (lbs.) |
30 |
40 |
70 |
100 |
150 |
200 |
300 |
400 |
600 |
**Service Flow - Varies depending on water quality & filter
