Whole-House Water Softener System
Eliminate Hard Water, Protect Your Plumbing, and Enjoy Softer Water Throughout Your Home
Hard water is one of the most common water quality issues in homes across North America. When water contains high levels of minerals such as calcium and magnesium, it can leave behind stubborn scale buildup that damages plumbing, reduces appliance efficiency, and makes everyday cleaning more difficult. The Crystal Quest Whole House Water Softener is designed to remove these hardness minerals before they enter your home’s plumbing system, delivering softer water to every faucet, shower, appliance, and fixture.
What Is Hard Water and Why Does It Matter?
Hard water occurs when groundwater dissolves minerals such as calcium and magnesium from rocks and soil before entering your home’s water supply. Over time, these minerals can create problems such as:
- White scale buildup on faucets and shower heads
- Spots and residue on dishes and glassware
- Dry skin and hair after bathing
- Reduced soap and detergent effectiveness
- Mineral deposits inside pipes, water heaters, and appliances
Hard water can shorten the lifespan of plumbing systems and reduce the efficiency of water-using appliances.
Advanced Ion Exchange Softening Technology
This system uses a proven process called ion exchange to remove hardness minerals from water. Inside the system is a mineral tank filled with specialized resin beads. These beads are saturated with sodium or potassium ions and naturally attract calcium and magnesium minerals in the water. As hard water passes through the resin bed:
1. Calcium and magnesium ions attach to the resin beads
2. Sodium or potassium ions are released into the water
3. The result is softened water that flows throughout your home
When the resin beads become saturated with minerals, the system automatically regenerates using a brine solution to restore its softening capacity.
Multi-Stage Water Conditioning
Stage 1 – Sediment Pre-Filtration

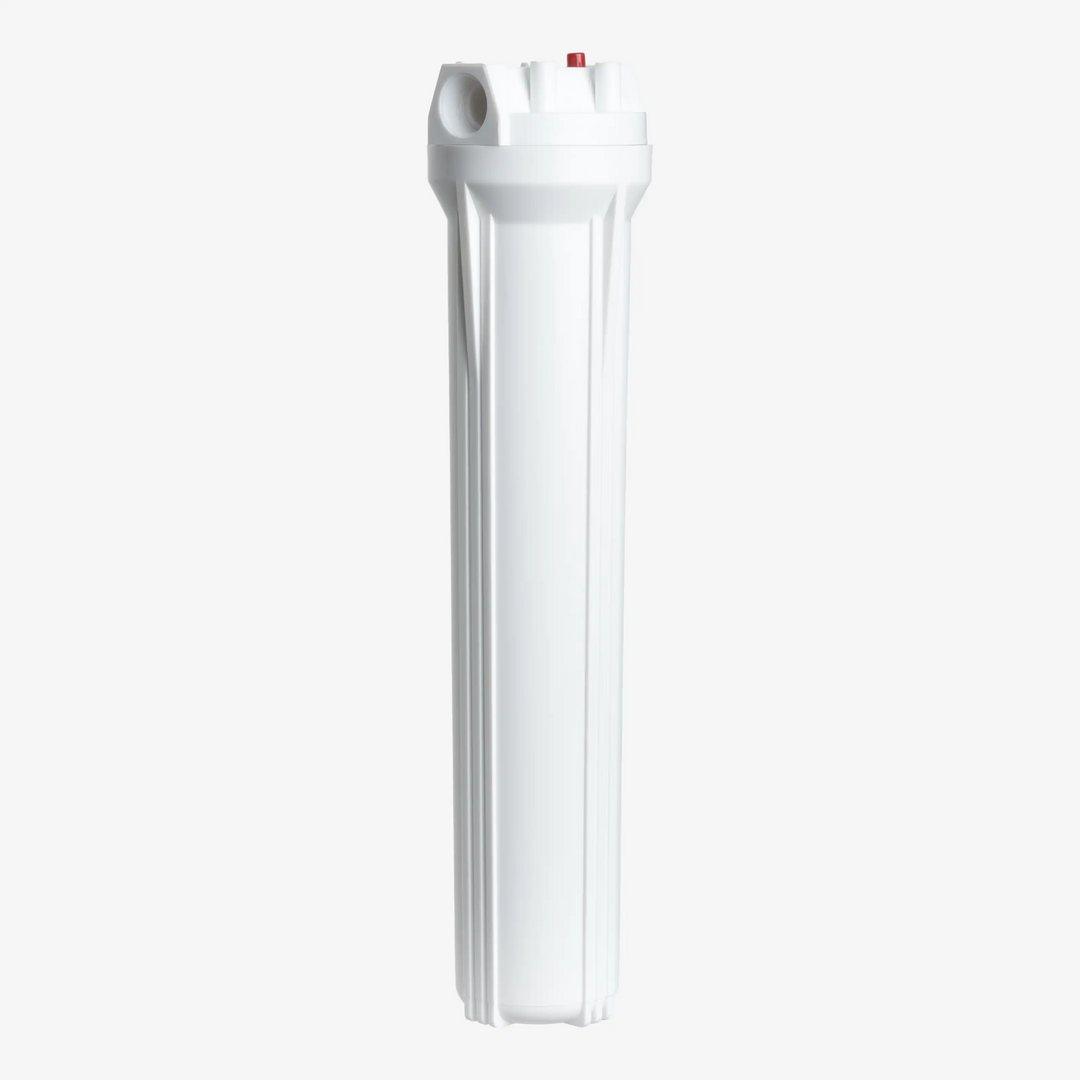

Water first passes through a 20-inch sediment filter that removes sand, rust, dirt, and other particles before treatment.
Stage 2 – Ion Exchange Softening

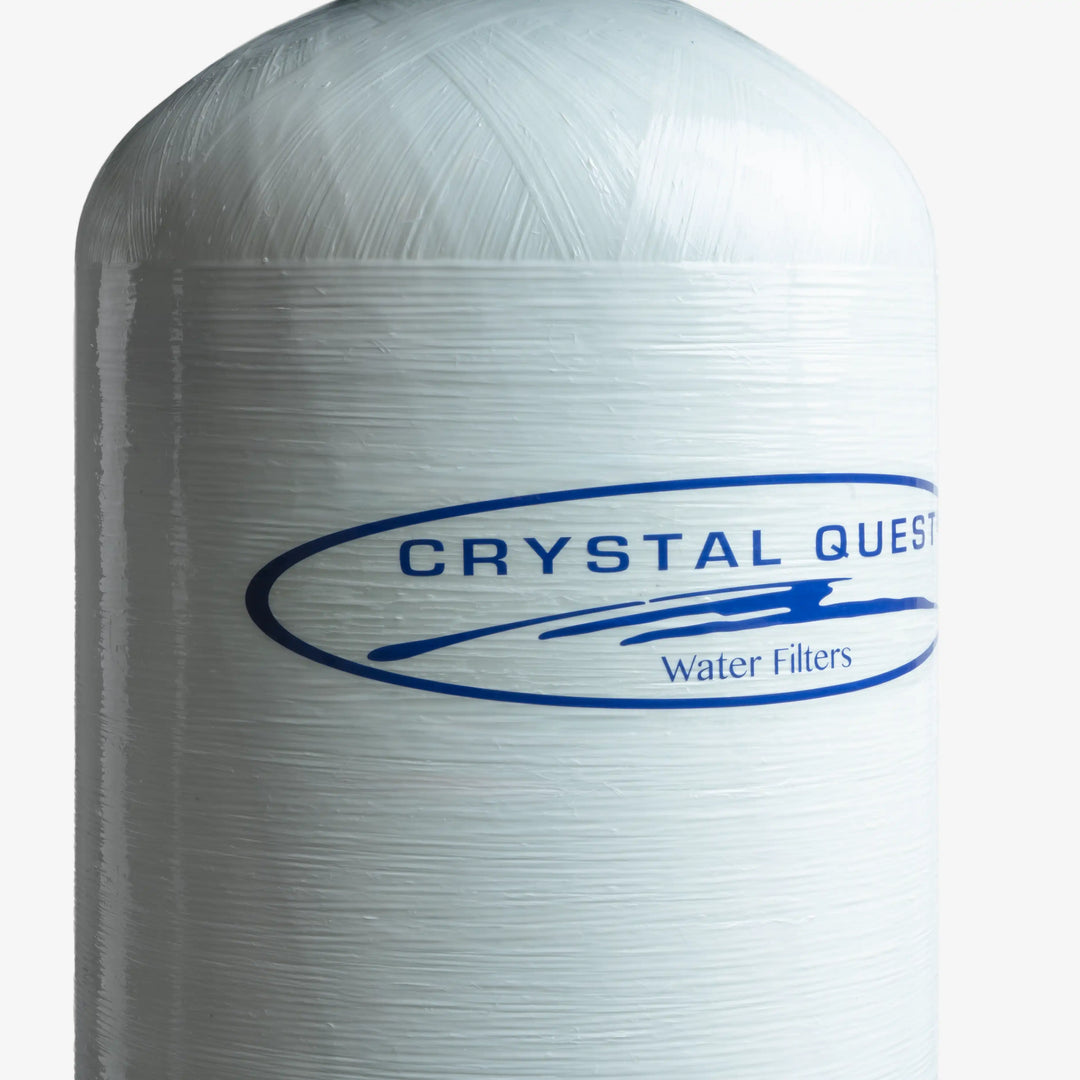

The water then enters the mineral tank where calcium and magnesium ions are removed through the ion exchange process, effectively softening the water.
Stage 3 – Carbon Post Filtration
A carbon block filter helps remove volatile organic compounds (VOCs), pesticides, and other contaminants while improving water taste and clarity.Â
System Capacity and Performance

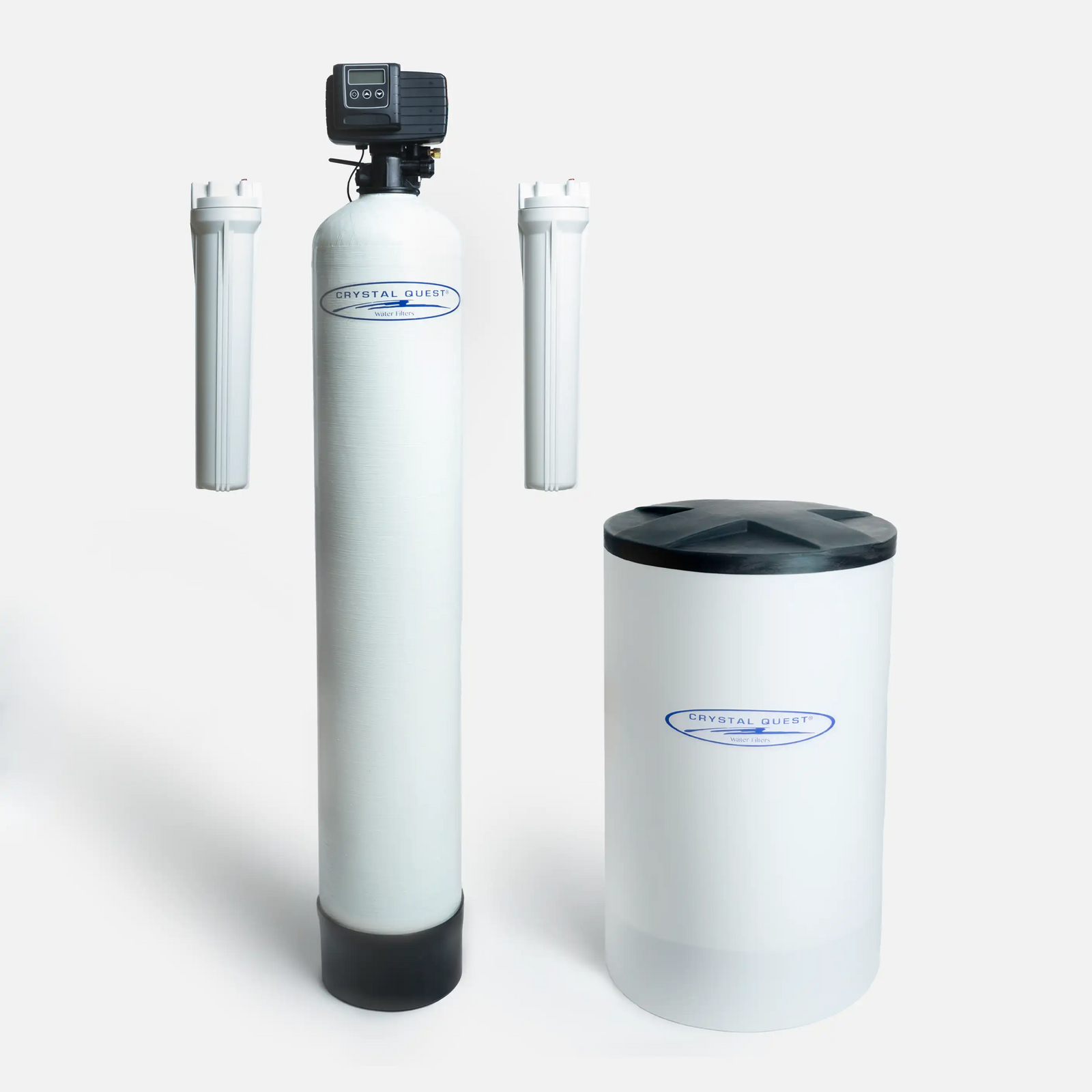

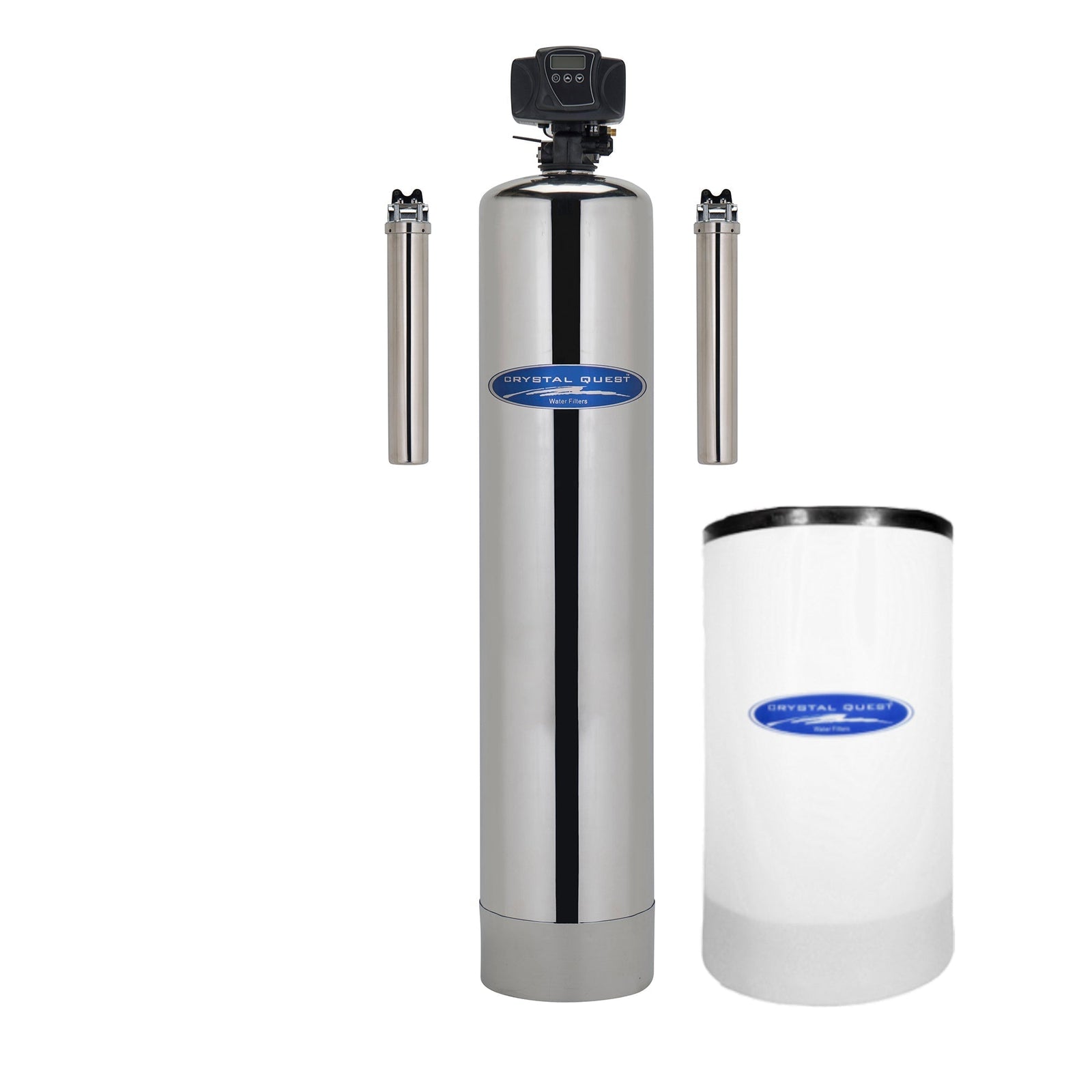

The Crystal Quest Whole-House Water Softener is designed for long-term residential performance with high flow rates to support daily household water demand. Typical system specifications include:
-
48,000-grain capacity (1.5 cu ft resin) for medium homes
-
60,000-grain capacity (2.0 cu ft resin) for larger homes
-
Flow rate: approximately 9–13 gallons per minute
-
Automatic regeneration system with brine tank
-
High-capacity resin media for long-lasting performance
These systems can treat hundreds of thousands of gallons of water before media replacement is required.
Benefits of a Whole-House Water Softener
- Reduced scale buildup in pipes and appliances
- Softer skin and smoother hair after showering
- Cleaner dishes and glassware with fewer water spots
- Improved efficiency of water heaters and appliances
- Reduced soap and detergent usage
- Longer lifespan for plumbing systems
Optional Upgrades for Complete Water Treatment

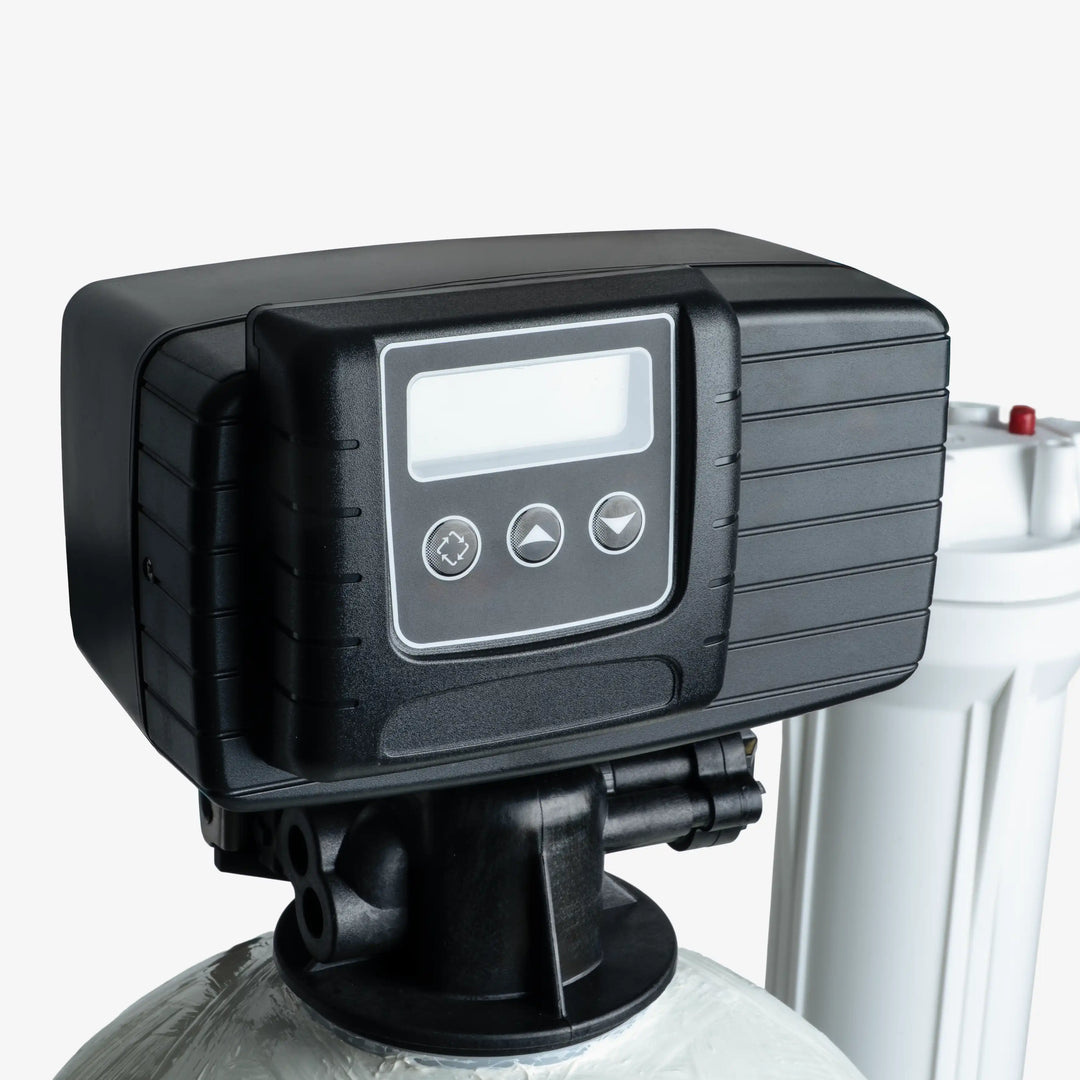

To create a more advanced water treatment system, the softener can be combined with additional filtration technologies. This system comes included with a Automatic Control Head 5600
Replacement Media
Replacement Cartridges
| Product Name |
SKU |
| Pleaded Cellulose Sediment Cartridge (2-7/8"x20") |
CQE-RC-04015 |
| Carbon Block Filter Cartridge (2-7/8"x20") |
CQE-RC-04014 |
| Specification |
1.5 ft³ |
2.0 ft³ |
| Service Flow |
9-11 GPM |
10-13 GPM |
| Pipe Size |
1" |
1" |
| Electronic Control Valve |
5600 |
5600 |
| Grain Capacity |
45,000 grains |
60,000 grains |
| PSI Range |
35-60 PSI |
35-60 PSI |
| Media Tank Size |
10" x 54" |
12" x 52" |
Space Required
(media tank only) |
12" x 64" |
14" x 62" |
| Brine Tank Size |
18" x 33" |
18" x 33" |
| Brine Tank Capacity |
130L / 36G |
130L / 36G |
Space Required
(media + brine tank) |
30" x 20" x 64" |
30" x 20" x 62" |
| Quartz |
15 |
20 |
Â
Product Manual
Whole-House-Manual.pdf
Leak Detector Manual
Â
Crystal Quest One-Year Limited Warranty
CRYSTAL QUEST® warrants your CRYSTAL QUEST® Water Filter Systems for one year from the date of purchase (except filter cartridges and UV bulbs ) against all defects in materials and workmanship, when used in compliance with the Use and Care Manual. CRYSTAL QUEST® disclaims all implied warranties, including without limitation, warranties of merchantability and fitness for a particular purpose. If for any reason the product proves to be defective within one year from the date of purchase the customer would be responsible for all shipping charges and the unit should be shipped to CRYSTAL QUEST®. The entire system will be repaired or replaced without charge for the repairs or replacement. Please package your CRYSTAL QUEST® unit carefully to avoid damage in transit. This warranty gives you specific legal rights, and you may have other legal rights which vary from state to state. CRYSTAL QUEST® assumes no responsibility for incidental or consequential damages; for damages arising out of the misuse of the product or the use of any unauthorized attachment. Some states do not allow the exclusion or limitation of implied warranties or incidental or consequential damages, so the above limitations or exclusion may not apply to you.
*Refunds of Crystal Quest products will be issued in the form of a Crystal Quest gift card.
