Trusted by 27+ Customers ★★★★★ ★★★★★ 4.6 out of 5

Whole House UV Water Sterilizer | Crystal Quest 6 GPM

Crystal Quest SKU: CQE-UV-00102

Disinfects whole-house water with UV at up to 6 GPM without chemicals.

Price
Regular price $38900
Regular price Sale price $38900
Save $-389
/
Voltage
  • In stock, ready to ship
  • Backordered, shipping soon
Shipping, Returns, & Warranties

Orders Processing: We offer fast and reliable shipping across the continental U.S., with free shipping available on orders over $200 (exclusions may apply based on brand and product type). Orders are typically processed within 1–2 business days and transit time is 4–8 business days. Larger items may ship via freight and require a scheduled curbside delivery. Please ensure your contact details are accurate at checkout. For questions about delivery timelines, shipping eligibility, or special requests, feel free to contact us directly.

Order Confirmation: As soon as you place your order, you will receive an order confirmation e-mail.  This means that we have received your order in our system.

30 Day Returns: If your order arrives damaged, we will exchange you a replacement. Our return policy cover from the date of purchase. To be eligible, items must be unused, in their original packaging, and accompanied by proof of purchase. Defective products are eligible for free returns, with options for a refund or replacement. Customer remorse returns may incur return shipping fees and restocking fees. Refunds are processed within a specified timeframe, subject to restocking fees if applicable. Late or missing refunds should be addressed with your bank or credit card company first. Exchanges may be accepted for defective or damaged items. Shipping costs for returns are typically the responsibility of the customer, except in cases of damaged products. For more details, visit our Refund Policy Page.

View our Full Brand Warranty Page Here

Request a quote

Whole house and commercial UV water treatment

6 GPM ultraviolet disinfection for residential water systems

The Crystal Quest 6 GPM UV Water Sterilizer System adds a chemical free ultraviolet treatment stage to a properly designed residential or whole house water system. Model CQE-UV-00102 combines one germicidal lamp with a 304 stainless steel reactor chamber, an audible lamp failure alert, and an LED power indicator for continuous operation.

Use this system as the final treatment stage after the required sediment filter and any water treatment needed to meet the required water quality ranges. Correct sizing, water preparation, installation, and maintenance are essential for reliable UV performance.

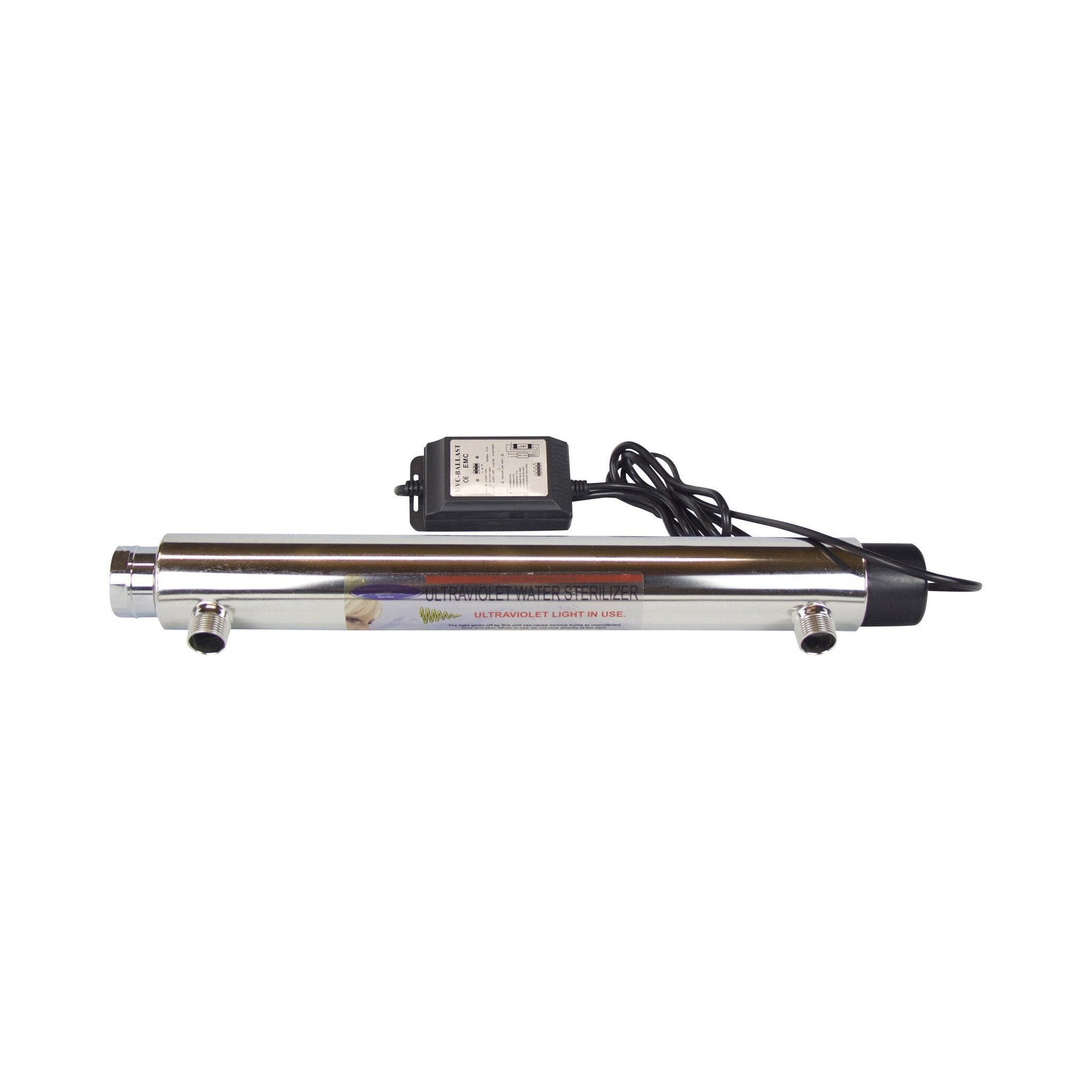

Crystal Quest CQE-UV-00102 6 GPM ultraviolet water sterilizer system
6 GPMFlow capacity
1 lampWith one quartz sleeve
304 stainless steelAxial flow reactor chamber
110V or 220VSelect the required voltage

Product fit

Who this 6 GPM UV system is for

Homes with matching water demand

Suitable for a properly sized residential water treatment system when peak water use does not exceed 6 gallons per minute.

Well water treatment

Adds a final UV treatment stage after the water has been tested and treated to meet the required limits for cloudiness, hardness, iron, manganese, tannins, and UV light transmission.

Whole house filtration

Fits whole house applications after a qualified professional confirms water demand, water quality, plumbing, electrical service, and local requirements.

Treatment sequence

How ultraviolet disinfection works in the water treatment path

Water passes through the stainless steel chamber, where one UV lamp exposes it to ultraviolet light. The system is designed for applications requiring up to 99.99% reduction of bacteria, viruses, and protozoa when it is correctly installed, operated, and maintained within the required water conditions.

1Test the waterIdentify conditions that affect UV performance.
2Complete pretreatmentCorrect sediment and other out of range conditions.
3Install the UV stagePlace the UV system after a 5 micron sediment filter.
4Distribute treated waterUse UV as the final treatment before branch lines.

Continuous treatment without chemical addition

  • Adds no treatment chemicals to the water
  • Uses an axial flow chamber made from 304 stainless steel
  • Supports horizontal or vertical installation with the lamp connector at the top when mounted vertically

Built in operating feedback

  • Audible lamp failure alert
  • LED power indicator
Diagram labeling the UV chamber, quartz sleeve, lamp, sealing rings, power unit, connector, and power supply
See how the UV chamber, lamps, quartz sleeves, sealing rings, power unit, and connections fit together.

Technical data

Crystal Quest CQE-UV-00102 specifications

Technical specifications for Crystal Quest CQE-UV-00102
Model CQE-UV-00102
Flow capacity 6 gallons per minute
Dimensions 3 × 21 inches
Reactor chamber 304 stainless steel
Lamp and quartz sleeve count 1
Power 25 watts
Electrical input 110 to 240 volts, 50 to 60 Hz; select the listed 110V or 220V product option
Electrical output 113 mA
Operating pressure range 30 to 60 psi
Maximum pressure 100 psi
UV light dose Greater than 30,000 µW/cm²
Inlet and outlet 1/2 inch male threaded plumbing connection (MNPT)
Replacement lamp CQE-UV-03102, quantity 1
Approximate lamp life 9,000 hours; replace annually for continuous operation

Specifications shown are for model CQE-UV-00102.

Installation planning

Prepare the water, plumbing, power, and service space

Water quality requirements

  • Cloudiness, measured as turbidity, below 1 NTU
  • Hardness below 7 gpg or 120 mg/L
  • Iron below 0.3 mg/L
  • Manganese below 0.05 mg/L
  • Tannins below 0.1 mg/L
  • UV light transmission above 75 percent

Treat water that falls outside these ranges before it reaches the UV system.

Site requirements

  • Indoor location protected from weather, freezing, flooding, dust, and direct sunlight
  • 5 micron sediment filter installed before the UV chamber
  • Grounded safety outlet with GFCI protection within 5 feet
  • At least 40 inches of lamp end clearance for service
  • Access for leak inspection, cleaning, and annual lamp replacement
  • Compliance with applicable plumbing, electrical, sanitation, and health department requirements
Crystal Quest whole house UV installation diagram and model specification table
Example whole house placement and the specification table for model CQE-UV-00102.

Ongoing care

Maintain UV output and service access

Keep the lamps operating

Operate the UV lamps continuously. Repeated switching shortens lamp life and interrupts treatment.

Replace lamps annually

Replace the CQE-UV-03102 lamp after approximately 9,000 hours or one year of continuous use.

Clean the quartz sleeves

Inspect and clean the sleeves as water conditions require. Replace the sealing rings annually.

Disconnect electrical power and stop water flow before maintenance. Use the installation and operation manual for complete safety and service steps.

Product documentation

Installation and operation manual

Crystal Quest ultraviolet disinfection system manual

Covers safety, water quality requirements, installation, startup, operation, lamp replacement, quartz sleeve care, and warranty information for model CQE-UV-00102.

Open installation manual

Before you buy

Common questions about the 6 GPM UV system

Does this system replace sediment filtration?

No. Install a 5 micron sediment filter before the UV system. Additional water treatment may be needed when the source water does not meet the required water quality ranges.

Can the unit be installed outdoors?

No. Install it indoors in an area protected from rain, dust, flooding, freezing, and direct sunlight.

How often are the lamps replaced?

Replace the UV lamp after approximately 9,000 hours or one year of continuous operation. Use the installation and operation manual for the complete maintenance steps.

Can the chamber be mounted vertically?

Yes. Mount the chamber horizontally or vertically. For vertical installation, place the lamp connector at the top and leave enough open space to service the system.

What must the installer supply?

Pipe, shutoff valves, and fittings are not included. Plan for union connections, a flow restrictor, and a bypass assembly.
