Description
Whole House & Commercial Water Disinfection
Powerful UV Protection for High-Flow Water Systems

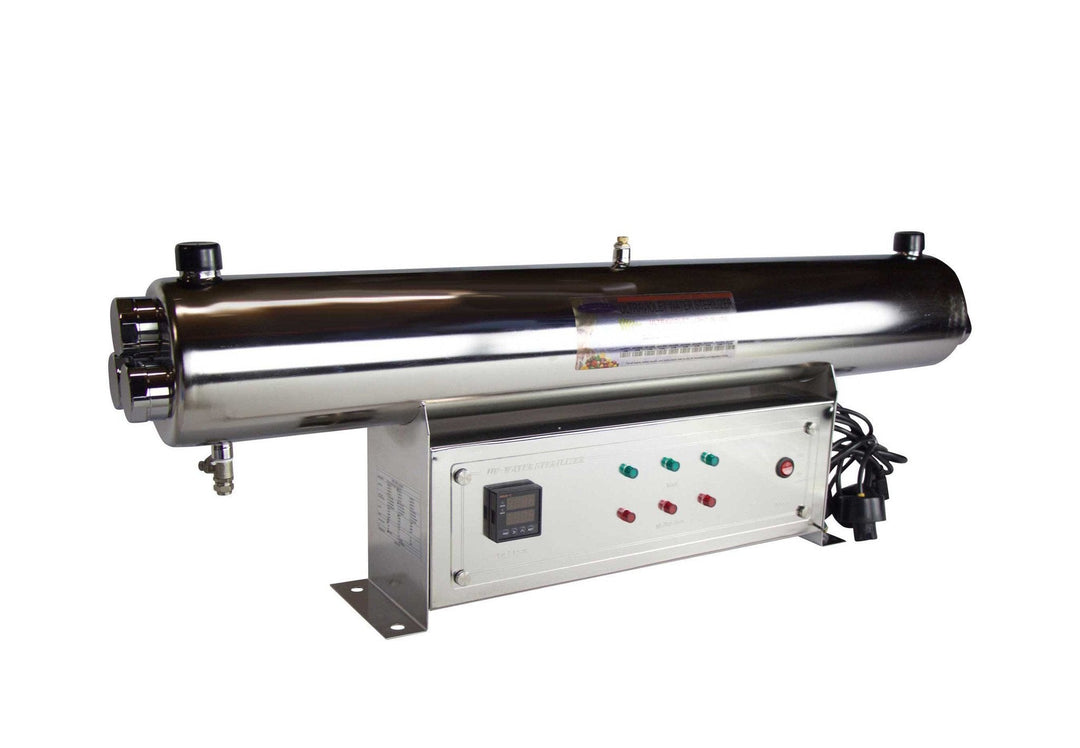

Protect your water supply with the Crystal Quest® 36 GPM UV Water Sterilizer System, a high-capacity ultraviolet disinfection solution designed to provide advanced protection against bacteria, viruses, protozoa, and other microorganisms without the use of chemicals.
Ideal for large homes, commercial buildings, restaurants, schools, farms, offices, and high-demand water treatment applications, this powerful UV system delivers continuous water disinfection while maintaining strong flow rates throughout your property.
The Final Layer of Water Protection
While filtration systems excel at reducing sediment, chlorine, chemicals, heavy metals, and other contaminants, they may not address microbiological threats that can be present in water supplies. Using high-intensity ultraviolet light, the Crystal Quest UV Sterilizer helps neutralize microorganisms by disrupting their ability to reproduce, providing an effective chemical-free disinfection process as water flows through the system.
Designed for Whole-House & Commercial Applications
With a high-flow capacity of up to 48 gallons per minute, this UV sterilizer is engineered for applications where consistent water quality and uninterrupted flow are essential.
Common applications include:
• Whole-house water treatment systems
• Well water systems
• Commercial reverse osmosis systems
• Restaurants and food service facilities
• Schools and educational facilities
• Farms and agricultural operations
• Offices and commercial buildings
• Hospitality and lodging properties
Chemical-Free Water Disinfection
• Adds no chemicals to your water
• Produces no harmful disinfection byproducts
• Maintains natural water taste and odor
• Provides continuous protection as water flows through the system
• Requires minimal ongoing maintenance
Advanced UV Sterilization Technology
Built for long-term reliability and performance, the system features:
• High-output germicidal UV lamp technology
• Heavy-duty 304 stainless steel reactor chamber
• Axial flow reactor design for maximum UV exposure
• Commercial-grade construction for continuous operation
• High-capacity treatment up to 36 GPM
When properly installed and maintained, the system is engineered to help achieve up to 99.99% reduction of bacteria, viruses, and protozoa.
Ideal Companion to Existing Filtration Systems
The 36 GPM UV Sterilizer is commonly installed after:
• Whole-house filtration systems
• Reverse osmosis systems
• Carbon filtration systems
• Water softeners
• Iron and sulfur removal systems
• Commercial water treatment equipment
This final treatment stage helps ensure water receives microbiological protection after physical and chemical contaminants have already been addressed.
Ideal For
• Large residential homes
• Well water systems
• Commercial buildings
• Restaurants and food service operations
• Schools and churches
• Farms and agricultural facilities
• Reverse osmosis treatment systems
• Anyone seeking an additional layer of water safety and microbiological protection
Specification & Features
|
Dimension
|
7"x14"x40"
|
|
Flow Rate (GPM)
|
36
|
|
Electrical
|
110-130v/50-60 Hz
|
|
Maximum Operating Pressure
|
125 psi
|
|
Lamp/Quartz Sleeves
|
3
|
|
Lamp Replacement Indicator
|
Yes
|
|
Audible Lamp Failure
|
Yes
|
|
Total Running Time
|
Yes
|
|
Visual Lamp Life Remaining
|
Yes
|
|
LED "power-on" indicator
|
Yes
|
Parts & Components
Name
|
SKU |
Quantity |
| 12-84 GPM Ultraviolet Lamp Bulb |
CQE-UV-03104A
|
3
|
Crystal Quest One-Year Limited Warranty
CRYSTAL QUEST® warrants your CRYSTAL QUEST® Water Filter Systems for one year from the date of purchase (except filter cartridges and UV bulbs ) against all defects in materials and workmanship, when used in compliance with the Use and Care Manual. CRYSTAL QUEST® disclaims all implied warranties, including without limitation, warranties of merchantability and fitness for a particular purpose. If for any reason the product proves to be defective within one year from the date of purchase the customer would be responsible for all shipping charges and the unit should be shipped to CRYSTAL QUEST®. The entire system will be repaired or replaced without charge for the repairs or replacement. Please package your CRYSTAL QUEST® unit carefully to avoid damage in transit. This warranty gives you specific legal rights, and you may have other legal rights which vary from state to state. CRYSTAL QUEST® assumes no responsibility for incidental or consequential damages; for damages arising out of the misuse of the product or the use of any unauthorized attachment. Some states do not allow the exclusion or limitation of implied warranties or incidental or consequential damages, so the above limitations or exclusion may not apply to you.
*Refunds of Crystal Quest products will be issued in the form of a Crystal Quest gift card.
