Description
The Crystal Quest® SHARP UltraFiltration (UF) System provides an advanced level of water filtration using a highly efficient 0.02-micron membrane designed to help reduce sediment, suspended particles, and many microorganisms—all without producing wastewater. SHARP UF technology adds an additional layer of protection by filtering contaminants too small for standard carbon filters to capture while maintaining excellent water flow and efficiency.
Why Choose UltraFiltration?
Many households want cleaner, healthier water but don't want the water waste commonly associated with reverse osmosis systems. SHARP UF technology offers an excellent balance between performance and efficiency.
The Best of Both Worlds
In systems that include both UF and RO, the SHARP UltraFiltration membrane acts as a protective pre-treatment stage. By reducing sediment and suspended solids before water reaches the RO membrane, it helps improve filtration efficiency, reduce membrane wear, and extend overall system life.
Ideal For
• Homes seeking advanced filtration without water waste
• Families wanting cleaner, better-tasting water
• Offices and breakrooms
• Water coolers and bottleless systems
• Users looking for an alternative to basic carbon filtration
|
TURBO UF |
TURBO UF/RO |
SHARP UF |
SHARP UF/RO |
Hybrid UF |
Hybrid UF/RO |
| No Plastic Jugs |
 |
|
|
|
|
|
| Cold Water |
|
|
|
|
|
|
| Hot Water |
|
|
|
|
|
|
| Child Safety for Hot Water |
 |
|
|
|
|
|
| UltraFiltration (UF) |
|
|
|
|
|
|
| Reverse Osmosis (RO) |
|
|
|
|
|
|
| Waste Water |
|
|
|
|
|
|
| Stainless Steel Holding Tank |
|
|
|
|
|
|
| Polypropylene Holding Tank |
|
|
|
|
|
|
|
Specifications
- Weight: 48 lbs.
- Premium Sharp weight: 59 lbs.
- Floor Sharp dimensions: (D) 13” x (W) 13” x (H) 42”
- Premium Sharp dimensions: (D) 13” x (W) 13” x (H) 50”
- Heating power: 500W 6.2 Amps
-
Cooling power: 112W 2.4 Amps - TOTAL NEEDED 612W 8.6 Amps
- Hot water tank volume: 0.5 gal/heating
- Cold water tank volume: .54 gal
- Cooling capacity: 1.95 gal per hour 35-50°F
- Heating capacity: 1.5 gal per hour 185°F
- Voltage: 110V-120V 50/60Hz
- Pressure range: 30-60 psi (2.1-4.1bar)
- Optimum service flow: 0.50 GPM at 60 psi (1.1lpm at 4.1 bar)
|
Features
- Built-in filtration system
- Available in 2 Styles
- Easy to use
- Separate hot/cold power switch
- Automatic hot and cold water temperature control
- Automatic heating shut-off when hot temperature is reached
- Automatic float valve
- High efficiency sealed compressor cooling system
- Type 304 stainless steel hot and cold water tanks

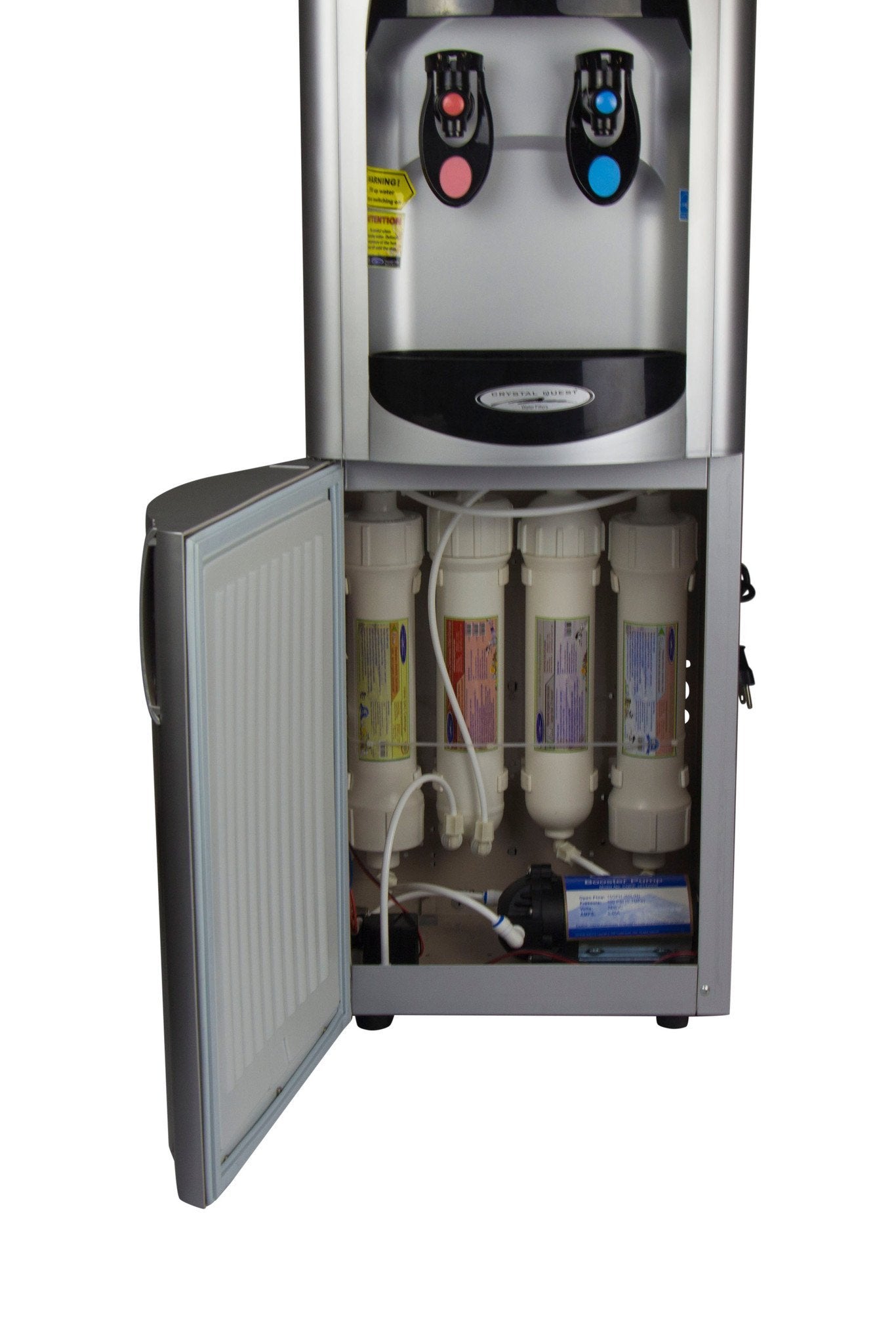

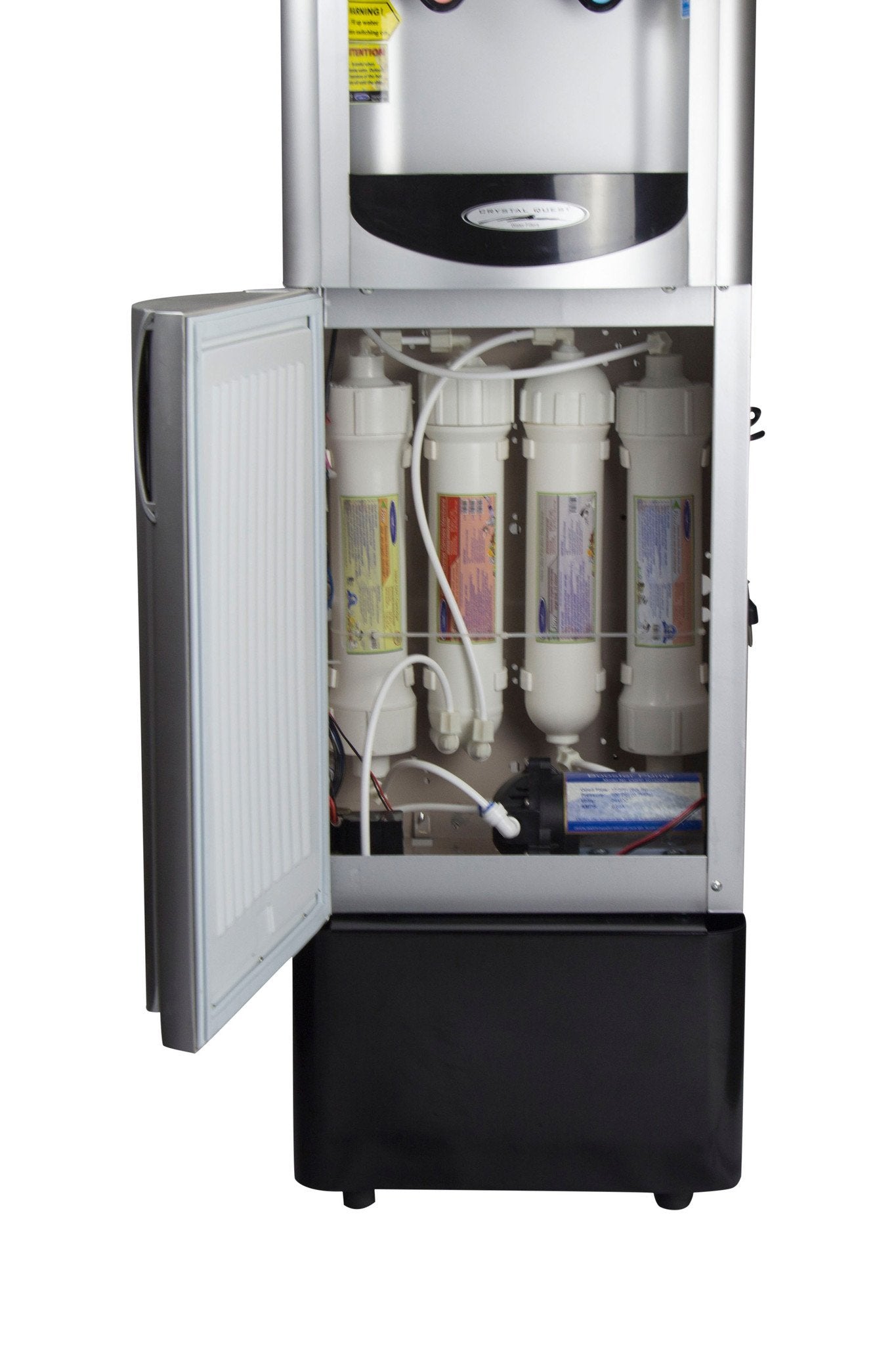

- Easy access front panel for service of filter system
- Easy to clean
- Child Safety on the HOT water dispenser
|
Specifications
• Floor weight: 48 lbs. / 122kg
• Premium floor weight: 59 lbs. / 127kg
• Floor dimensions: 13”D x 13”W x 42”H / 33cm D x 33cm W x 107cm H
• Premium floor dimensions: 13”D x 13”W x 50”H / 33cm D x 33cm W x 127cm H
• Heating power: 500W, 6.2 amps
• Cooling power: 112W, 2.4 amps
• Hot water dispensing temperature: 176-194°F / 80-90°C
• Cold water dispensing temperature: 35-50°F / 1.7-10°C
• Hot water tank volume: 0.5 gallon / 1.9 liters
• Cold water tank volume: .54 gallon / 2.04 liters
• Heating capacity: 1.4 gallons per hour / 5.3 lph
• Cooling capacity: 1.95 gallons per hour / 7.4 lph
• Voltage: 110-120V / 220-230V-50/60 Hz
Replacement Cartridges
| Product Name |
SKU |
| GAC Cartridge (Inline) |
CQE-RC-04038
|
| UF Cartridge (Inline) |
CQE-RC-04039
|
| SMART Cartridge (Inline) |
CQE-RC-04040
|
| 50 GPD RO Membrane |
CQE-RC-04041 |
Product Manual
Water Cooler Manual
Product Brochure
WaterCoolers-SHARP+RO
