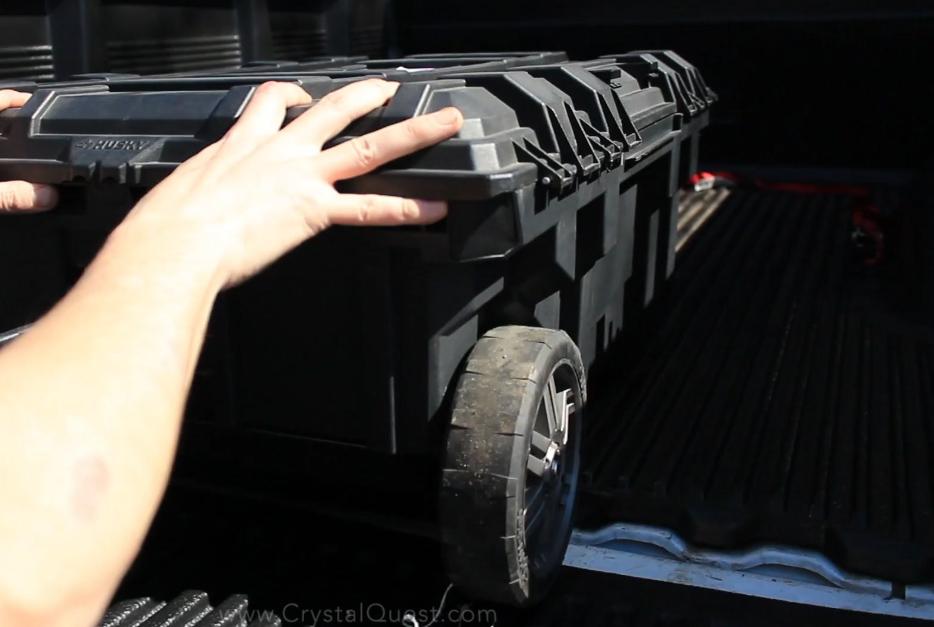

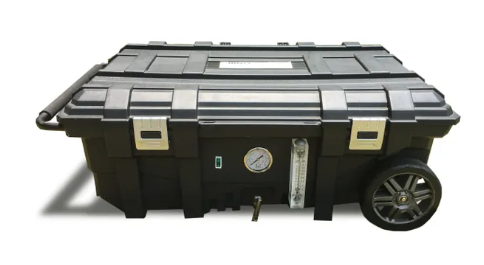

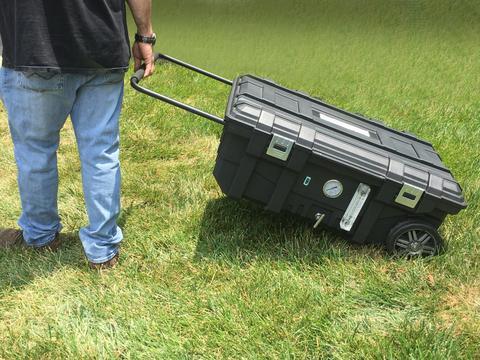

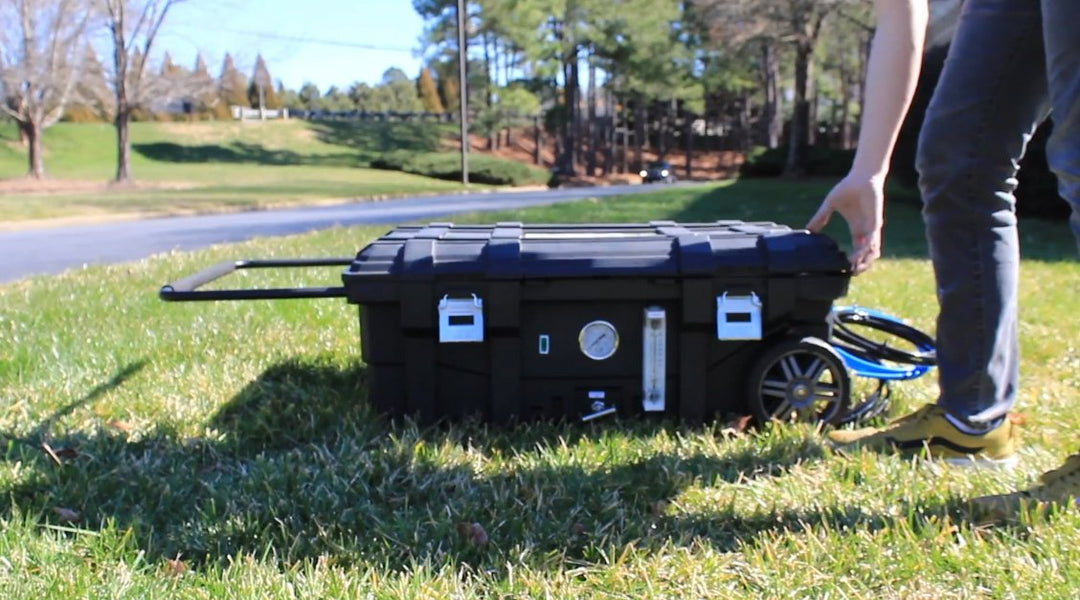

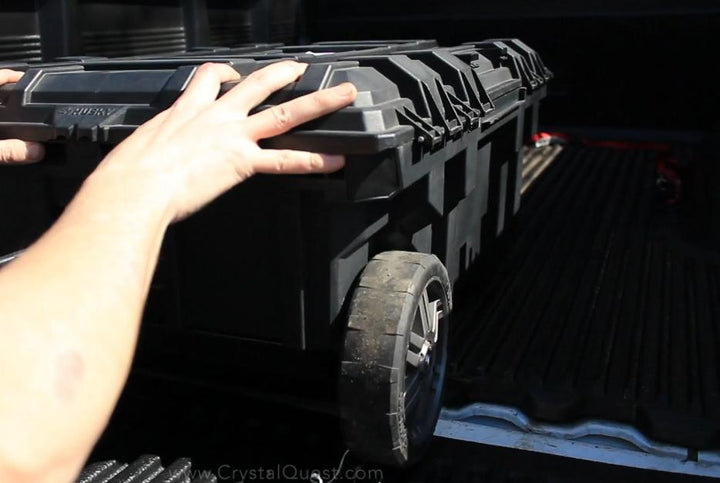

The Crystal Quest® Off-Grid Portable Reverse Osmosis Water System is a self-contained water purification solution designed for locations where clean drinking water isn't readily available. Combining advanced reverse osmosis technology, multi-stage filtration, and mineral remineralization, this portable system can help transform water from natural sources into cleaner, better-tasting drinking water. Compact, mobile, and powered by solar energy and battery backup, it's an ideal companion for off-grid living, camping, boating, emergency preparedness, disaster response, and remote work environments.
Advanced Multi-Stage Water Purification
This all-in-one system combines:
• Sediment filtration to help reduce dirt, sand, and suspended particles
• Carbon block filtration to help reduce tastes, odors, and organic contaminants
• Reverse osmosis membrane technology for advanced contaminant reduction
• Remineralization media to restore beneficial minerals and improve taste
Designed for Off-Grid Operation
Features include:
• Portable all-in-one carrying case
• Solar charging kit
• Integrated battery power system
• Booster pump for improved performance
• Included tubing and connection accessories
• Compact, lightweight design for transport and storage
Simple Setup
- Position the solar panel in direct sunlight
- Connect the included tubing
- Place intake and discharge lines into the appropriate water source
- Turn on the system
- Begin producing purified drinking water
Ideal Water Sources
• Lakes
• Rivers
• Streams
• Ponds
• Collected rainwater
• Emergency freshwater supplies
Ideal For
• Off-grid homes and cabins
• Camping and overlanding
• RV travel
• Boating and marine use
• Emergency preparedness
• Disaster relief and recovery
• Remote job sites
• Survival and preparedness applications
Specifications
| Model |
Rover |
| Gallons Per Day |
200 |
| Dimensions (approx.) |
35' x 22.5' x 13.75 |
| Weight (approx.) |
55 Ibs. |
| Element Size (in.) |
2521 TFC HF1 |
| Elements (qty.) |
1 |
| Pressure |
150 psi |
| Motor & Pump |
Diaphragm |
| Voltage |
12/24 DC |
| Hertz |
60 |
| Feed Connection |
3/8' |
| Product Connection |
3/8' |
| Waste Connection |
3/8' |
| Minimum Feed (gpm) |
0 |
| Recovery* |
33% - 50% |
