At a glance
FormatInline water filtration system.
PlanningMatch the connection type and replacement component to the exact model.
Service matchUse replacements and accessories specified for the exact model on this page.
Description
Targeted Arsenic Reduction for Refrigerators, Ice Makers & Beverage Equipment

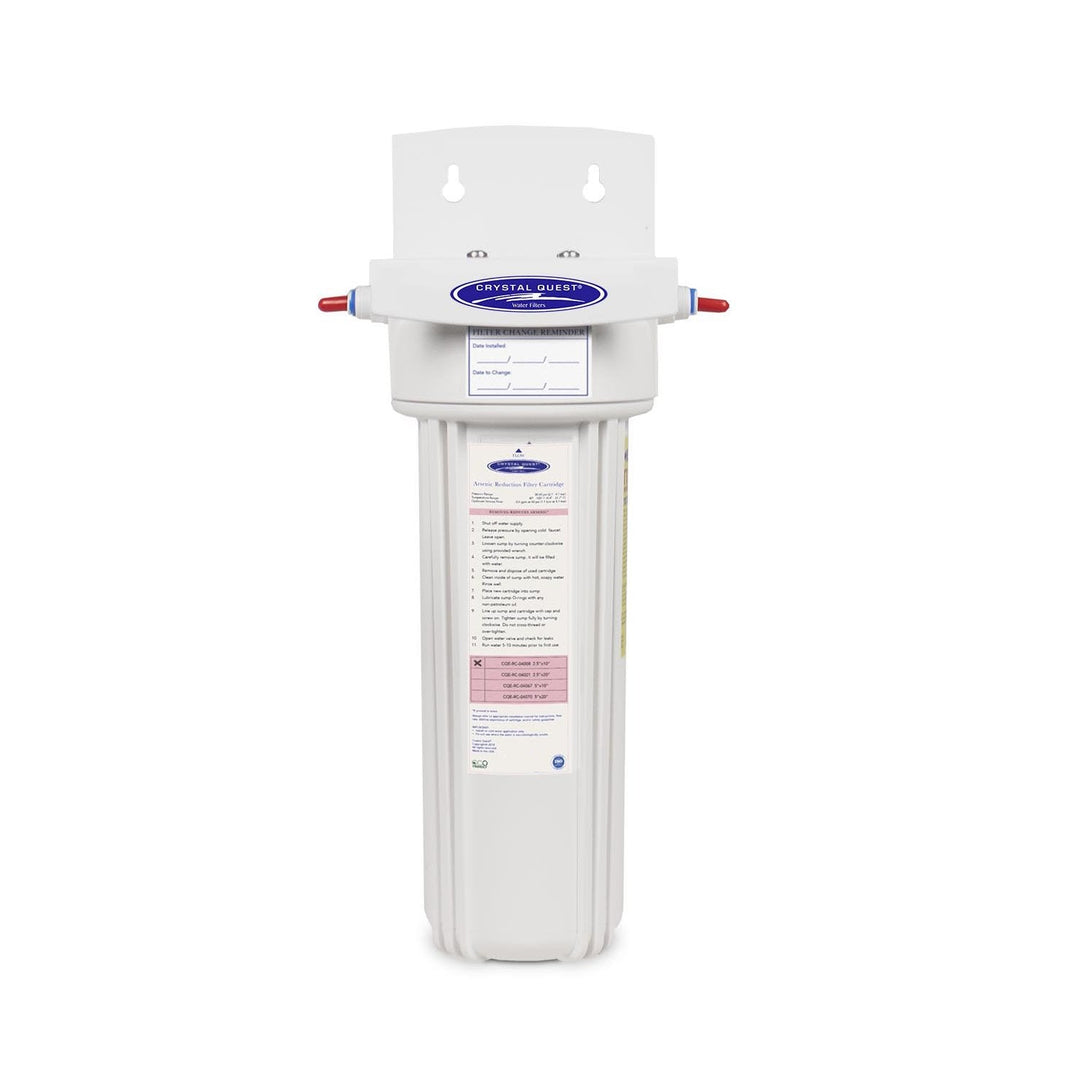

The Crystal Quest® Arsenic Removal Refrigerator & In-Line Water Filter System CQE-RF-00706 is designed to provide targeted arsenic reduction for refrigerators with water dispensers and ice makers, while also supporting a wide range of residential and commercial water applications.
Compact and easy to install, this in-line filtration system helps improve water quality before it reaches your refrigerator, ice machine, coffee maker, water cooler, or drinking fountain—delivering cleaner water and better-tasting ice and beverages.
Specialized Arsenic Reduction Technology
At the heart of the system is a high-performance arsenic-selective resin cartridge specifically engineered to help reduce arsenic from drinking water.
Ideal for:
• Refrigerators with water dispensers
• Refrigerator ice makers
• Commercial ice machines
• Coffee and espresso equipment
• Water coolers
• Drinking fountains
• Specialty beverage equipment
Compact In-Line Design
The space-saving design installs directly into the water supply line without requiring a separate faucet or large filtration system. Features:
• High-pressure quick-connect fittings
• Compatible with 1/4" O.D. copper or plastic tubing
• Optional 3/8" connection available with conversion package
• Easy installation and cartridge replacement
Benefits
• Helps reduce arsenic from drinking water
• Improves water quality for ice and beverages
• Better-tasting water, coffee, tea, and ice
• Compact design fits behind refrigerators and equipment
• Suitable for residential and commercial applications
• Reliable, long-lasting filtration performance
Filtration Capacity
• Up to 1,000 gallons of filtration capacity*
*Actual cartridge life varies based on arsenic concentration, arsenic type, water quality, and daily water usage.
Specifications
Min Operating Pressure: 20 psi (pounds per sq. in.)
Max Operating Pressure: 60 psi (pounds per sq. in.)
Min Operating Temperature: 40 degrees F
Max Operating Temperature: 90 degrees F
Max Flow Rate: 0.3-0.5 gallons per minute
- Dimensions: 5"L x 14"H (10"+4" to change cartridge) x 5"W
- Weight: 6 lbs.
- Suggested flow rate: 0.3-0.5 or less gallon per minute
Replacement Cartridges
| Product Name |
SKU |
| Arsenic Filter Cartridge (2-7/8“x9-3/4”) |
CQE-RC-04008 |
Product Manual
Inline-Water-Filter-Manual.pdf
