Description
Restore Mineral Balance & Enjoy Better-Tasting Water

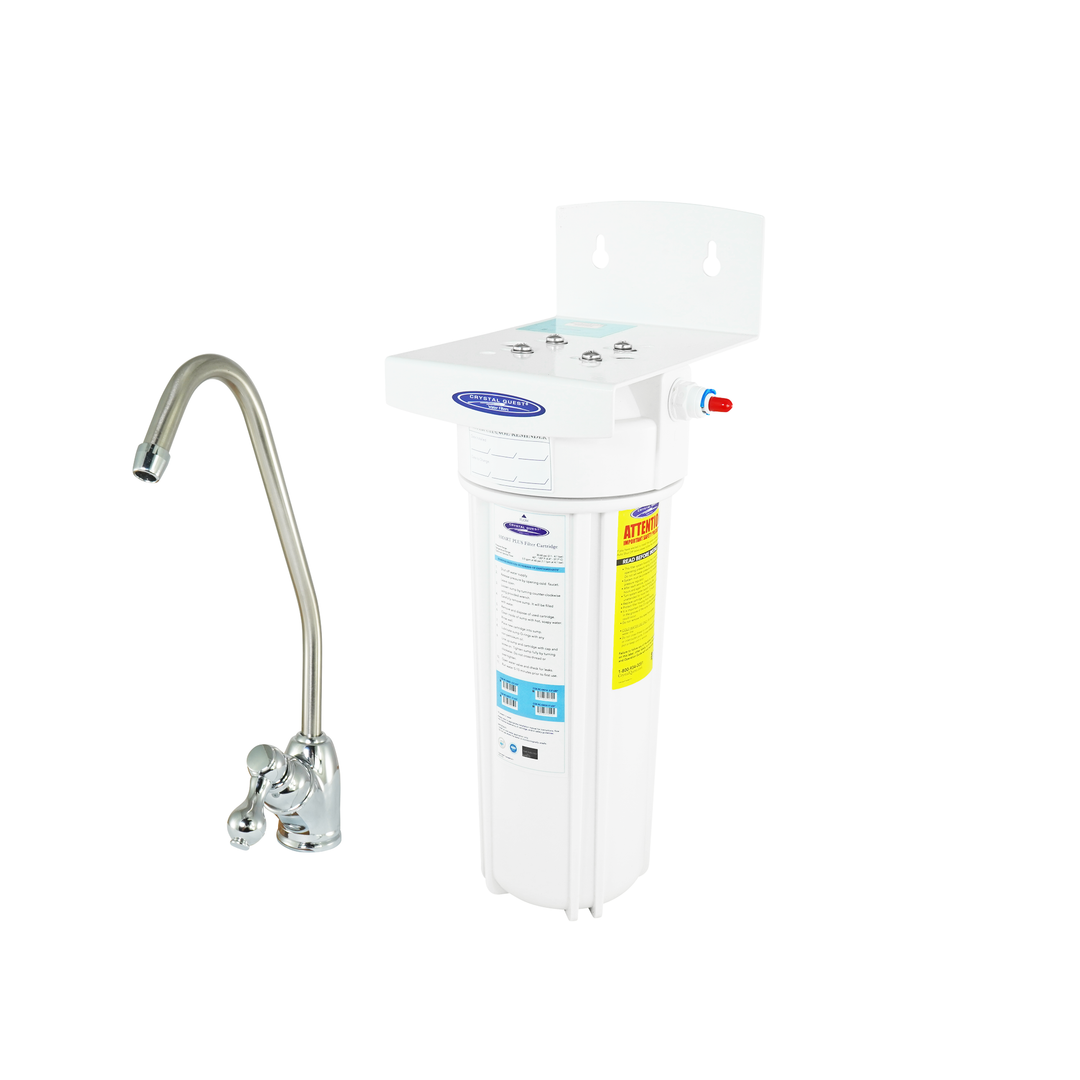

The Crystal Quest® Alkalizing SMART Under Sink Water Filter System is designed to improve water quality while naturally raising pH and restoring beneficial minerals.
Advanced Alkalizing & SMART Filtration
Water passes through an alkalizing media blend made from naturally occurring calcium and magnesium minerals that gradually dissolve into the water, helping raise pH levels and improve overall mineral balance. The system also incorporates Crystal Quest® SMART filtration technology featuring activated carbon, Eagle Redox Alloy® media, and ion-exchange materials to help reduce:
• Chlorine and chloramines
• Heavy metals
• Pesticides and herbicides
• Pharmaceutical by-products
• Petroleum-based contaminants
• Unpleasant tastes and odors
Benefits
• Naturally increases water alkalinity
• Restores beneficial calcium and magnesium minerals
• Improves taste and overall water quality
• Helps reduce chlorine, heavy metals, and other common contaminants
• Dedicated drinking water faucet included
• Compact under-sink installation saves counter space
Long-Lasting Performance
• Up to 10,000 gallons of filtration capacity*
• Typical lifespan of 1–3 years, depending on water quality and usage
*Filter replacement is recommended when water flow noticeably decreases.
Installation Information
The system includes a dedicated faucet and installation hardware.
• Saddle valve recommended for hard copper plumbing
• T-valve recommended for flexible supply lines
Recommended Protection
For added peace of mind, Crystal Quest recommends installing a Leak Detector/Flood Prevention Valve, which can automatically shut off the water supply if a leak is detected.
Ideal For
• Homes and apartments
• Offices and breakrooms
• Wellness-focused households
• Anyone seeking cleaner, mineral-enhanced alkaline water from the tap
- Please note: When considering installation, if current under sink plumbing is hard copper tubing the saddle valve would be used; for flex tubing the T-valve would be required. While ordering a prompt will require that an installation valve be specified in order to progress through the order entry screen.
Specifications
| Dimensions |
5"L x 14"H x 5"W |
| Weight |
6 lbs. |
| Connection Size |
1/4" |
| Min Operating Pressure |
20 psi (pounds per sq. in.) |
| Max Operating Pressure |
60 psi (pounds per sq. in.) |
| Min Operating Temperature |
40 degrees F |
| Max Operating Temperature |
90 degrees F |
| Max Flow Rate |
0.3-0.5 gpm (gallons per minute) |
*Height is 10” (4” added for room to change cartridges)
Replacement Cartridges
|
Alkalize/Ionizer, Mineralizer & Oxidation +
SMART Filter Cartridge (2-7/8” x 9-3/4”)
|
CQE-RC-04146 |
Product Manual
Undersink-Manual.pdf
