Echo Revive Full User Manual

Meet the Echo Revive™ Hydrogen Water Bath Machine

The Echo Revive™ Hydrogen Water Bath Machine uses advanced electrolysis technology to generate high-purity hydrogen by separating water molecules. Designed for efficiency and ease of use, it infuses your bath with hydrogen-enriched water to elevate your relaxation and self-care routine.

Built with advanced SPE and PEM technology, the Revive produces hydrogen efficiently while maintaining reliable, automated performance. Integrated safety systems monitor water levels, temperature, and power usage to help ensure safe operation.

Designed for Comfort & Convenience

• Premium Hydrogen Generator – Advanced SPE & PEM membrane technology delivers efficient hydrogen production.

  • Many hydrogen bath machines produce only 1–1.5 PPM, but ours delivers a powerful 3 PPM—double or even triple the amount found in most competitors. This means more hydrogen absorption for better wellness benefits.

• Portable Design – Built-in handle and locking wheels allow for easy movement and placement.

• 6" Touchscreen Display – Intuitive controls provide real-time feedback on settings, water levels, and maintenance reminders.

• Quiet Operation – Engineered for smooth, low-noise performance so you can relax without interruption.

• Lab Tested & Quality Approved – Built to meet strict quality standards for performance and reliability. Our machine is built with high-quality, durable materials designed for longevity. Unlike cheaper models that may break down quickly, our construction ensures reliability and long-term performance.

Thank you for purchasing the Echo Revive Hydrogen Water Bath Machine. Please read this manual carefully before use to ensure proper operation and longevity. Keep this manual and the warranty card in a safe place for future reference.

How the Echo Revive™ Works

The Echo Revive Hydrogen Water Bath Machine operates by electrolyzing high-resistivity water (> 2 MΩ·cm) to produce hydrogen and oxygen.

1. Water is added to the anode compartment of the electrolysis tank. Once powered on, the machine decomposes water molecules into hydrogen ions (H+) and hydroxide ions (OH-):
   • Anode Reaction: OH- ions release oxygen (O2), which exits through the oxygen outlet, carrying some water back to the tank for reuse.
   • Cathode Reaction: Hydrogen ions (H+) pass through the SPE ion membrane under electric force, gain electrons, and form hydrogen gas (H2).
2. The hydrogen gas, containing trace amounts of water, passes through the gas-water separator to remove excess water before exiting through the hydrogen outlet.

Backed by Research

1. Hydrogen-Water Bathing and Psoriasis:

   • Title: "Positive effects of hydrogen-water bathing in patients of psoriasis and parapsoriasis en plaques"
   • Summary: This study found that hydrogen-water bathing significantly improved patients with psoriasis, with 24.4% of participants achieving at least a 75% improvement after 8 weeks.
   • Link: Nature.com

2. Systematic Review on Hydrogen-Rich Water:

   • Title: "Hydrogen Water: Extra Healthy or a Hoax?—A Systematic Review"
   • Summary: This comprehensive review examined various studies on hydrogen-rich water, highlighting its potential antioxidant and anti-inflammatory effects, as well as benefits related to exercise capacity, liver function, and cardiovascular health.
   • Link: PubMed Central

3. Health Benefits Overview:

   • Title: "Hydrogen Water: Health Benefits and Side Effects"
   • Summary: This article discusses various studies suggesting that hydrogen water has antioxidant and anti-inflammatory effects, among other health benefits.
   • Link: WebMD

4. Electrolyzed Hydrogen Water Benefits:

   • Title: "Health Benefits of Electrolyzed Hydrogen Water: Antioxidant and Anti-inflammatory Activities, Contribution of Molecular Hydrogen to These Effects"
   • Summary: This study reviews electrolyzed hydrogen water's antioxidant and anti-inflammatory activities and its potential health benefits.
   • Link: MDPI

Below are a few studies that have been done on the affects of a hydrogen bath:

• 🔗Hydrogen Water Bathing - Positive effects on Psoriasis and Parapsoriasis
• 🔗Effects of Hydrogen-rich water bath on Visceral Far and Skin Blotch
• 🔗Hydrogen-Rich bath improves antioxidant capacity and inflammation levels in human serum
• 🔗Repetitive Bathing and Skin Poultice with Hydrogen-Rich Water Improve Wrinkles and Blotches

Echo Revive™ Safety Information

To ensure safe and optimal use of your hydrogen water machine, please follow these guidelines:

1. Performance Maintenance:
   • Frequently rinse the unit and change the water to maintain performance and extend the machine's lifespan.
2. Environmental Precautions:
   • Operate only in well-ventilated spaces; do not use in small, confined areas.
   • Keep the machine away from open flames, heaters, or other heat sources.
3. Water Requirements:
   • Use only distilled water. Tap water or impure water can damage the electrolysis cell.
   • Water Levels: The electrolytic tank must not run dry during transport or operation.
4. Transport and Handling:
   • Drain the water completely before transporting the machine.
   • Slight water leakage during shipping is normal due to pre-shipment testing.
5. Model Variations:
   • Units may have slight variations in color and appearance. Instructions in this manual apply to all models, including the H2-2800 demonstration unit.
6. Prohibited Actions:
   • Do not disassemble or modify the machine.
   • Avoid making exaggerated or misleading claims about the product’s capabilities.
7. Repairs and Maintenance:
   1. Always turn off and unplug the machine before opening the chassis or performing repairs.
   2. Avoid working on the machine while it is powered on to prevent electric shock.
   3. Fuse Replacement:
      1. Turn off the machine and unplug it before replacing the fuse.
      2. Use only the specified fuse model (F6A L220V). Using incorrect models may lead to fire hazards.
      3. Fuse Location: above the on/off switch and below the plug port, there should be a black covering you can remove. This is where the fuse is located.
8. Prior filtration to the Echo Revive is not required, but is preferred so you do not have chlorine present in your bath.
9. Disclaimer:
   • The hydrogen water products described in this manual are not medical devices. Use the product responsibly and in accordance with the instructions in this manual.

Following these precautions ensures your hydrogen water machine's safe operation and longevity.

What's Included with the Echo Revive™ Inhalation Machine

Echo Revive™ Inhalation Machine Product Specifications

• Model: ZHDY-W13-A
• Voltage: AC 110-220V, 50Hz
  • Power Supply: The generator requires a 110V, 50–60 Hz power source.
  • Grounding: Ensure the power connection has a reliable ground to prevent electrical hazards.
• Power: <480 W
• PPM: Up to 1.6 ppm
• Weight: 40 lbs. (15 kg)
• Hydrogen Cycle Time: 15, 30, or 45 min. cycles

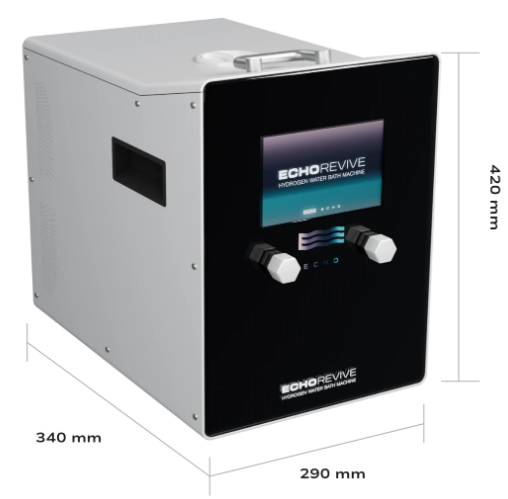

• Product Dimensions: 15 x 11 x 15 in.
• Tank Volume: 1.5 L
• Reaction Water Consumption: +/- 70ml
• Water quality Demand: TDS <30
• 6" touch screen display
• Shipping Dimensions: 20 x 14 x 21 in

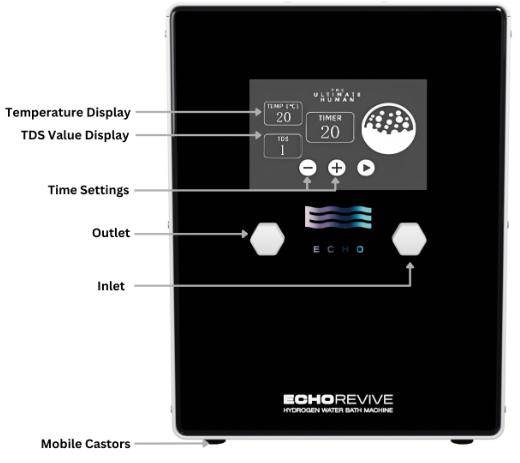

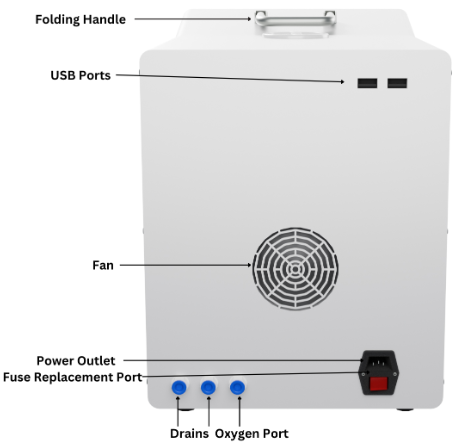

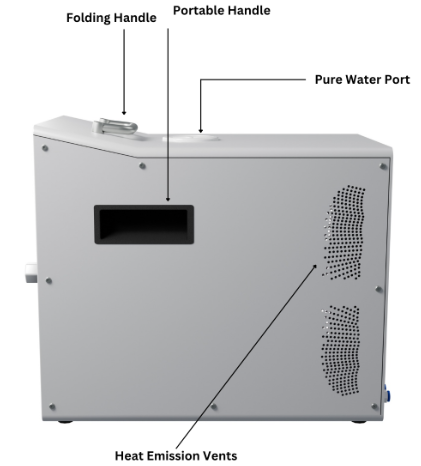

Side View

The machine's electrical control system is divided into three main components: the electrolytic power supply, control board, and display panel. Here’s how to operate it:

1. Power On:
   • Turn on the power switch to activate the machine. The system enters standby mode, and the touch screen will illuminate.
2. Water Level Check:
   • Before proceeding, ensure the water tank is filled with pure water above the minimum level.
3. Timer Adjustment:
   • Use the Increase (+) or Decrease (-) keys on the touch screen to set the desired operating time.
4. Start Operation:
   • Press the Start/Pause button to begin hydrogen production. The hydrogen flow meter will display real-time flow and release hydrogen from the outlet.
5. Safety Features:
   • The machine includes built-in protections to ensure safe operation:
     • Water Shortage Protection: Stops operation if water levels are too low.
     • High-Temperature Protection: Prevents overheating by pausing operation if internal temperatures rise excessively.
     • Power Limitation Protection: Limits power usage to avoid overloading the system.

Echo Revive™ Inhalation Machine Usage Guidelines

Usage Guidelines

You can use this as often as you would like, Studies showed benefits after using only 15 minutes 2-3 times a week. The Machine has 15, 30, 45, 60 minute intervals. We ask that you don't run the machine longer than 60 minutes at a time, but you are welcome to stay in the hydrogenated bath for as long as you would like.

• Hydrogenate water for 15 to 30 minutes before taking a bath.
• you can get into the Hydrogen Bath while the Echo Revive is running just keep in mind skin and other particles could clog the unit.. You can also let it run for the lotted amount of time and once it ends, proceed to get into the tub.
• Avoid operating the machine for longer than 60 minutes at a time to prevent damage.
• The release of hydrogen is going to be faster than the water bottles. According to the Kikuchi et al studies (2006 and 2007) studies, the concentration starts dropping as soon as electrolysis ceases and drops to around 0 within 1-3 hours. This was at a temperature range within 15-35 C (59-95 F)
• Don’t run it longer than 60 minutes due to overheating the unit. However, once the 60 minutes is up, you can be in the water for as long as you would like. According to the Kikuchi et al studies (2006 and 2007) studies, the concentration starts dropping as soon as electrolysis ceases and drops to around 0 within 1-3 hours. This was at a temperature range within 15-35 C (59-95 F)

Ice Baths - Yes you can use the revive in an ice bath - hydrogen lasts longer in cold water

additives - We tested bath bombs made with organic dye and Epsom salt, and they didn’t seem to bother the machine at all! Just make sure to give your Echo Revive™ a good rinse afterward. You can do this by draining the bath, filling it up with clean water, and letting the machine run again to flush everything out. A quick heads-up – avoid using body wash while the machine is running. But once it’s finished, you’re free to lather up. And remember, hydrogen enhances whatever’s in your water. So, if you’re using unfiltered water or products with questionable ingredients, your body may absorb those contaminants at a higher rate. That’s why it’s super important not to use products with artificial dyes or toxins when using your Echo Revive™ – your body deserves the best!

Echo Revive™ Set Up Guide

1. Unpack & Inspect

Before setting up your machine, take a moment to inspect everything.

Check for Damage
Inspect the packaging and the unit for any visible signs of shipping damage.

Verify Contents
Refer to the packing list and confirm that all components and spare parts are included.

Report Any Issues
If anything is damaged or missing, please contact the transportation company and the manufacturer as soon as possible for assistance.

2. Setup

The Echo Revive™ is designed for quick setup with no installation required. Follow the steps below to get started.

Step 1 — Prepare the Environment

Place the machine in a location that meets the recommended operating conditions outlined in this manual, including:

• Ventilation: Do not use the hydrogen generator in a confined, unventilated space.
• Placement: Ensure the generator is positioned horizontally with the front panel facing the operator for ease of use.
• Environment:
  • Operating temperature: 0–40°C
  • Humidity: Less than 85%
  • Avoid direct sunlight and open flames.
  • Ensure good ventilation and proper grounding of the power supply.

Step 2 — Fill the Water Tank

• Water Tank Preparation:
  • Add distilled water to the tank before first use.
  • Allow the distilled water to settle for 5 minutes before turning on the machine.
• Water Quality: Use soft water only (e.g., deionized or secondary distilled water). Ensure the water resistivity exceeds 2 MΩ·cm. Using unqualified water can cause ion deposits, block electrodes, and damage the motor.

🎥How to fill the Water Tank

1. Open the top cover of the water tank.

2. Add 7.5 cups of deionized water or secondary distilled water.

3. When viewing the machine from the front, you will see gaps on the left and right sides of the tank.

4. Fill the tank until the water level reaches the bottom of these gaps.

5. Close the top cover securely.

⚠️ Important: Always fill the water tank before turning on the machine to avoid damage to the electrolytic system.

Step 3 — Connect the Power

1. Locate the power cord in the spare parts kit.

2. Connect the power cord to the machine.

3. Plug the cord into a properly grounded outlet.

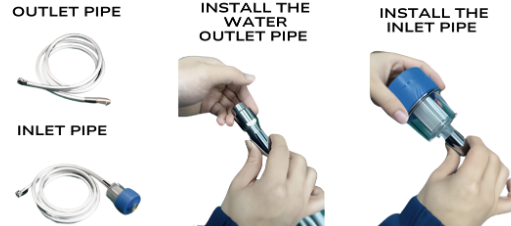

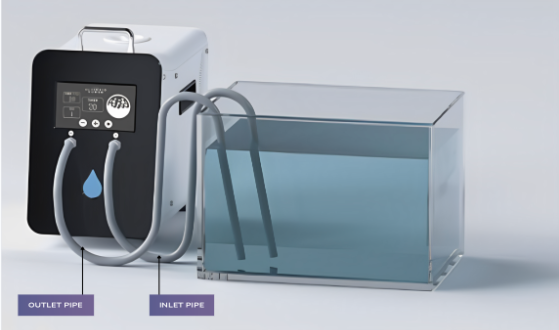

Step 4 — Connect the Tubes

1. Locate the suction tubes in the spare parts kit.

2. Attach the tubes securely to the hydrogen outlet.

3.

4. Place the tubes into the bath water

5.

Step 5 — Power On the Machine

1. Locate the power switch on the back panel.

2. Turn the switch ON.

3. The front display screen will light up, indicating the machine is in standby mode.

Step 6 — Start Hydrogen Production

1. Press the Start/Pause button located at the bottom center of the screen.

2. The machine will begin operating using the default settings:

• Timer: 15 minutes

• Hydrogen Output: First gear

A countdown timer will appear on the display. When the cycle ends, the machine will automatically return to standby mode.

Step 7 — Adjust the Timer

To change the operating time:

1. Press Start/Pause again to begin a new cycle.

2. Use the “+” and “–” buttons on the lower right corner of the screen.

Timer adjustments:

• Each press of “+” increases the time by 15 minutes

• Each press of “–” decreases the time by 15 minutes

• Maximum run time: 60 minutes

⚠️ Important: Avoid running the machine for more than 60 minutes continuously to prevent overheating.

The Video below is a demonstration of what Echo Revive during operation

Echo Revive™ Cleaning Instructions

Replace water and clean the tank monthly to prevent microorganism growth and water turbidity.

Tank Maintenance

Replace water and clean the tank monthly to prevent microorganism growth and water turbidity.

1. Draining the Tank

1. Locate the drainage ports on the back of the machine (two plugs to the bottom left). These have plugs in them
2. Push the blue part inward and pull the plug out to remove the plug
   • Video demonstrating🔗How to remove the plugs on the Echo Revive
3. Empty the tank

2. Cleaning the Tank

1. Add a small amount of fresh water.
2. Shake the machine gently in all directions.
3. Drain the water until it runs clear and free of debris.
4. Optional Vinegar Rinse: If you want a deeper clean

   1. Reinstall the drain plug.

   2. Pour a 5% white vinegar solution into the tank.

   3. Swish the solution gently and let it sit briefly.

   4. Drain through the back drain plug.

   5. Refill with clean water, drain again, and repeat if desired.

   6. Once fully rinsed, reinstall the plug and Proceed to the "Refill the tank" Step for normal use.

5. Optional Full Machine Descale

   1. Prepare a 50/50 mixture of 5% white vinegar and water.

   2. Place the unit in a large container (like a 5-gallon bucket).

   3. Allow the solution to circulate through the machine as it would during normal operation.

   4. Drain and rinse thoroughly with clean water before use.

   5. Once fully rinsed, reinstall the plug and Proceed to the "Refill the tank" Step for normal use.

3. Refill the Tank with Water

1. Add 7.5 cups of fresh deionized water or secondary distilled water. When looking at the machine from the front, you’ll notice gaps on both the left and right sides of the tank. Fill the tank until the water level reaches the bottom of these gaps.
2. Close the top cover securely.
   Note: Always fill the water tank before turning on the machine to avoid damage to the electrolytic tank.

Filter Cleaning

Cleaning the metal filter that sits in the tub

1. Remove the plastic housing by unscrewing it.
2. Rinse the filter under hot water.
3. The filter may also be soaked in vinegar to dissolve mineral deposits, followed by a thorough rinse.

How to clean the Filter:

How to clean the second filter:

Echo Revive™ Alarm Guide

Alarm Display	Reason	Solution	Photo
"TDS is high; please reboot after changing the water."	Adding impure water or water containing salt.	Discharge the water from the tank through the drain. Add pure water and change it several times. Clean the tank before restarting.
"Temperature is high."	The internal temperature has reached 70°C.	Allow the machine to cool down for a while, or change the water before restarting.
"Please check the TDS sensor."	The TDS sensor is either not recognized, improperly installed, or damaged.	Check the TDS sensor for proper installation. Replace the sensor if it is damaged.
"Low water level"	The water level in the tank is too low.	Refill the water tank, ensuring it is more than half full.
"Water level is high."	The water level exceeds the maximum limit.	Drain excess water using the back drain hole until the level is appropriate.
"Pump error"	The water pump pressure is blocked, or the pump is broken.	Drain water using drain hole 2 for 2–3 minutes while the machine is operating. Replace the pump if necessary.

Echo Revive™ Troubleshooting Guide

1. Abnormal Noise or Idling Sound from the Water Pump

• Possible Cause: Pressure buildup inside the pump.

• Solution:

  • Turn the machine on.

  • Locate Drain Hole 2.

  • Drain water from the unit for 2–3 minutes while the machine is running.

• This will release the pressure inside the pump and should resolve the noise.

2. Power Switch Light Is Not Turning On (No red light)

• Possible Cause: A blown fuse.

• Solution:

  1. Check that the wall outlet and surge protector are working properly.

  2. Locate the fuse compartment near the power cord.

  3. Use a flat-blade screwdriver to carefully open the fuse holder.

  4. Remove the fuse and replace it with a 4A fuse.

     • Notes:

       • Spare fuses are located inside the fuse holder or in the accessory bag included with the machine.

       • Fuse orientation does not matter.

  5. Reinstall the fuse holder and ensure it is securely in place.

3. Tube Leaking at the Machine Connection

• Possible Cause: The connection may be loose or the washer may not be seated properly.

• Solution:

  • Locate the chrome nut where the tube connects to the machine.

  • Using an adjustable wrench, tighten the chrome nut 1/8 to 1/4 turn clockwise.

• Do not overtighten.

4. Blue Water Indicator Does Not Fill with Water

• Possible Cause: The reservoir is empty or not filled correctly.

• Solution:

  • Completely drain the unit.

  • Refill the reservoir with water according to the recommended fill instructions.

• Once refilled properly, the blue water indicator should fill normally.

5. Machine Will Not Turn On

After turning the switch to ON, check for the following:

• The indicator light does not turn on
• You do not hear the internal pump start

If both of these occur, proceed to check the fuse:

1. Turn the power switch to OFF.

2. Unplug the machine from the power outlet to ensure there is no electricity running to the unit.

3. Locate the fuse holder near the power cord connection on the back of the machine.

   1. Use a flathead screwdriver to gently pry open the fuse holder.

   2. Remove the fuse and inspect it. The fuse specification is: 250V / 4A fuse

      • To inspect the fuse:

        • Hold it up to a light source.

        • Check if the internal filament appears broken, burnt, or blackened.

        • If the filament is intact, the fuse is still functional.

4. Replace the Fuse (If Needed) If the fuse appears damaged:

   1. Remove the blown fuse.

   2. Insert a replacement fuse into the holder.

      • A spare fuse is located inside the fuse holder.

      • An additional spare fuse is included in the accessory bag that comes with the machine.

      • Ensure the notched end of the fuse holder is oriented correctly before pushing it back into the machine.

   3. Push the fuse holder firmly back into place.

5. Test the Machine Again

   • Plug the machine back into the power outlet.

   • Turn the power switch to ON.

   • If the machine powers on, the issue was the fuse.

6. Decreased Flow Rate

• Possible Cause: Mineral buildup or clogging in the diffuser (the stainless steel piece on the outgoing tube).

• Solution:

  • Remove the diffuser from the tube.

  • Soak it in vinegar for 24 hours to dissolve any buildup.

  • Rinse thoroughly with clean water.

  • Screw the diffuser back onto the tube securely.

• This should restore normal flow rate.
