Echo Refresh Inhalation Machine Manual

Meet the Echo Refresh™

The Refresh enables you to breath small amount of molecular hydrogen diffused with oxygen, allowing it to circulate through your body and reach your cells. Scientists are studying how hydrogen may act as a master cell regulator.

Key Features

2-in-1 Hydrogen & Oxygen Gas Output – Produces hydrogen and oxygen simultaneously for a complete wellness experience.
3 Channel H2 & Oxygen Ports – Multiple outlets provide versatile usage for hydration, therapy, and personal wellness.
Rigorous Quality Assurance – Every unit undergoes a thorough QA checklist to ensure optimal performance and safety.
Stunning TFT Display – Intelligent touch-based interface makes operation fast, intuitive, and effortless.
Advanced Operating System – Monitors and protects internal components with built-in safety alarms and smooth firmware management.
Eco-Friendly & Energy Efficient – Aluminum body is lightweight, rust-proof, and bacteria-resistant; medical-grade power supply balances reliability with energy savings.
Lab-Tested & Certified – Third-party verification ensures hydrogen and oxygen purity. CE, FCC, RoHS, and FDA certifications confirm compliance and quality.
Quiet Performance – Whisper-quiet cooling fans and a silenced water reservoir create a peaceful, uninterrupted experience.
There are built in two charging ports on the machine for your convenience. This is the only reason the charging ports are there.

Product Specifications

Feature	Specification
Purity	99.999% Hydrogen & Oxygen
Type of Water Needed	Distilled
Max Hydrogen Output	1800 ml/min
Max Oxygen Output	600 ml/min
Water Tank Capacity	2.6 L / 11 cups
Input Power	110–240V @ 6A
Power Consumption	470 W
Dimensions (H×W×D)	16.5 × 9.5 × 12.25 in
Touch Screen Dimensions	6-inch TFT display
Weight	27.75 lbs / 32.75 lbs with 10 cups of water
Manufacture Location	China

⚠️ Important Safety Information

To ensure safe operation and prevent injury or product damage:

Use only distilled water (never tap or filtered water). Distilled water is required because it has the lowest amount of TDS (total dissolved solids)
Water requirements: Resistivity >2 MΩ·cm | Conductivity <0.5 µS/cm.
Do not add anything to the water (no minerals, electrolytes, etc.).
Never disassemble the electrolysis cell.
Always drain water before transporting the device.
Do not use near open flame or in poorly ventilated areas.
Avoid confined, dusty spaces and corrosive gases.
Ensure power is grounded and the power port is clean and dry.
Be cautious around static electricity, sparks, or oxygen-rich environments. Elevated oxygen levels combined with hydrogen increase combustion risk.
If you have lung or cardiovascular conditions, or use other respiratory devices, consult a medical professional before using hydrogen inhalation therapy. Controlled clinical data is still limited.

🌡 Operational Information

Temperature: 36°F–175°F (2°C–79°C)
Water temperature may rise during operation.
Water: Use distilled water only.
TDS (Total Dissolved Solids): 0–6 ppm. Too high a TDS will trigger an error code.
Humidity: <85%
Placement: Use upright on a stable surface. Do not shake, expose to direct sunlight, or place near fire.
Ventilation: Ensure proper airflow around the unit.

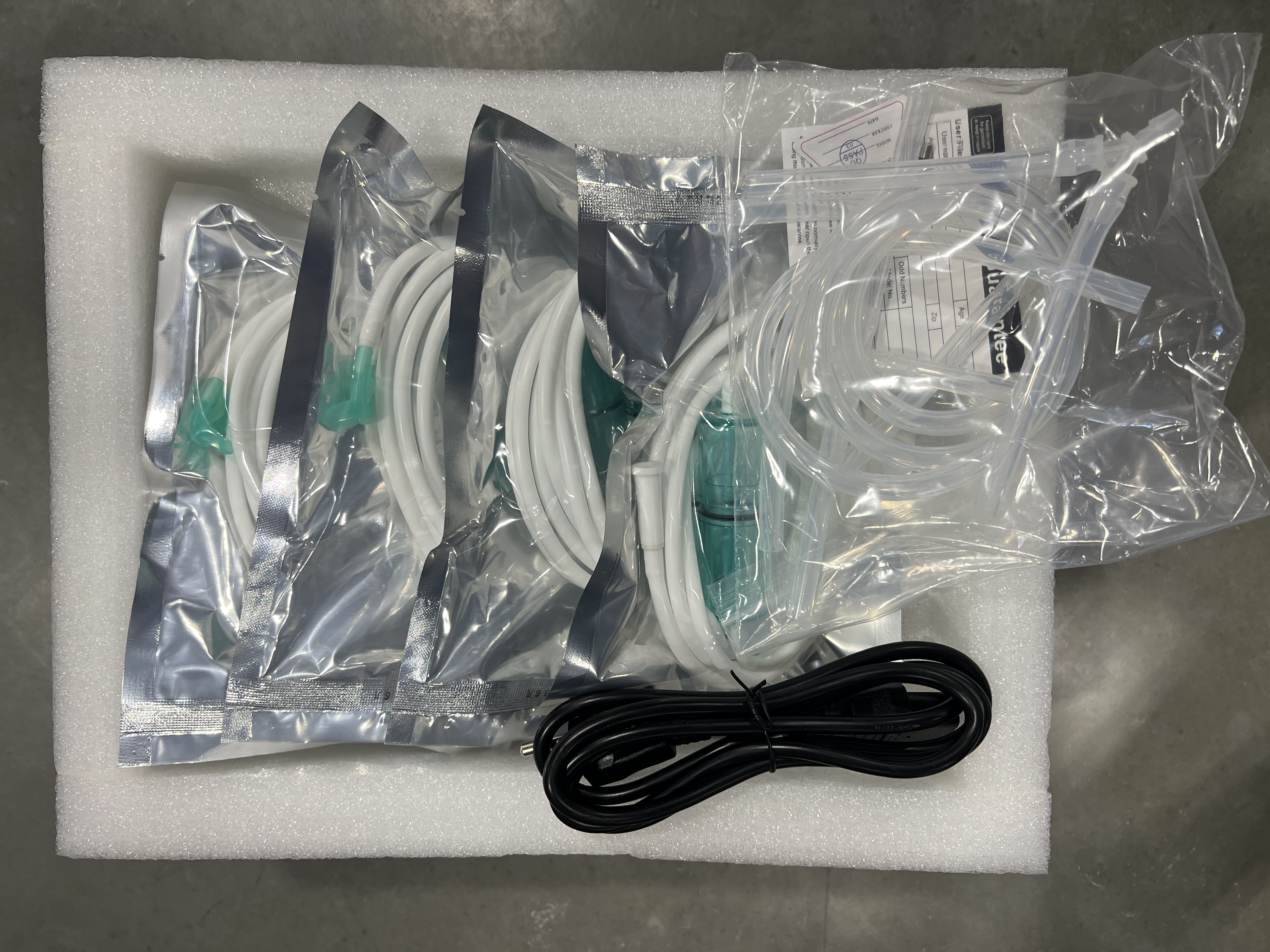

Echo Refresh™ What's Included

Echo Refresh Machine
- Travel caps (pre-installed to prevent leaks during shipping)
- Two side handles (easy lifting)
Power cord
Hydrogen Absorption Tube (x4)
3-Way Tube (x2)
4-way tube (1)
1 Meter Silicone Tube (1)
Spare fuses (2)

Echo Refresh™ Setup & Testing Instructions

1. Unboxing & Inspection

Unbox the machine and inspect it for any damage during shipping.
Remove the three protective plugs from the ports on top of the unit.

2. Fill the Water Tank

Remove the black fill tank cap on top of the machine (it pulls off; no twisting required).
Pour distilled water into the tank until it reaches the fill line (approximately 11 cups or ~2.6 liters).
- You want distilled water because it has the lowest amount of TDS (total dissolved solids)
- If you put too much water in there, the machine will give you an error and you will need to drain it.
Replace the tank lid securely on top.

3. Power Connection

Connect the machine to power using the provided power cord.
- Ensure the outlet is free of debris or water.
- Plug the cord into a surge protector (not included).
Locate the power switch on the back panel and flip it to “ON”.
The front panel screen will light up and enter standby mode.
- The Echo Water logo pops up. In order to go to the next screen you have to touch it.

4. Test Airflow

Cover any port for 5–10 seconds then release to hear the air flow.
Note: The oxygen port will feel weaker than the hydrogen ports.
Important: Oxygen will not flow if the tank lid is off. Make sure the lid is securely on.

5. Connect the Tubing

Locate the 4-way connector with four tubes attached.
Connect tubes as follows:
- Short middle tube → Oxygen port (center)
- Two long tubes → Hydrogen ports (left and right)
- Nasal cannula tube → 4th connector

Do I need all 3 tubes connect to the Echo Refresh when using?

Yes, you need all 3 tubes connected when using the Echo Refresh.

These are the 3 channel ports - H2 Outputs and 1 Oxygen Output.
You can choose on the machine how much Hydrogen and Oxygen output you would like.
You can create a brown gas mixture (hydrogen and oxygen), pure oxygen or pure hydrogen alone, but you need all 3 of them connected.
View available mixtures you can create below.

Machine is now ready for use

Echo Refresh™ Operation Guide

How to Use

1. Water Level & Filling

Always keep the water tank 2/3 full for optimal performance. You will need to refill the machine monthly.
Use only distilled water and fill through the top lid.
Never run the machine dry — always add water before turning it on.
You can add water while the machine is running if the level gets low.
Monthly refills are typically needed.
The screen will alert you if the water is too low or too high.

2. Powering On

Connect the machine to power using the provided cord.
- Ensure the outlet is free of debris or moisture.
Locate the power switch on the back panel and flip it to ON.
The front panel screen will light up and enter standby mode.
Tap the Echo logo on the screen to access the Function Display.

3. Setting the Timer

Press the play button ▶️ to start timer settings.
The default time is 30 minutes.
Tap + or – to adjust the timer in 30-minute increments, up to 360 minutes.
Flow level is fixed at 1800 mL/min and cannot be adjusted.

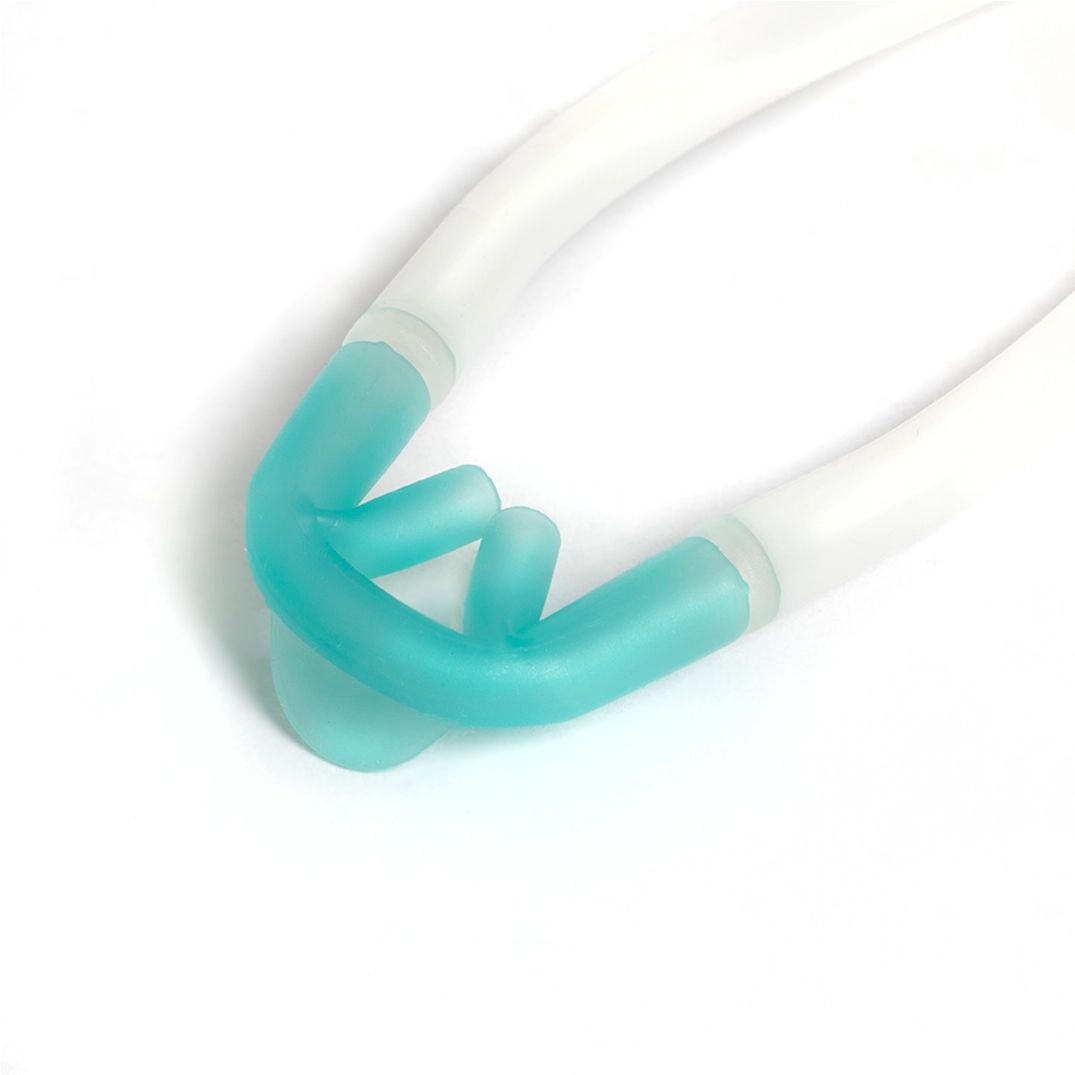

4. Using the Nasal Cannula

Check the cannula – ensure tubing is untangled and prongs are curved downward when held in front of your face.
Position the prongs – insert the soft prongs into your nostrils with openings pointing toward the back of your nose.
Loop tubing over ears – rest the tubing comfortably over the tops of your ears.
Adjust under the chin – slide the adjuster to secure the cannula snugly without pinching.

5. Start Hydrogen Inhalation

Press the play button ▶️ to begin producing hydrogen and oxygen.
💡 LED lights are decorative only.
🚫 Never block any air outlets while the machine is running.

Quick Tips

Refill the tank before the water runs low to prevent error messages.
Keep distilled water within 2/3 of tank capacity for consistent operation.
Make sure the cannula fits comfortably for proper hydrogen inhalation.

Echo Refresh™ Available Modes

You can change the modes by simply adjusting the tube configuration.

Brown's Gas: plug the nasal cannula into the 4 way connector to use 2 parts H2 + 1 part O2
Oxygen only - plug the nasal cannula straight into the oxygen port
Hydrogen only - plug the nasal cannula using the Y connector, into the left and right hydrogen ports
Two-person Hydrogen mode One nasal cannula would be plugged into the left port, the other would be plugged into the right port. (two nasal cannula's provided)

Alerts & Alarms

Message	Solution
"TDS is high"	Drain & refill with distilled water
"High water level"	Drain some water
"Please add water"	Add distilled water
"Please increase time"	Set at least 30 mins
"High temperature"	Check cooling fan Let sit for 30 minutes Can be at room temp to 175 degrees

Echo Refresh™ Cleaning & Maintenance

The water that is used inside is distilled water so there is not a likelihood of bacterial growth.

Water Trap

Drain by opening teal connector
Rinse with vinegar water

Regular Water Changes

Change water every 20 hours of use or weekly
Drain via back drain port (blue ring connector)
Refill & drain 2–3 times before final refill

Deep Cleaning

Unplug the power from the unit
Use Echo Clean or use a 1/1 ratio using White vinegar and water in the tank
Do NOT run machine with solution
Let it sit for at least 15 minutes, or overnight
Drain fully
Flush the Tank
- Add fresh distilled water, then drain again.
- Repeat this process 2–3 times for optimal cleanliness.

How to Drain the Machine

Locate the Automatic Drain Outlet (labeled and furthest on the right).
Remove the Plug from the Automatic Drain Outlet

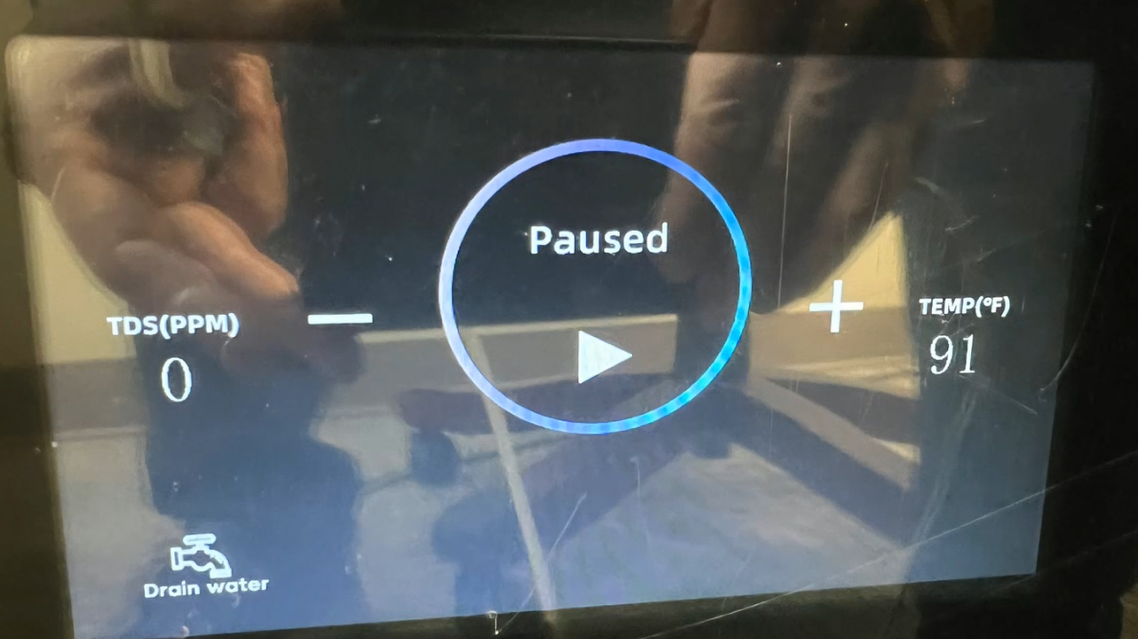

Push the "drain water" on the screen
It will start pumping water out automatically
Notes
- It’s okay if the bottom of the machine gets slightly wet—just avoid soaking it.
- Frequent water changes help prolong machine life.

Long-Term Storage

Store with a small amount of distilled water in tank
If unused for long:
- Refill and wait 24 hours
- Drain, refill, and drain again 3–4 times before use
Never leave completely dry for more than 1 year
If the machine hasn't been used for a while follow instructions for deep cleaning

Echo Refresh™ Troubleshooting & FAQs

Please check the following before contacting Technical Support.
If the issue persists, call 947-218-1108 or email: support@waterwellnessworks.com

1. Machine Will Not Power On

Check the following:

Ensure the power outlet is working
Confirm the power cable is securely plugged in
Verify the power switch on the back panel is turned ON

Check the fuse

The fuse is located just above the power cord connection on the back of the unit.

To check it:

Use a flathead screwdriver or butter knife to gently pry open the fuse holder.
Remove and inspect the fuse.
Replace if necessary.

Your Echo Refresh includes:

1 installed fuse
2 spare fuses in the accessory zip-lock bag.

2. No Oxygen Coming From Oxygen Port

Ensure the water tank lid is securely in place.
The machine will not produce oxygen if the lid is removed.

3. No Hydrogen Coming From Hydrogen Ports

Please upload a video for us to review — it helps our technical team diagnose faster.

4. LED Lights Not Turning On

Please upload a video for us to review — it helps our technical team diagnose faster.

5. Water Leaking From Bottom of Machine

Turn off and unplug the unit immediately.
Please upload a video for us to review — it helps our technical team diagnose faster.

Frequently Asked Questions

The Fill Line Is Difficult to See

On the new Echo Refresh model, the fill line may be harder to see through the viewing window.

The correct fill level is approximately:

11 cups of distilled water (~2.6 liters).

Helpful tip:

When the machine powers on:

A red LED light inside the unit illuminates.
Pressing Play activates a blue LED light, which makes it easier to see the water level while filling.

If too much water is added, the machine will display an error message, and you will need to drain some water before operating.

Is Hydrogen Inhalation Safe?

Published human safety studies suggest that low-concentration hydrogen gas (~2% mixed with air) appears to be safe and well tolerated.

Participants in these studies showed no clinically significant changes in:

Vital signs
Lung function
Neurological function
Standard laboratory markers

However, there are important safety considerations:

Pure hydrogen gas is flammable.
High concentrations of hydrogen mixed with oxygen or air can create fire or explosion risks.

Some poorly designed devices that generate undiluted or high-concentration hydrogen have been associated with equipment failure or safety risks.

For this reason, it is important to only use certified hydrogen inhalation systems designed to safely dilute hydrogen below explosive thresholds, such as the Echo Refresh.

Can I Buy Replacement Cannulas?

Echo Water does not currently sell replacement cannulas directly.

However, you can purchase standard nasal cannulas with a water trap from most:

Online retailers
Medical supply stores
Local pharmacies

One compatible option is available here:

https://www.amazon.com/dp/B07KF28LHQ

Can More Than One Person Use the Refresh at the Same Time?

The Echo Refresh is designed for optimal performance with one user at a time.

This ensures the proper hydrogen concentration and flow rate.

While it is technically possible to split the line using a Y-splitter, doing so would:

Divide the hydrogen output
Reduce the concentration each person receives

For best results, single-user sessions are recommended.

Why Are Different Flow Levels Used?

Different hydrogen flow levels can affect comfort and session duration, but higher flow does not necessarily mean better results.

Low Flow (~900 mL/min)

Best for sleep or long sessions

Gentle and comfortable breathing
Reduces throat dryness
Ideal for overnight use

Medium Flow (~1200 mL/min)

Best for standard daily sessions

Balanced comfort and delivery
Ideal for 20–60 minute sessions
Most common setting for home users

High Flow (~1800 mL/min)

Best for shorter, high-demand sessions

Faster hydrogen saturation
Useful for multi-user or clinical environments

Key Takeaway

Higher flow rates mainly affect how quickly hydrogen fills the breathing circuit, not necessarily how much your body absorbs.

For most at-home users, 1200 mL/min provides excellent results with the most comfortable experience.

Warranty

You will need to register your product in our Echo System here. Select "Other"

Warranty Coverage

This warranty is limited in scope and covers only the following defects:

Any factory defects to the internal or external components of the device.

Any material physical flaw in the device that manifests in the exterior enclosure, including splits or cracks in the case, delamination of glued surfaces, and broken or defective screens or displays, that impacts the performance of the device and is not caused by improper use or handling of the equipment.

This limited warranty covers only the core equipment and does not cover any other accessories attached to the device, including plumbing fixtures and fittings, tubing, filters, or other components and accessories.

This limited Warranty is personal to you as the original owner and cannot be transferred to any other person. You will be responsible for all costs associated with handling and transportation related to the original equipment and any replacement equipment.

Warranty Exceptions

The main tank of this water filter is designed to last 10 years. You should expect to replace it after 10 years of normal usage: 100,000 Gallons = about 1 Year.
The warranty does not cover external filters or other parts that are designed to be replaced periodically.

To ensure full warranty coverage, your Echo Water product must be purchased from an authorized seller. Purchases made through non-authorized sellers cannot be verified by Echo Water and are not eligible for warranty service.

Your Remedies

If the equipment is deemed defective by Echo Technologies during this period, you, as the original owner, will continue to own the equipment. we will be responsible, in our sole discretion, for either repairing the equipment or providing a new or refurbished replacement product or the equivalent credit amount (Warranty Credit) to you equal to a prorated percentage of your original purchase price (less any taxes, handling, transportation, or other fees). Any credit amounts given must be applied exclusively to the purchase of a new product from us, according to the following schedule:

During the first 1 year or original ownership by you, the warranty Credit shall be 100% of the original purchase price (less any taxes, handling, transportation, or other fees).

During year 2 of original ownership by you, the warranty credit shall be 75% and decrease 10% for each additional year through year 10.

Warranty Schedule

Year	Coverage
Year 1	100%
Year 2	100%
Year 3	75%
Year 4	65%
Year 5	55%
Year 6	45%
Year 7	35%
Year 8	25%
Year 9	25%
Year 10	25%

Repair Cost Schedule

At our discretion, we may choose to repair the device rather than or prior to issuing a replacement or a credit. Repairs are billed at $125 per hour plus parts and shipping. These costs will be Prorated based on the warranty schedule below.

During the first 1 year or original ownership by you, the Warranty Credit shall be 100% of the original purchase price (less any taxes, handling, transportation, or other fees).

During year 2 of original ownership by you, the warranty credit shall be 75% and decrease 10% for each additional year through year 10.

Year	Coverage	Hourly Rate	Hourly Cost	Parts Discount
Year 1	100%	$125	$0.00	100%
Year 2	75%	$125	$31.25	75%
Year 3	65%	$125	$43.75	65%
Year 4	55%	$125	$56.25	55%
Year 5	45%	$125	$68.75	45%
Year 6	35%	$125	$81.25	35%
Year 7	25%	$125	$93.75	25%
Year 8	25%	$125	$93.75	25%
Year 9	25%	$125	$93.75	25%
Year 10	25%	$125	$93.75	25%

Additional Conditions

For this limited warranty to be valid, you must:

Purchase the machine from an authorized dealer.
Be the original consumer or purchaser. Coverage terminates if you sell or otherwise transfer possession of the equipment.
Provide proof of original purchase via a copy of the original store receipt reflecting the proof of purchase date, place of purchase, and purchase price.
Customer service and Technical Support will go through troubleshooting steps prior to sending out a full replacement unit.
Only one replacement is permitted per item. No further replacements will be provided if a replacement has already been received under warranty.
This limited Warranty will be void and shall not apply to products that have been intentionally or negligently damaged, dropped, stained, exposed to sunlight, exposed to harsh chemicals or elements, exposed to cold or freezing temperatures, water damaged, dropped, exposed to insects or animals, improperly vented, or overheated, used with hard water, or otherwise physically damaged or soiled (including by bodily fluid).
Overheating
Deterioration in performance over time is caused by failure to properly and regularly clean, change the filters, and do general routine maintenance.
The machine must be used with a surge protector; damage from power surges will not be covered.

ALL OTHER OBLIGATIONS AND WARRANTIES, WHETHER EXPRESSED OR IMPLIED, INCLUDING, WITHOUT LIMITATION, ANY IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY DISCLAIMED. WE SHALL NOT BE LIABLE UNDER THIS LIMITED WARRANTY FOR ANY COSTS, FEES, DAMAGES, OR OTHER AMOUNTS, OTHER THAN AS SPECIFIED HEREIN. IN NO EVENT SHALL OUR LIABILITY TO YOU EXCEED YOUR ORIGINAL PURCHASE PRICE.

Return Policy

Echo Water 60-Day RISK-FREE Returns

We stand fully behind our products! If you’re not completely satisfied, we make it easy to return your item within 60 days of delivery. Our goal is to help you confidently explore how hydrogen water can support your health journey.

Return Window

Request a return or exchange within 60 days of receiving your item.

EU Customers: You may cancel or return your order within 14 days of delivery. Items must be unused, in original packaging, and proof of purchase included.

Return Shipping

Once approved, you’ll receive a prepaid shipping label via email.

To ensure a smooth process and free shipping, please use the label provided. If you plan to ship your return independently, let us know first.

Non-Returnable Items

Certain items are not eligible for return, including:

Water filters removed from protective packaging
Items labeled “Final Sale” or “Closeout.”
Gift cards or custom/personalized items
Echo Care
Items received free as part of a bundle or promotion
Damaged items that do not qualify for warranty coverage

Refunds

Once we receive your item, we’ll inspect it and email you to confirm your refund.

Refunds are issued to the original payment method within 10 business days. Depending on your bank or credit card provider, it may take additional time to post to your account.

Important Notes:

Refunds are only issued to the original payment method.
If you no longer have access, request store credit during your return.
Refunds cannot be canceled once processed.

Echo Water Support

Need Help? We’ve Got You Covered

If you have a question, need assistance, or something doesn’t seem quite right, our team is here to help between 9 AM and 4 PM EST, Monday through Friday..

Leave us a Review!

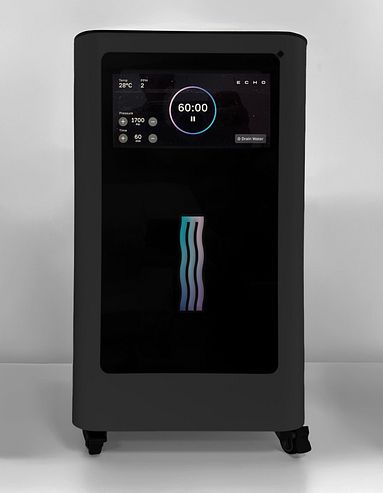

We value your feedback, which helps us improve our service. We’d love to hear about your experience with the Echo Refresh Inhalation Machine™!

Note: If you’re experiencing an issue, please contact our support team directly. The review section is not connected to our support system, and we want to ensure we address your concerns promptly.
