Mid-to-High Capacity Softening for Consistent Performance

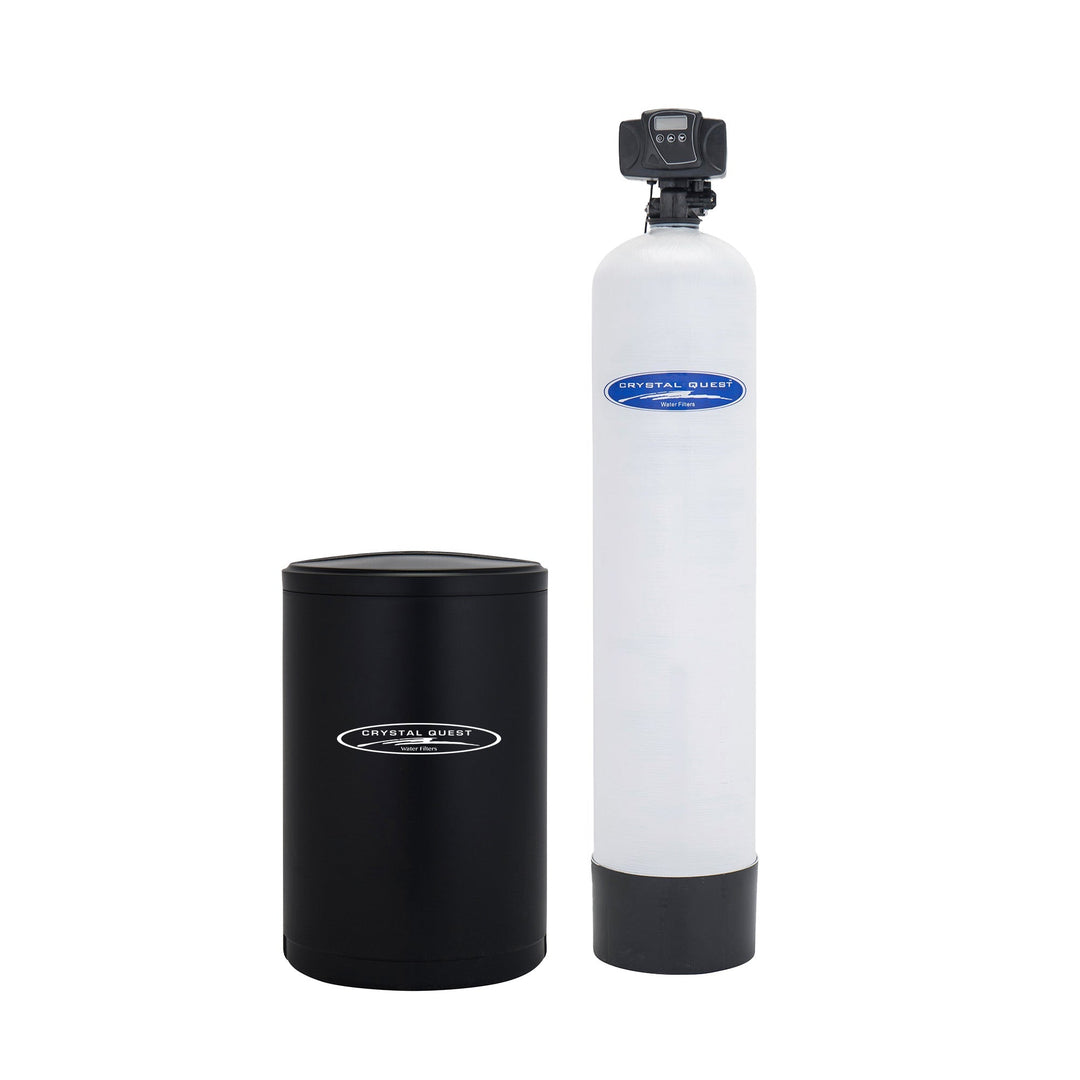

Hard water buildup reduces efficiency, damages equipment, and increases operating costs. The 60,000 Grain Water Softener System is designed to remove hardness minerals at the source, delivering reliable soft water for properties that need more capacity than standard residential systems—without jumping to full commercial scale.
What It Solves
-
Prevents scale buildup in plumbing and equipment
-
Improves water heater efficiency and lowers energy costs
-
Eliminates residue on fixtures, glass, and surfaces
-
Enhances soap performance and cleaning results
Built for Balanced Demand
-
60,000 grain capacity for mid-to-high usage
-
Automatic regeneration for continuous operation
-
High-flow performance without pressure loss
-
Durable construction for long-term reliability
-
Small-mid size spaces (1-4 bathrooms)
-
For condos, townhomes, airbnb properties, small restaurants, salons, and offices.
3 Stages of Filtration
- Stage 1 - Water flows through a 20” sediment cartridge that removes sediment, silt, sand, and dirt.
- Stage 2 - Water flows through an ion exchange mineral tank and brine water conditioner.
- Stage 3 - Water flows through a 20” solid carbon cartridge for removing volatile organic carbon compounds (VOCs), insecticides, pesticides and industrial solvents.*
*If present in the water
**Frequent regeneration with sodium chloride (salt) or potassium chloride required.
Additional Product Options
-
12 GPM UV Water Sterilizer: Specifically designed to meet the demanding microorganism control concern. These microorganisms can range from bacteria and viruses to algae and protozoa. A major advantage of UV treatment is that it is capable of disinfecting water faster than chlorine without cumbersome retention tanks and harmful chemicals to your drinking water.
-
Oxidation System: Utilizes ozone for efficient water oxidation, improving water quality.
*Pinholes or rust may occur on stainless steel tanks in environments with high humidity, when salt is present or if condensation remains on tank without being routinely wiped down. If your system will be exposed to one of these factors or you are unable to perform the needed maintenance, we recommend a fiberglass tank.
Water Softener Replacement Media
EAGLE Multimedia Replacement Media
* All parts, components, and media are Certified
| Specification |
CQE-CO-02039 |
CQE-CO-02041 |
CQE-CO-02043 |
CQE-CO-02044 |
CQE-CO-02045 |
CQE-CO-02046 |
CQE-CO-02047 |
CQE-CO-02048 |
CQE-CO-02049 |
CQE-CO-02050 |
CQE-CO-02050A |
| Service Flow (GPM) |
9-11 |
10-13 |
15 |
20 |
35 |
60 |
75 |
185 |
200 |
245 |
390 |
| Backwash FLow (GPM) |
4 |
4 |
5 |
7 |
12 |
15 |
25 |
35 |
50 |
65 |
75 |
| Pipe Size |
1" |
1" |
1" |
1.5" |
1.5" |
2 |
2" |
2" / 3" |
3" |
3" |
3" |
| Electronic Control Valve |
5600 |
5600 |
2510 |
2850 |
2850 |
2900 |
2900 |
3150 / 3900 |
3900 |
3900 |
3900 |
| Filter Media Volume |
1.5 ft³ |
2 ft³ |
3 ft³ |
4 ft³ |
7 ft³ |
10 ft³ |
15 ft³ |
20 ft³ |
30 ft³ |
40 ft³ |
60 ft³ |
| PSI Range |
35-60 |
35-60 |
35-60 |
35-60 |
35-60 |
35-60 |
35-60 |
35-60 |
35-60 |
35-60 |
35-60 |
| Grain Capacity |
45,000 |
60,000 |
90,000 |
120,000 |
210,000 |
300,000 |
450,000 |
600,000 |
900,000 |
1,200,000 |
1,800,000 |
| Brine Tank Capacity |
130L / 36G |
130L / 36G |
300L / 79G |
300L / 79G |
500L / 132G |
800L / 211G |
1000L / 265G |
1500L / 396G |
2000L / 528G |
2000L / 528G |
2000L / 528G |
| Mineral Tank Size (in.) |
10" x 54" |
12" x 52" |
14" x 65" |
16" x 65" |
21" x 62" |
24" x 72" |
30" x 72" |
36" x 72" |
42" x 72" |
48" x 72" |
63" x 83" |
| Brine Tank Dimensions |
18" x 33" |
18" x 33" |
23” x 47” |
23” x 47” |
29” x 52” |
34” x 53” |
39” x 55” |
51” x 52” |
51” x 63” |
51” x 63” |
51” x 63” |
| Space Required (in.) (L x W x H) |
30" x 20" x 64" |
32" x 20" x 62" |
39" x 25” x 75" |
41" x 25” x 75" |
53" x 31” x 84" |
58" x 36” x 95" |
71" x 41” x 95" |
91" x 53” x 192" |
98" x 53” x 192" |
103" x 53” x 192" |
118" x 53” x 203" |
| Quartz (lbs.) |
15 |
20 |
30 |
40 |
70 |
120 |
150 |
300 |
300 |
450 |
1800 |
