Targeted Hard Water Removal for Homes & Light Commercial Use

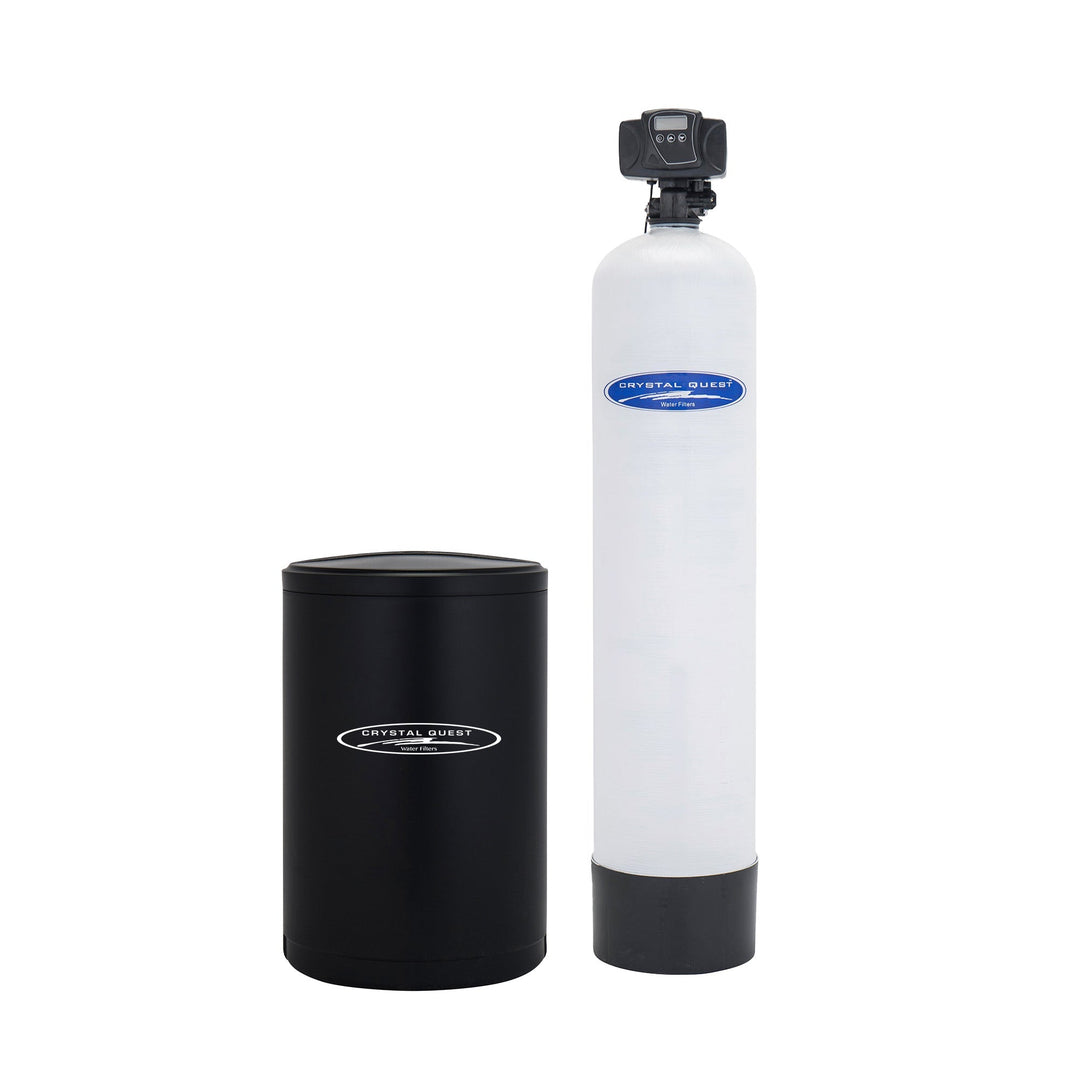

Hard water buildup doesn’t take long to cause damage—leaving behind scale, reducing efficiency, and increasing operating costs. The 45,000 Grain Water Softener System delivers true hardness removal by eliminating calcium and magnesium before they reach your plumbing.
What It Solves
-
Prevents scale buildup in pipes and appliances
-
Improves water heater efficiency and lowers energy costs
-
Eliminates residue on dishes, fixtures, and surfaces
-
Enhances soap performance for better cleaning
Hard water can increase heating costs by up to 15–20% due to scale buildup, making softening one of the most cost-effective upgrades.
Built for Efficient Performance
-
45,000 grain capacity ideal for smaller systems
-
Durable fiberglass tank and high-flow design
-
Automatic regeneration for consistent performance
-
Adjustable control valve for optimized operation
Benefits
-
Extends lifespan of appliances and plumbing
-
Reduces maintenance and repair costs
-
Improves cleaning results with less detergent
-
Provides softer water for skin, hair, and surfaces
Choose 45,000 Grain if:
✔ Small to mid-size home (1–3 bathrooms)
✔ Light commercial use
✔ Moderate water usage
✔ Townhomes, Condos, Families
Water Travels Through 3 Stages of Filtration
- Stage 1 - Water flows through a 20” sediment cartridge that removes sediment, silt, sand, and dirt.
- Stage 2 - Water flows through an ion exchange mineral tank and brine water conditioner.
- Stage 3 - Water flows through a 20” solid carbon cartridge for removing volatile organic carbon compounds (VOCs), insecticides, pesticides and industrial solvents.
Additional Product Options
-
12 GPM UV Water Sterilizer: Specifically designed to meet the demanding microorganism control concern. These microorganisms can range from bacteria and viruses to algae and protozoa. A major advantage of UV treatment is that it is capable of disinfecting water faster than chlorine without cumbersome retention tanks and harmful chemicals to your drinking water.
-
Oxidation System: Utilizes ozone for efficient water oxidation, improving water quality.
- 5600 Automatic Control Head
*Pinholes or rust may occur on stainless steel tanks in environments with high humidity, when salt is present or if condensation remains on tank without being routinely wiped down. If your system will be exposed to one of these factors or you are unable to perform the needed maintenance, we recommend a fiberglass tank.
* All parts, components, and media are Certified
| Specification |
CQE-CO-02039 |
CQE-CO-02041 |
CQE-CO-02043 |
CQE-CO-02044 |
CQE-CO-02045 |
CQE-CO-02046 |
CQE-CO-02047 |
CQE-CO-02048 |
CQE-CO-02049 |
CQE-CO-02050 |
CQE-CO-02050A |
| Service Flow (GPM) |
9-11 |
10-13 |
15 |
20 |
35 |
60 |
75 |
185 |
200 |
245 |
390 |
| Backwash FLow (GPM) |
4 |
4 |
5 |
7 |
12 |
15 |
25 |
35 |
50 |
65 |
75 |
| Pipe Size |
1" |
1" |
1" |
1.5" |
1.5" |
2 |
2" |
2" / 3" |
3" |
3" |
3" |
| Electronic Control Valve |
5600 |
5600 |
2510 |
2850 |
2850 |
2900 |
2900 |
3150 / 3900 |
3900 |
3900 |
3900 |
| Filter Media Volume |
1.5 ft³ |
2 ft³ |
3 ft³ |
4 ft³ |
7 ft³ |
10 ft³ |
15 ft³ |
20 ft³ |
30 ft³ |
40 ft³ |
60 ft³ |
| PSI Range |
35-60 |
35-60 |
35-60 |
35-60 |
35-60 |
35-60 |
35-60 |
35-60 |
35-60 |
35-60 |
35-60 |
| Grain Capacity |
45,000 |
60,000 |
90,000 |
120,000 |
210,000 |
300,000 |
450,000 |
600,000 |
900,000 |
1,200,000 |
1,800,000 |
| Brine Tank Capacity |
130L / 36G |
130L / 36G |
300L / 79G |
300L / 79G |
500L / 132G |
800L / 211G |
1000L / 265G |
1500L / 396G |
2000L / 528G |
2000L / 528G |
2000L / 528G |
| Mineral Tank Size (in.) |
10" x 54" |
12" x 52" |
14" x 65" |
16" x 65" |
21" x 62" |
24" x 72" |
30" x 72" |
36" x 72" |
42" x 72" |
48" x 72" |
63" x 83" |
| Brine Tank Dimensions |
18" x 33" |
18" x 33" |
23” x 47” |
23” x 47” |
29” x 52” |
34” x 53” |
39” x 55” |
51” x 52” |
51” x 63” |
51” x 63” |
51” x 63” |
| Space Required (in.) (L x W x H) |
30" x 20" x 64" |
32" x 20" x 62" |
39" x 25” x 75" |
41" x 25” x 75" |
53" x 31” x 84" |
58" x 36” x 95" |
71" x 41” x 95" |
91" x 53” x 192" |
98" x 53” x 192" |
103" x 53” x 192" |
118" x 53” x 203" |
| Quartz (lbs.) |
15 |
20 |
30 |
40 |
70 |
120 |
150 |
300 |
300 |
450 |
1800 |
