Advanced Ultrafiltration Without Wastewater

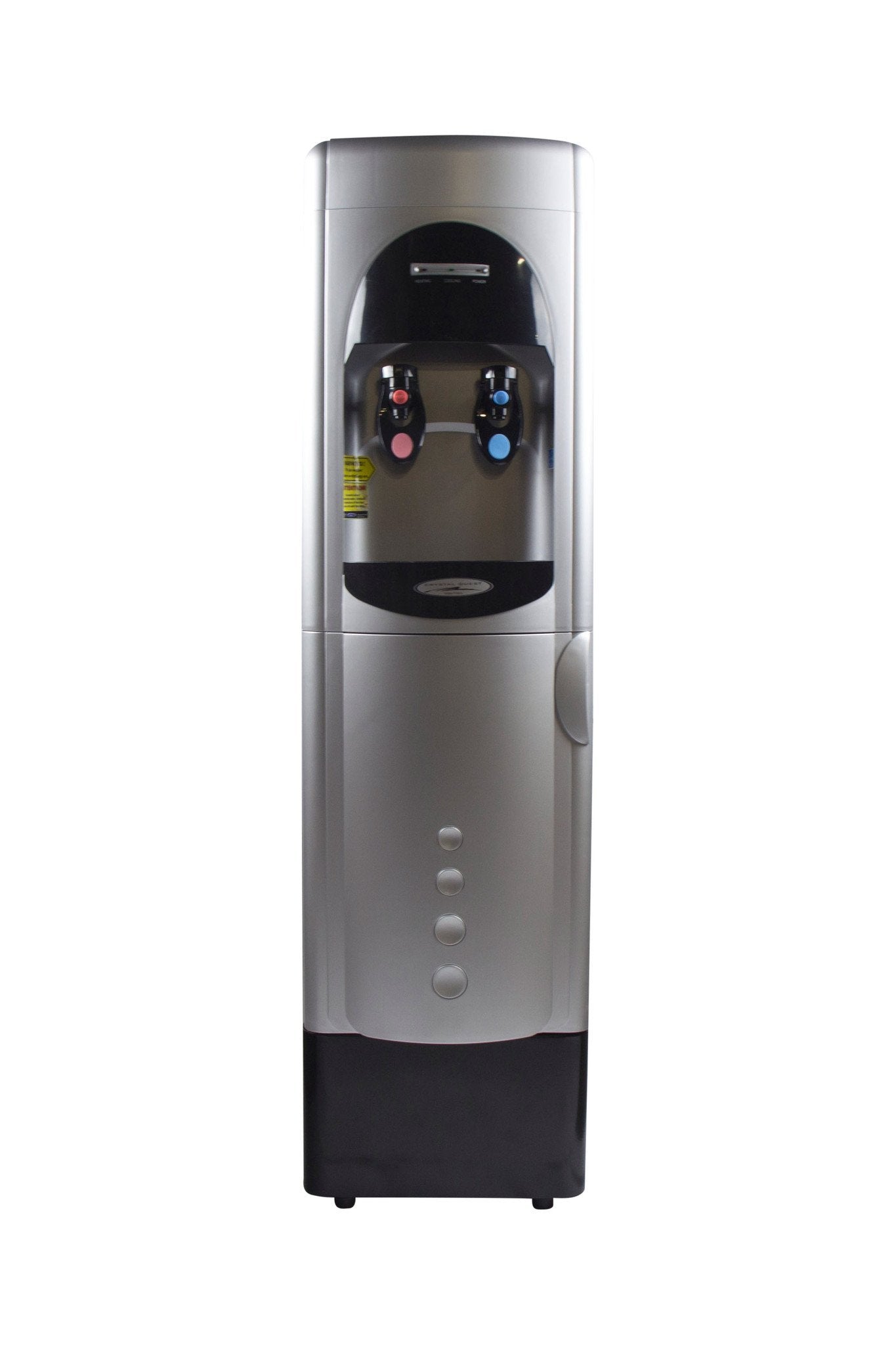

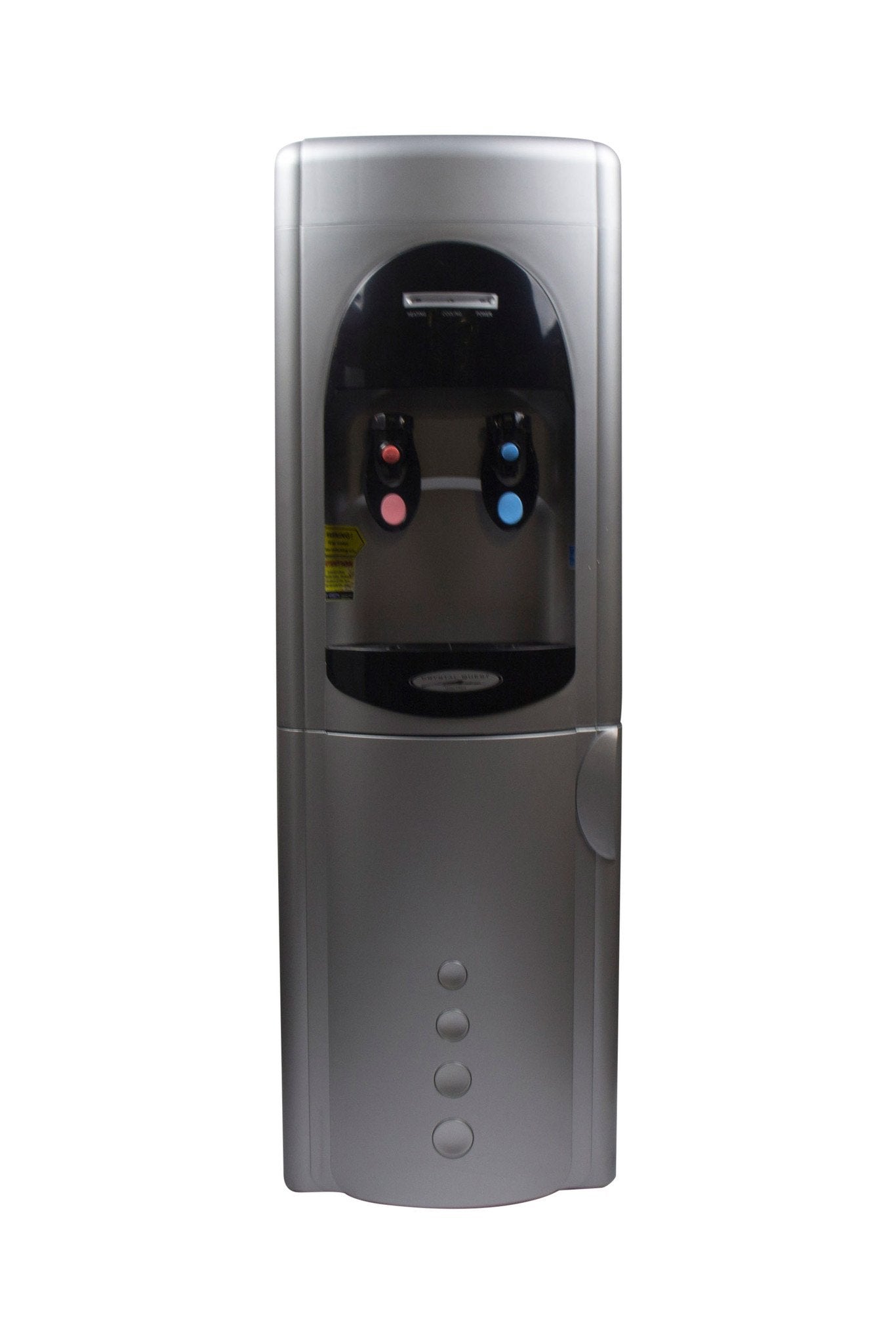

The Crystal Quest® SHARP Ultrafiltration (UF) Bottleless Water Cooler uses a 0.02-micron UltraFiltration membrane to provide cleaner, better-tasting water while maintaining excellent efficiency. Unlike reverse osmosis systems, SHARP UF filtration operates without producing wastewater, making it an eco-friendly and cost-effective choice for everyday hydration. Connected directly to your water line, it delivers an endless supply of filtered hot and cold water without the hassle of replacing bottles or waiting for deliveries.
How SHARP Ultrafiltration Works
The UF membrane acts as an ultra-fine barrier that helps reduce:
- Sediment, dirt, and rust
- Total Suspended Solids (TSS)
- Many microorganisms
- Particulates that can affect water quality and taste
Because ultrafiltration retains naturally occurring minerals, it provides fresh, clean water while preserving the minerals many people prefer in their drinking water.
Is UltraFiltration Enough?
For many homes and offices using municipal water, SHARP Ultrafiltration provides excellent filtration and improved taste without the complexity or wastewater associated with reverse osmosis.
However, if your water contains high levels of dissolved contaminants such as fluoride, nitrates, heavy metals, or excessive hardness, a Reverse Osmosis (RO) system may offer a higher level of purification.
Why Choose SHARP UF Over Reverse Osmosis?
No Wastewater
Every drop of filtered water is available for use, making UF a more water-efficient solution.
Retains Beneficial Minerals
Unlike RO, ultrafiltration leaves naturally occurring minerals in your water while helping reduce suspended particles and many microorganisms.
Lower Maintenance
No drain connection or wastewater line is required, simplifying installation and operation.
Fast, Continuous Flow
Provides filtered water with minimal pressure loss for convenient everyday use.
Benefits
- 0.02-micron ultrafiltration technology
- No wastewater or drain connection required
- Helps reduce sediment, suspended solids, and many microorganisms
- Retains naturally occurring minerals
- Improves taste and clarity
- Unlimited bottleless hot and cold water on demand
- Ideal for homes, offices, breakrooms, and commercial spaces
|
TURBO UF |
TURBO UF/RO |
SHARP UF |
SHARP UF/RO |
Hybrid UF |
Hybrid UF/RO |
| No Plastic Jugs |
 |
|
|
|
|
|
| Cold Water |
|
|
|
|
|
|
| Hot Water |
|
|
|
|
|
|
| Child Safety for Hot Water |
 |
|
|
|
|
|
| UltraFiltration (UF) |
|
|
|
|
|
|
| Reverse Osmosis (RO) |
|
|
|
|
|
|
| Waste Water |
|
|
|
|
|
|
| Stainless Steel Holding Tank |
|
|
|
|
|
|
| Polypropylene Holding Tank |
|
|
|
|
|
|
|
Specifications
- Weight: 48 lbs.
- Premium Sharp weight: 59 lbs.
- Floor Sharp dimensions: (D) 13” x (W) 13” x (H) 42”
- Premium Sharp dimensions: (D) 13” x (W) 13” x (H) 50”
- Heating power: 500W 6.2 Amps
-
Cooling power: 112W 2.4 Amps - TOTAL NEEDED 612W 8.6 Amps
- Hot water tank volume: 0.5 gal/heating
- Cold water tank volume: .54 gal
- Cooling capacity: 1.95 gal per hour 35-50°F
- Heating capacity: 1.5 gal per hour 185°F
- Voltage: 110V-120V 50/60Hz
- Pressure range: 30-60 psi (2.1-4.1bar)
- Optimum service flow: 0.50 GPM at 60 psi (1.1lpm at 4.1 bar)
|
Features
- Built-in filtration system
- Comes in 2 Styles
- Easy to use
- Separate hot/cold power switch
- Automatic hot and cold water temperature control
- Automatic heating shut-off when hot temperature is reached
- Automatic float valve
- High efficiency sealed compressor cooling system
- Type 304 stainless steel hot and cold water tanks

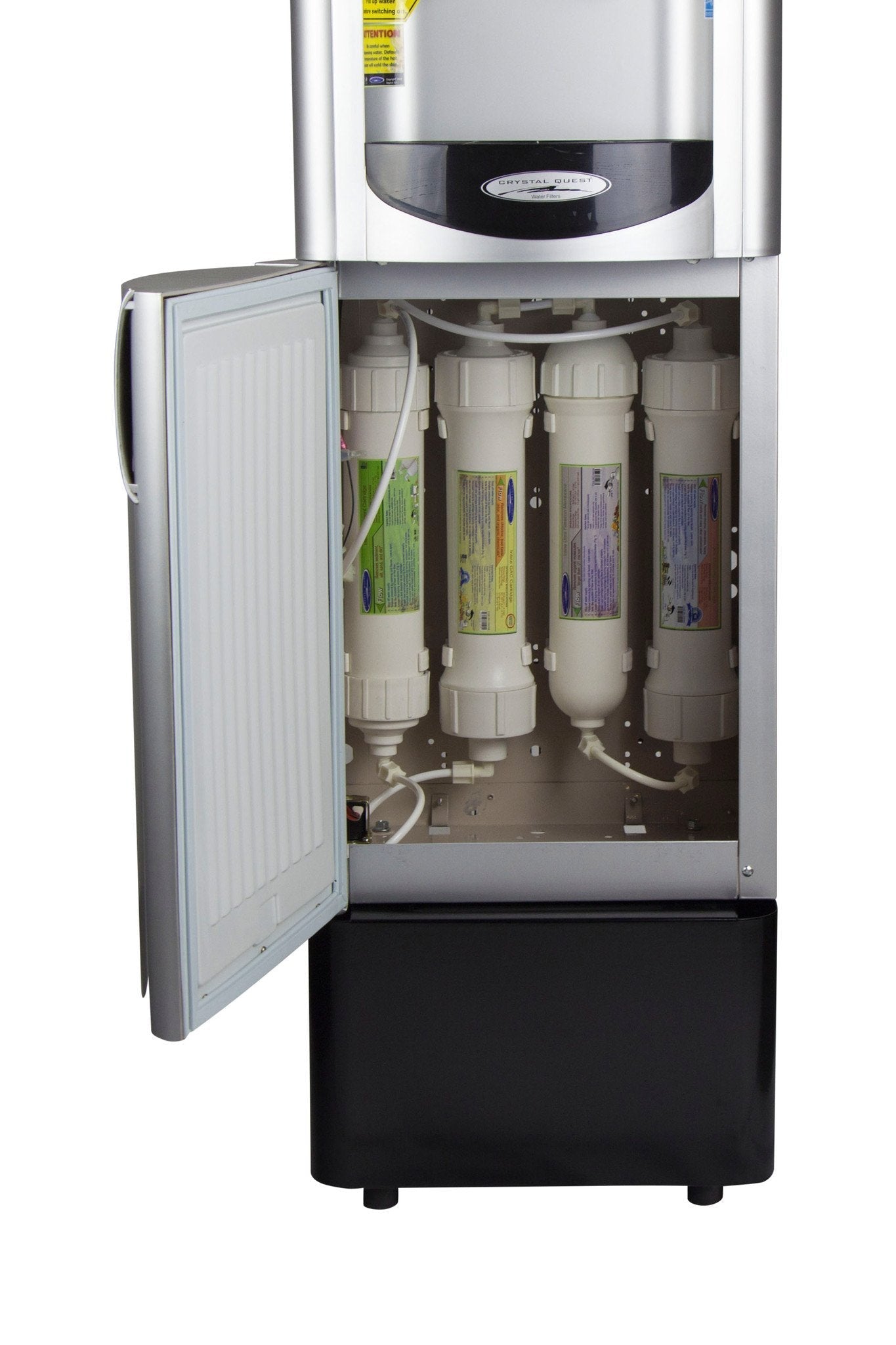

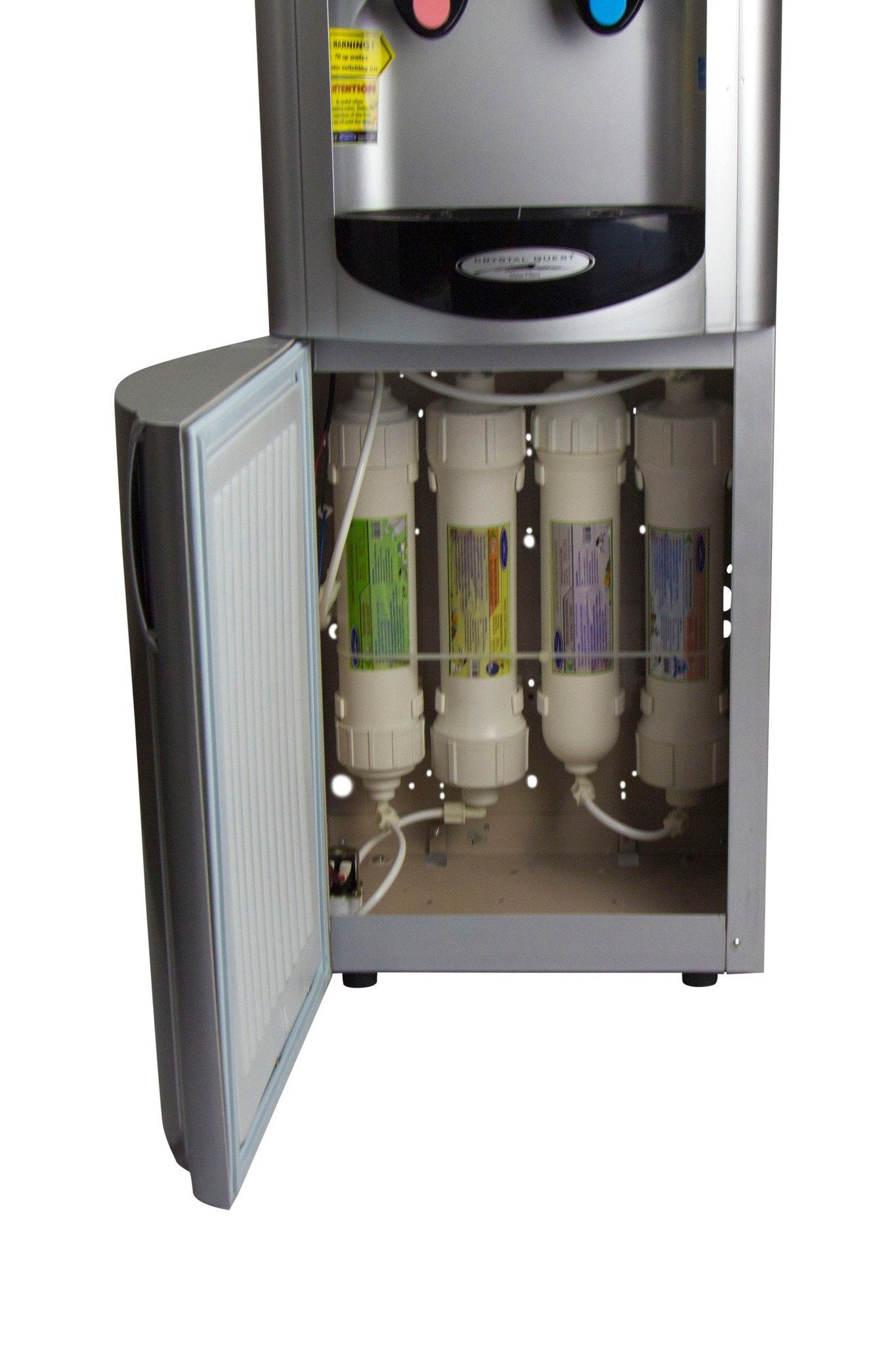

- Easy access front panel for service of filter system
- Easy to clean
|
Specifications
• Floor weight: 48 lbs. / 122kg
• Premium floor weight: 59 lbs. / 127kg
• Floor dimensions: 13”D x 13”W x 42”H / 33cm D x 33cm W x 107cm H
• Premium floor dimensions: 13”D x 13”W x 50”H / 33cm D x 33cm W x 127cm H
• Heating power: 500W, 6.2 amps
• Cooling power: 112W, 2.4 amps
• Hot water dispensing temperature: 176-194°F / 80-90°C
• Cold water dispensing temperature: 35-50°F / 1.7-10°C
• Hot water tank volume: 0.5 gallon / 1.9 liters
• Cold water tank volume: .54 gallon / 2.04 liters
• Heating capacity: 1.4 gallons per hour / 5.3 lph
• Cooling capacity: 1.95 gallons per hour / 7.4 lph
• Voltage: 110-120V / 220-230V-50/60 Hz
Replacement Cartridges
| Product Name |
SKU |
|
Sediment Cartridge (Inline) |
CQE-RC-04037
|
| GAC Cartridge (Inline) |
CQE-RC-04038
|
| UF Cartridge (Inline) |
CQE-RC-04039
|
| SMART Cartridge (Inline) |
CQE-RC-04040
|
