Dual-Membrane Purification for Superior Water Quality

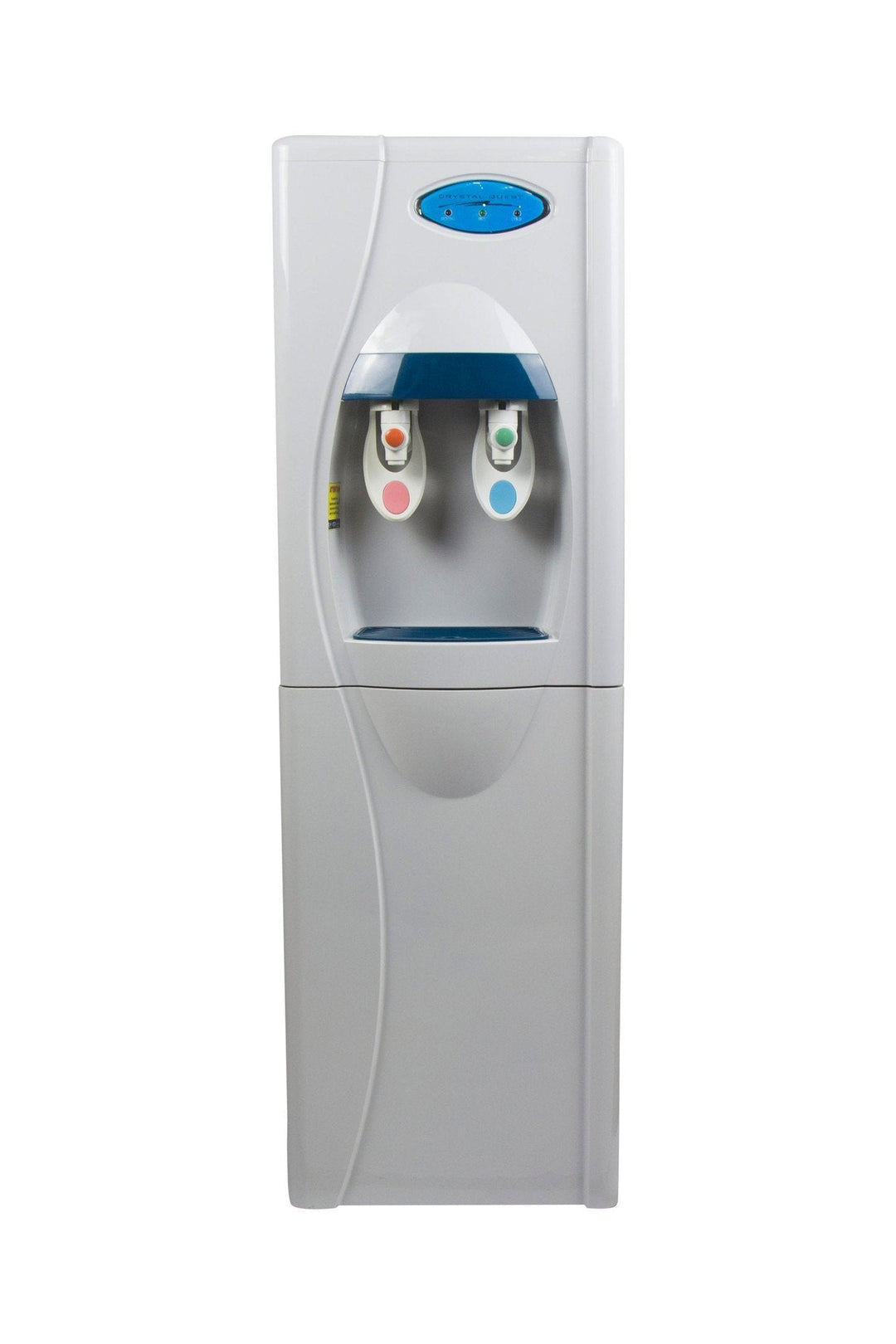

Why settle for basic filtration when you can have two advanced purification technologies working together? The Crystal Quest® Hybrid Ultrafiltration + Reverse Osmosis Bottleless Water Cooler combines 0.02-micron UltraFiltration (UF) with Reverse Osmosis (RO) to deliver cleaner, better-tasting water while providing hot and cold water on demand. Connected directly to your water line, this bottleless system eliminates the hassle of replacing heavy water jugs while providing a continuous supply of purified water for your home or office.
How the Hybrid UF + RO System Works
Stage 1: SHARP UltraFiltration (UF)
The first layer of protection is a 0.02-micron UltraFiltration membrane that helps reduce:
- Sediment and suspended solids
- Dirt, rust, and debris
- Many microorganisms
- Total Suspended Solids (TSS)
By removing these larger particles first, the UF membrane acts as a protective pre-filter that helps extend the life and efficiency of the Reverse Osmosis membrane.
Stage 2: Reverse Osmosis (RO)
Water then passes through the advanced RO membrane, which provides deeper purification by helping reduce:
- Dissolved solids (TDS)
- Water hardness minerals
- Heavy metals
- Fluoride
- Nitrates
- Salts and other dissolved contaminants
Contaminants that cannot pass through the membrane are flushed away through the drain line, resulting in highly purified drinking water.
Why Choose a Hybrid UF + RO System?
More Complete Filtration
The combination of UF and RO addresses both suspended particles and dissolved contaminants, providing broader protection than either technology alone.
Longer Membrane Life
UF removes sediment and suspended solids before they reach the RO membrane, reducing wear and helping extend filter life.
Better Taste & Hydration
Cleaner water enhances the flavor of coffee, tea, ice, and meals while encouraging healthier daily hydration.
Bottleless Convenience
Enjoy unlimited purified hot and cold water without storing, lifting, or replacing water bottles.
Cost-Effective & Eco-Friendly
Reduce reliance on bottled water while enjoying advanced filtration directly from your existing water supply.
Benefits
- Dual UF + RO purification for comprehensive filtration
- Helps reduce sediment, microorganisms, dissolved solids, and many common contaminants
- Hot and cold purified water available on demand
- No water bottles or deliveries required
- UF pre-treatment helps maximize RO performance and longevity
- Ideal for homes, offices, breakrooms, and shared spaces
|
TURBO UF |
TURBO UF/RO |
SHARP UF |
SHARP UF/RO |
Hybrid UF |
Hybrid UF/RO |
| No Plastic Jugs |
 |
|
|
|
|
|
| Cold Water |
|
|
|
|
|
|
| Hot Water |
|
|
|
|
|
|
| Child Safety for Hot Water |
 |
|
|
|
|
|
| UltraFiltration (UF) |
|
|
|
|
|
|
| Reverse Osmosis (RO) |
|
|
|
|
|
|
| Waste Water |
|
|
|
|
|
|
| Stainless Steel Holding Tank |
|
|
|
|
|
|
| Polypropylene Holding Tank |
|
|
|
|
|
|
Features
- Built-in filtration system
- Separate hot/cold power switch
- Automatic heating shut-off when hot temperature is reached
- Automatic float valve
- High efficiency sealed compressor cooling system
- Adjustable cold water
- Type 304 stainless steel hot and cold water tanks
- Easy access front panel for service of Filter system
- Easy to use and easy to clean
|
Specifications
- Weight: 60 lbs. .
- Dimensions: (D) 14.5” x (W) 14 3/4” x (H) 39.25”
- Total reservoir capacity: 3.2 gallons
- Heating power: 500W 6.2 Amps
-
Cooling power: 112W 2.4 Amps - TOTAL NEEDED 612W 8.6 Amps
- Hold water tank volume: 1.45 gal
- Hot water tank volume: 0.5 gal
- Cold water tank volume: 1.2 gal
- Cooling capacity: 1.95 gal per hour 35-50°
- Heating capacity: 1.5 gal per hour 185°F
- Voltage: 110V-120V 50/60Hz
- Pressure range: 30-60 psi (2.1-4.1bar)
- Optimum service flow: 0.50 GPM at 60 psi (1.1 lpm at 4.1 bar)
|
Specifications
• Weight: 60 lbs.
• Dimensions: (D) 14.5” x (W) 14 3/4” x (H) 39.25”
• Total reservoir capacity: 3.2 gallons
• Heating power: 500W 6.2 Amps
• Cooling power: 112W 2.4 Amps - TOTAL NEEDED 612W 8.6 Amps
• Hold water tank volume: 1.45 gal
• Hot water tank volume: 0.5 gal
• Cold water tank volume: 1.2 gal
• Cooling capacity: 1.95 gal per hour 35-50°
• Heating capacity: 1.5 gal per hour 185°F
• Voltage: 110V-120V 50/60Hz
• Pressure range: 30-60 psi (2.1-4.1bar)
• Optimum service flow: 0.50 GPM at 60 psi (1.1 lpm at 4.1 bar)
Replacement Cartridges
| Product Name |
SKU |
| GAC Cartridge (Inline) |
CQE-RC-04038
|
| UF Cartridge (Inline) |
CQE-RC-04039
|
| SMART Cartridge (Inline) |
CQE-RC-04040
|
| 50 GPD RO Membrane |
CQE-RC-04041
|
Product Manual
Water-Cooler-Manual
Product Brochure
WaterCoolors-Hybrid+RO
