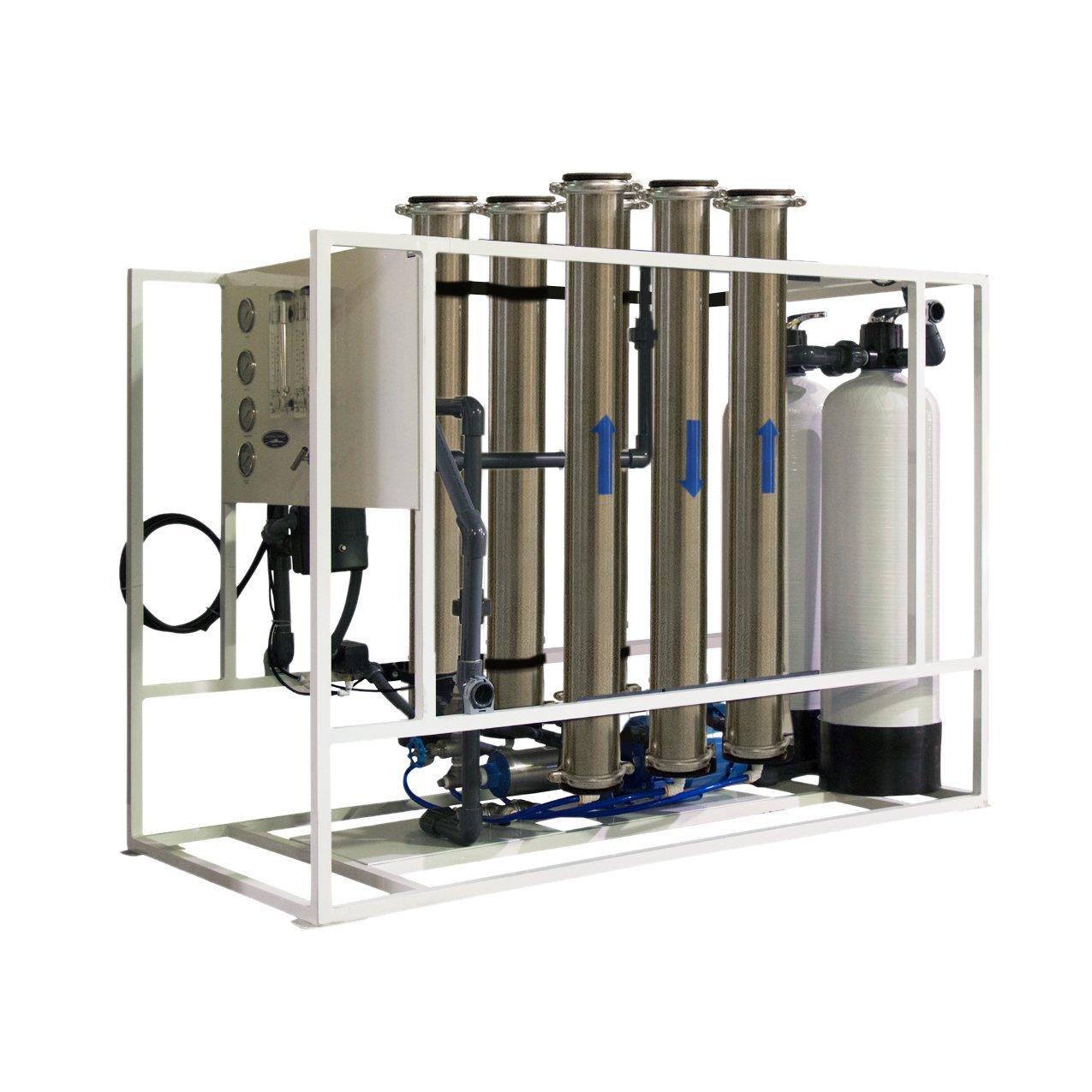

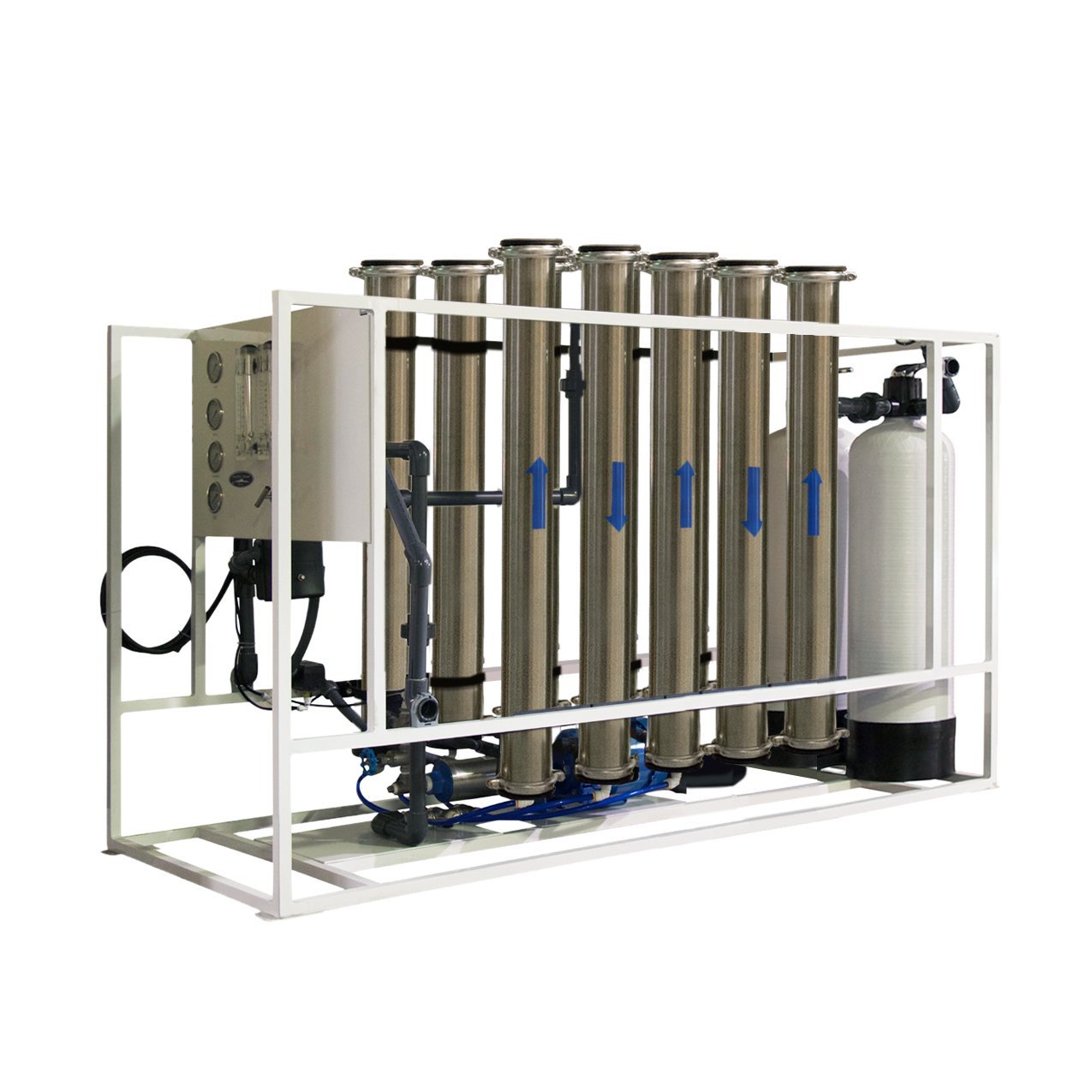

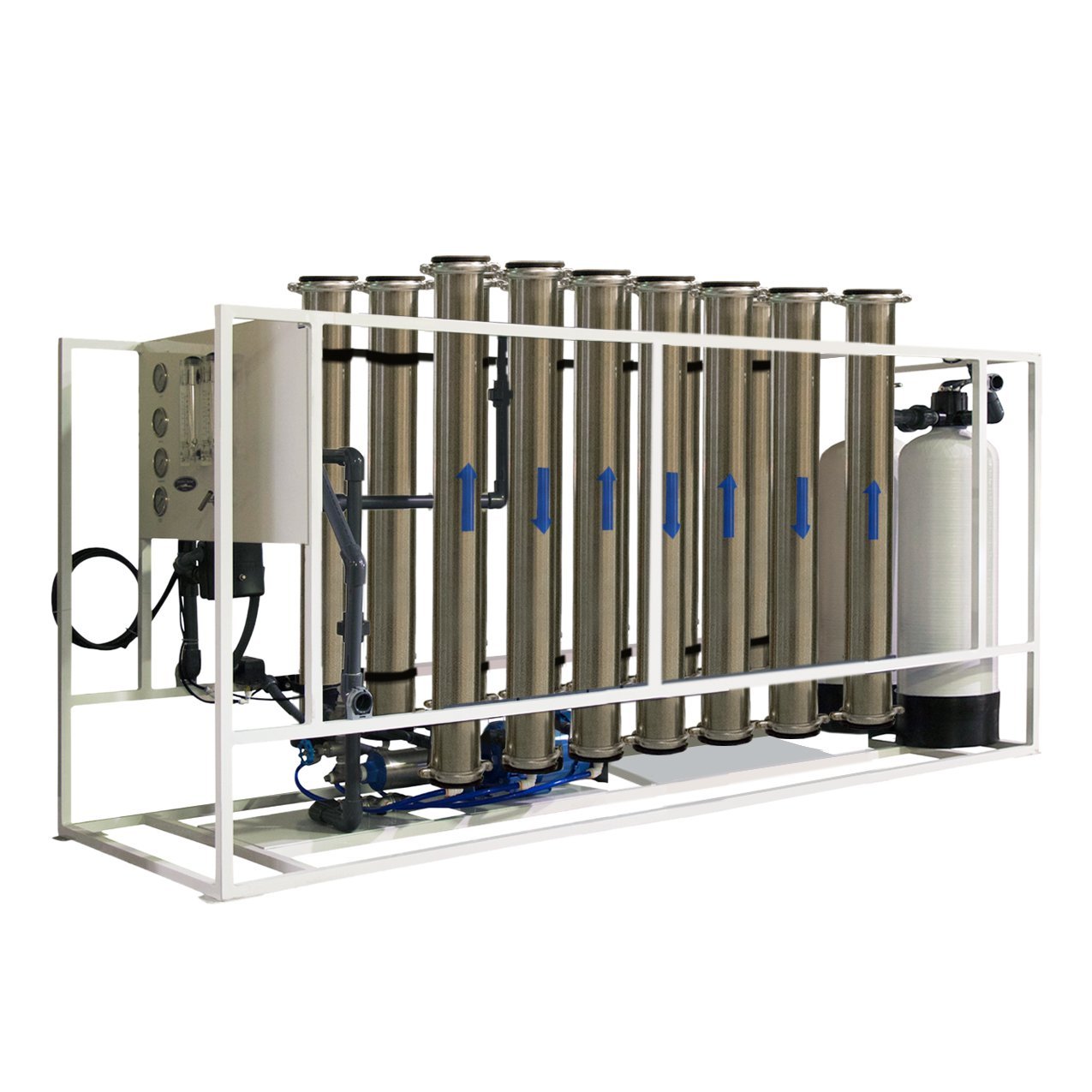

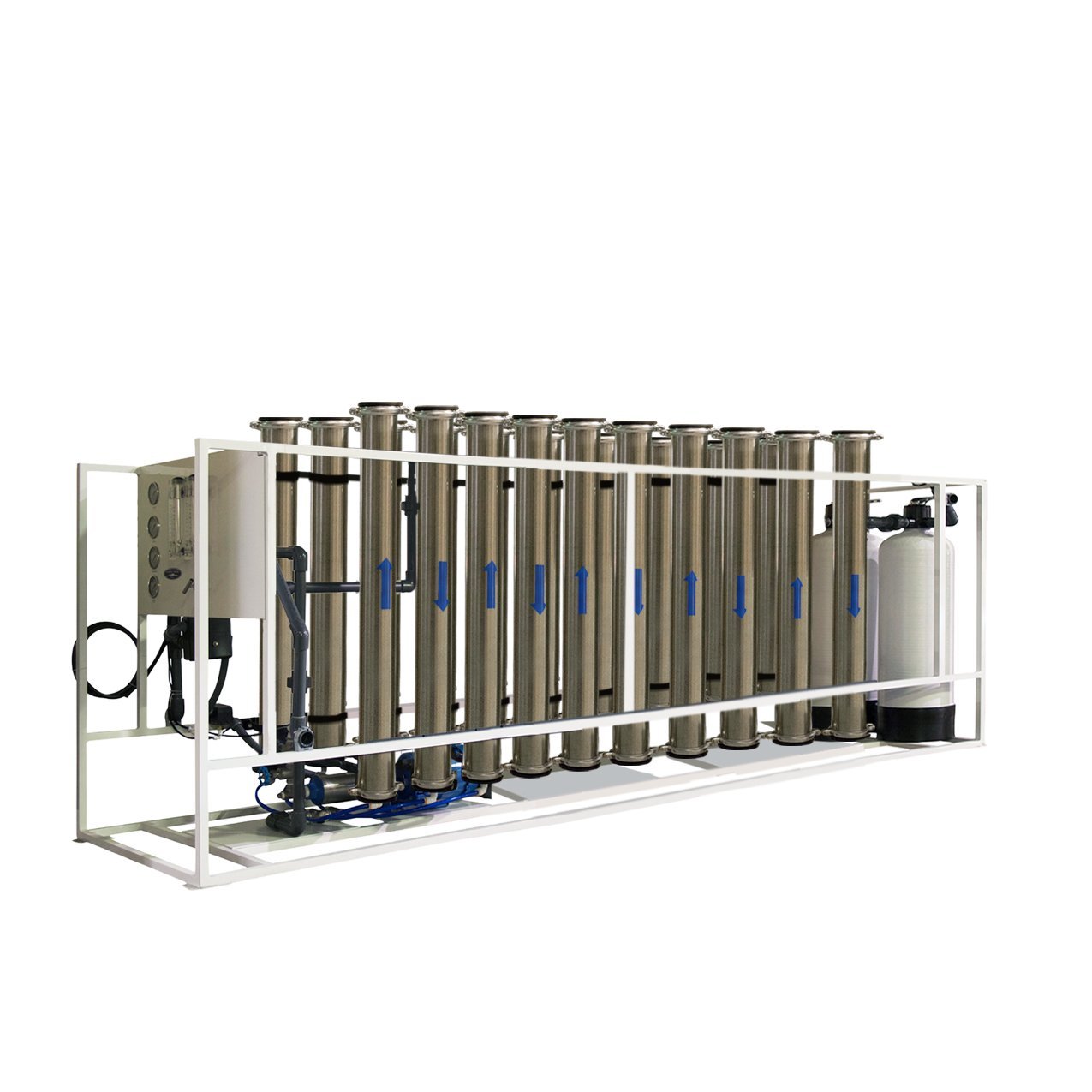

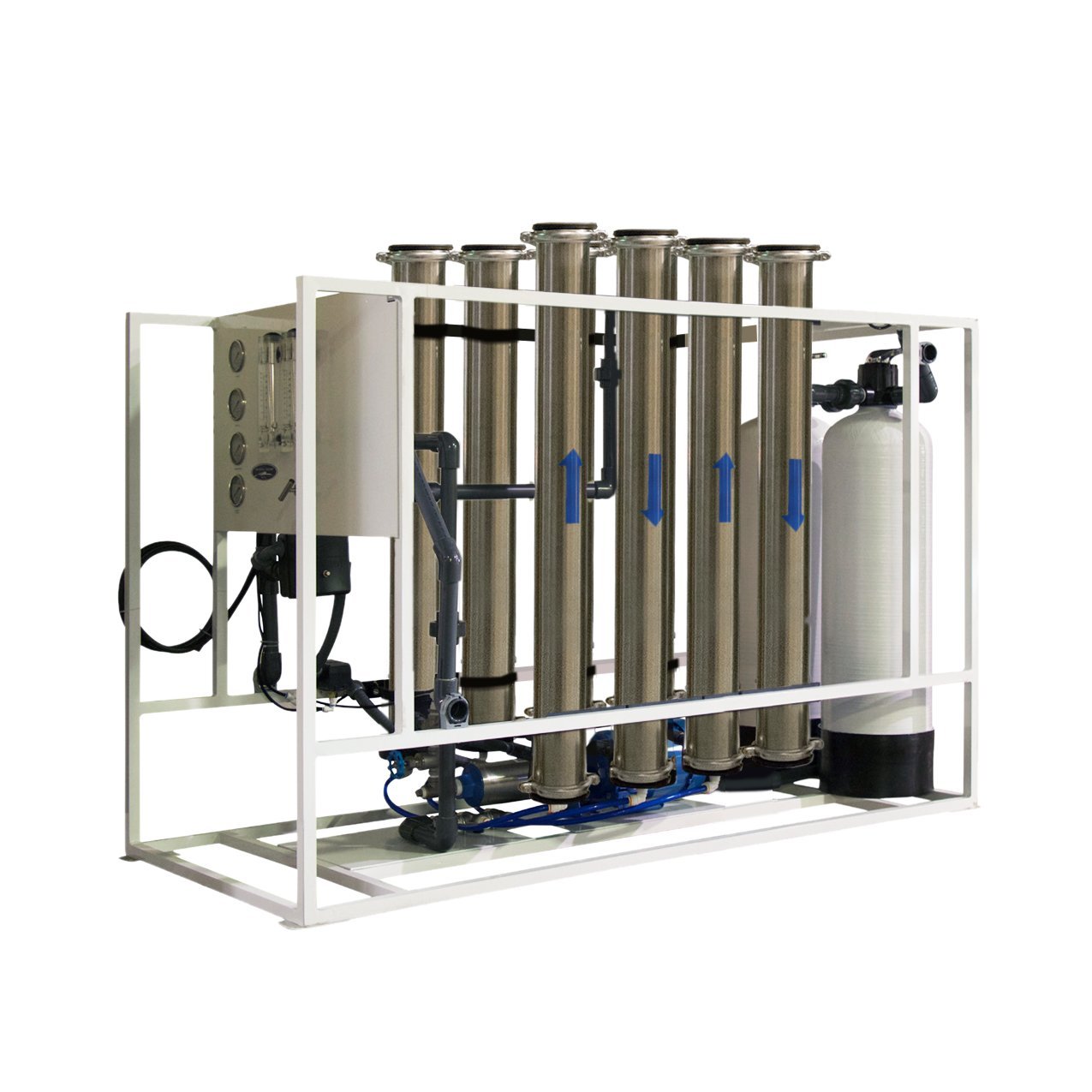

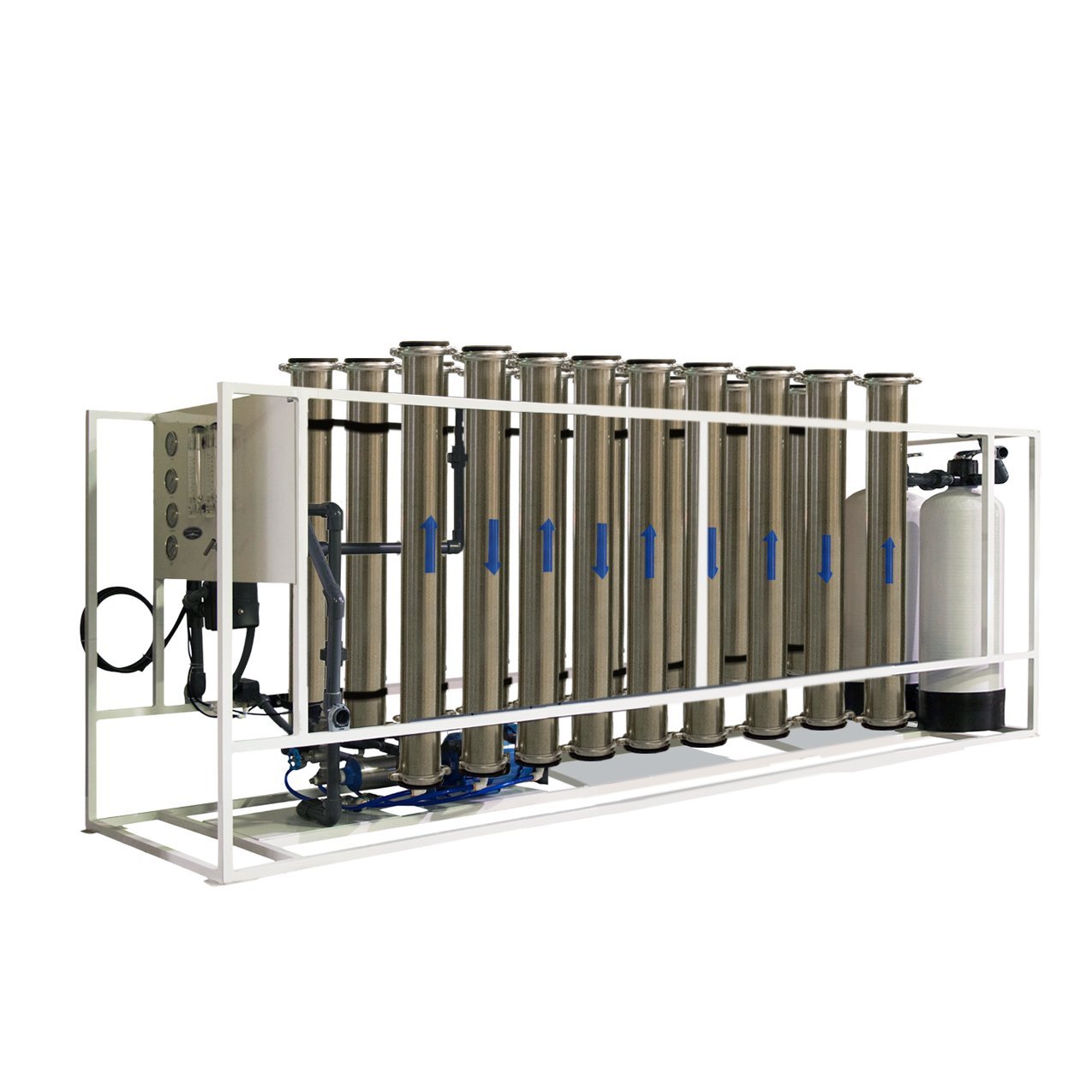

Commercial High-Flow Reverse Osmosis System, 10,000-50,000 GPD
A heavy-duty Crystal Quest commercial RO system for facilities that need high-capacity purified water, technical sizing, and automations.
10,000-50,000 GPDCommercial production range for demanding applications.
Automation includedS-150 controller, pressure protection, shut-off controls, and TDS display features.
Manufacturer warranty honoredWarranty terms vary by manufacturer documentation and selected configuration.
Which model size fits your facility?
Start with daily demand, incoming water conditions, available space, feed pressure, and feed GPM. This preview uses verified product-page specs as comparison points; final sizing should be confirmed before ordering.
Built for commercial and industrial water demand
This high-flow RO system is positioned for manufacturing, food processing, hospitality, agriculture, healthcare, commercial buildings, and other high-demand facilities. Exact application fit depends on incoming water conditions and required production capacity. These systems combine advanced membrane technology, intelligent automation, and heavy-duty construction to provide reliable long-term operation with low maintenance requirements.Â
Every system utilizes premium Thin Film Composite (TFC) membranes housed in durable stainless steel membrane vessels to deliver exceptional contaminant reduction while maintaining high production rates. Integrated pretreatment with 0.5-micron Zeolite media and coconut shell granular activated carbon helps protect membrane performance by reducing sediment, turbidity, chlorine, and other contaminants before they reach the RO stage.
- Commercial production range from 10,000 to 50,000 GPD
- Factory assembled, pre-plumbed, pre-wired, and performance tested
- Open-frame design for service access
- Heavy-duty coated aluminum frame
Technical highlights
TFC membranes4040 TFC HF1 membranes listed across the model family.
Stainless steel vesselsDesigned for commercial reverse osmosis, nanofiltration, and ultrafiltration elements.
S-150 controllerStandard controller with relay outputs, inputs, TDS/conductivity inputs, and LED status display.
Operating conditions45 psi minimum feed pressure, 150 psi operating pressure, pH range 3-11, max TDS 2000 ppm.
Upgrade paths
- Ethernet connection unlocks access to remote monitoring, real time alerts, faster troubleshooting, and performance tracking.
- C-200 controller upgrade options
- Concentrate recycle valve -Â Allows for an increase of RO systems efficiency by recycling back wastewater into the feed stream and increasing the system recovery.
- Blending valve - Allows for a mixture of feed water into final RO permeate water to achieve desirable permeate TDS.
- Chemical pump outlet - Provide an integrated power source with the RO system for the connection of a chemical feed pump.
- Permeate sample port - allows for evaluation of individual membrane
- 110V/220V, 50/60Hz options
- Stainless-Steel Rotary Vane Pump: Offers a longer lifespan and increase resistance to high TDS feed water and corrosive materials, such as dosing chemical and antiscalants.
- SWP Digital Dual TDS Controller: Allow for simultaneous monitoring of both feed TDS and permeate TDS levels, helping to monitor the RO system salt rejection and membrane performance.
- SWP Digital TDS Controller: Allow for monitoring either feed TDS and Permeate TDS levels
- SWP Digital TDS/Conductivity Controller: Allow for the monitoring of the RO permeate water TDS and conductivity levels, useful in evaluating overall system performance IF Computer Controller with feed flush: Allow for pre-treatment lockout functionality, tank level input, features a convenient LED status display indicator for increase ease of use.
- Single Wood Crate
Before you buy checklist
Water analysisConfirm incoming water conditions, TDS, hardness, and pretreatment needs.
Daily demandEstimate required GPD and peak usage before selecting model size.
Feed GPMConfirm the facility can meet the minimum feed GPM for the selected system.
Space and accessReview dimensions, service clearance, freight access, and installation location.
Drain and waste lineConfirm wastewater handling, plumbing, and code requirements.
ElectricalVerify voltage, hertz, controller options, and facility power requirements.
Benefits:
- Compact Space Saving
- Components Easily Accessible
- Expandable and Lightweight Design
- Fully Equipped and Customizable
- Pre-plumbed, wired, and assembled
- Low Operation Costs
- Low Maintenance Costs
- Easily Maintenance and servicing
- Factory Tested and Preserved
- CE Compliant
- 1-Year Limited Warranty
- Made in the USA
| Gallons Per Day (GPD) @ 77° F |
| GPM |
10000 |
15000 |
20000 |
30000 |
40000 |
50000 |
| Model No |
CQE-CO-02031 |
CQE-CO-02032 |
CQE-CO-02033 |
CQE-CO-02034 |
CQE-CO-02035 |
CQE-CO-02036 |
| Dimensions |
49" x 33" x 54" |
63" x 39" x 54" |
63" x 39" x 54" |
41" x 143" x 80" |
41" x 143" x 80" |
41" x 143" x 80" |
| Weight (lbs) |
385 |
400 |
415 |
N/A |
N/A |
N/A |
| Concentrate Re-Circulate |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
| Auto Flush |
Optional |
Optional |
Optional |
Optional |
Included |
Optional |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
*All Systems come 110V unless requested otherwise
The Crystal Quest S-150 Control Panel (Included) has features and options to allow the OEM flexibility to meet many different specifications. The controller has five relay outputs, four dry contact inputs, and two TDS/conductivity inputs. A 2 line by 20 characters LED display provides the operating status of the RO unit along with the water quality, operating hours, and water temperature. This controller is standard for high-flow commercial reverse osmosis systems but has an additional upgrade option for ethernet integration.
The Crystal Quest C-200 Microprocessor Controller (Upgrade) is a versatile controller for reverse osmosis systems that offer advanced features and options which make it an exceptional choice for large commercial and industrial reverse osmosis systems.
The Crystal Quest C-200 Controller has the flexibility to meet many specifications with six (6) switch inputs, five (5) analog inputs, six (6) relay outputs, and two (2) TDS/conductivity inputs. The 4 line by 20 character LCD display provides sensor readings, hours of operation, temperature, alarms, and operating status of the RO system.
Our Stainless Steel Membrane Pressure Vessels enhance system appearance and allow you to take full advantage of the membrane capability. These vessels are considered safer and more reliable than PVC pressure vessels. Designed for continuous long-term use as a pressure vessel for reverse osmosis, nanofiltration, and ultra-filtration elements which are used on typical commercial reverse osmosis water treatment systems at pressures up to 300 PSI.Â
Frequently asked questions
What capacity does this commercial RO system produce?
The product family is available in 10,000, 15,000, 20,000, 30,000, 40,000, and 50,000 GPD configurations.
Is pretreatment required?
Pretreatment is commonly recommended for commercial RO planning to help protect membranes, but requirements depend on source-water conditions. Confirm with a water analysis and product documentation.
Can this system be customized?
Yes. The product page lists upgrade paths including controller upgrades, Ethernet connection, concentrate recycle valve, blending valve, chemical pump outlet, and sample ports.
Does this product ship freight?
This is a large commercial system and may require freight coordination. Freight details should be confirmed before ordering.
Which size should I choose?
Choose based on daily production demand, peak demand, feed GPM, water analysis, available space, and facility requirements. Water Wellness Works can help compare configurations before purchase.
Not sure which GPD size fits your facility?
Send your use case, estimated daily water demand, water source, available space, and any water test results. We can help compare model sizes before you order.
