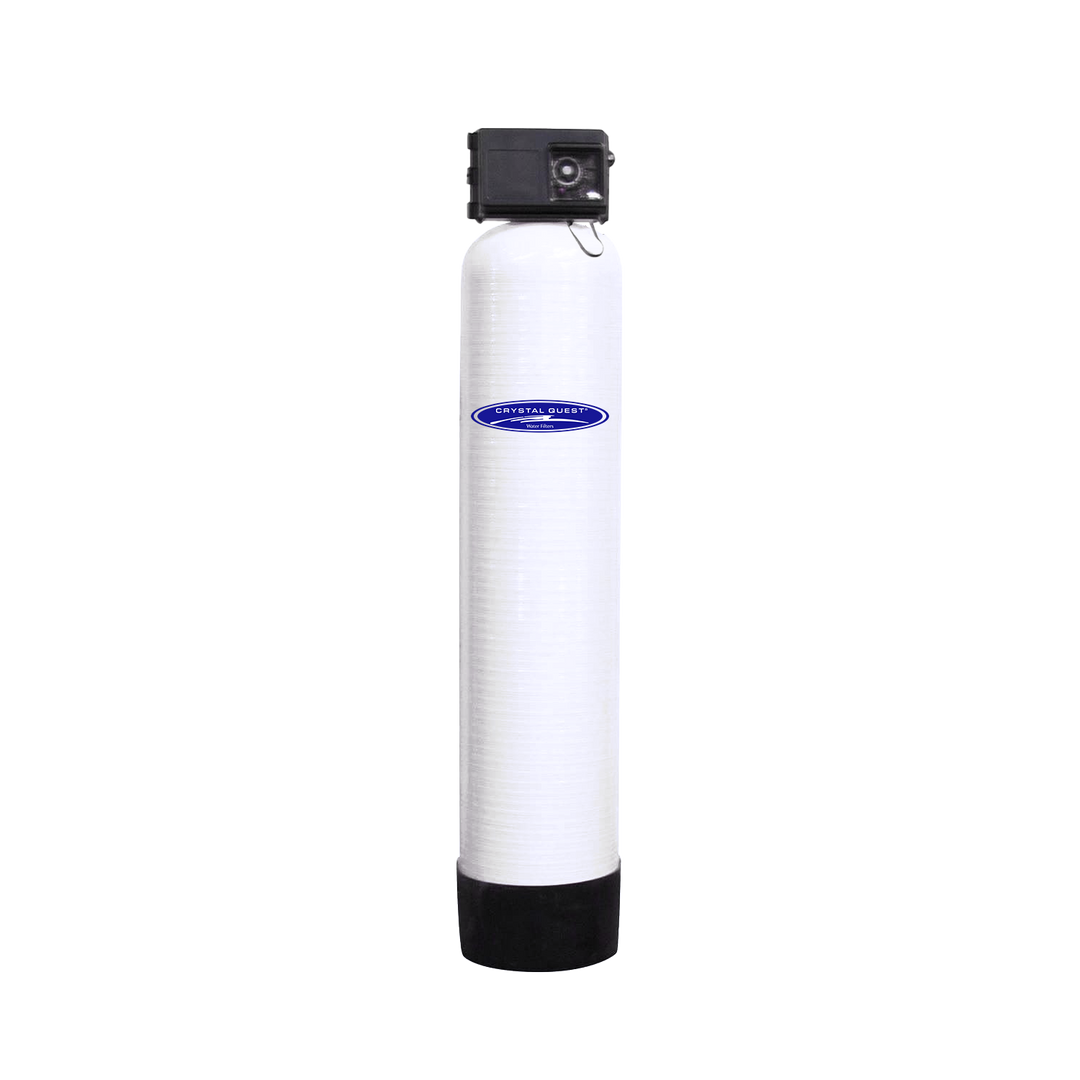

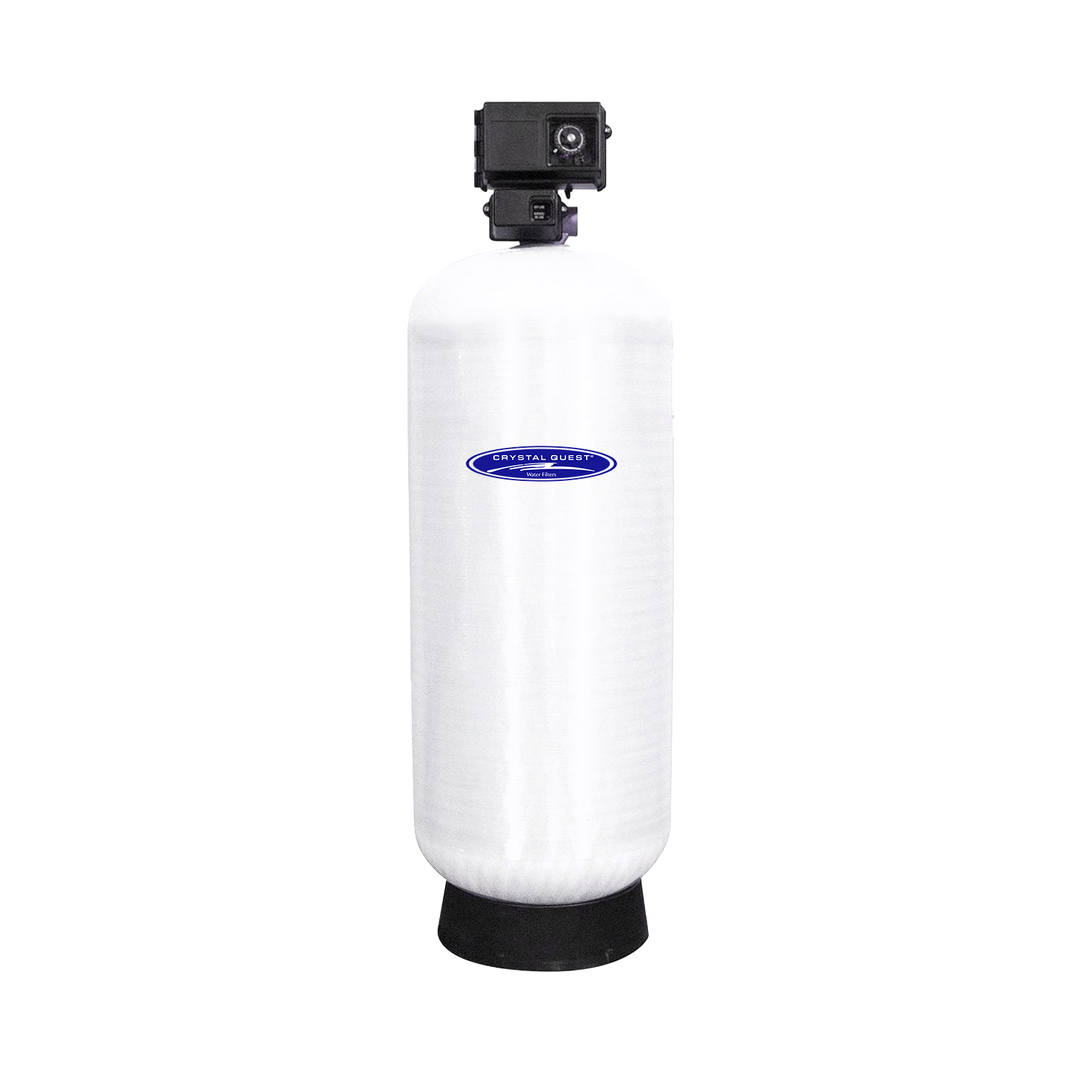

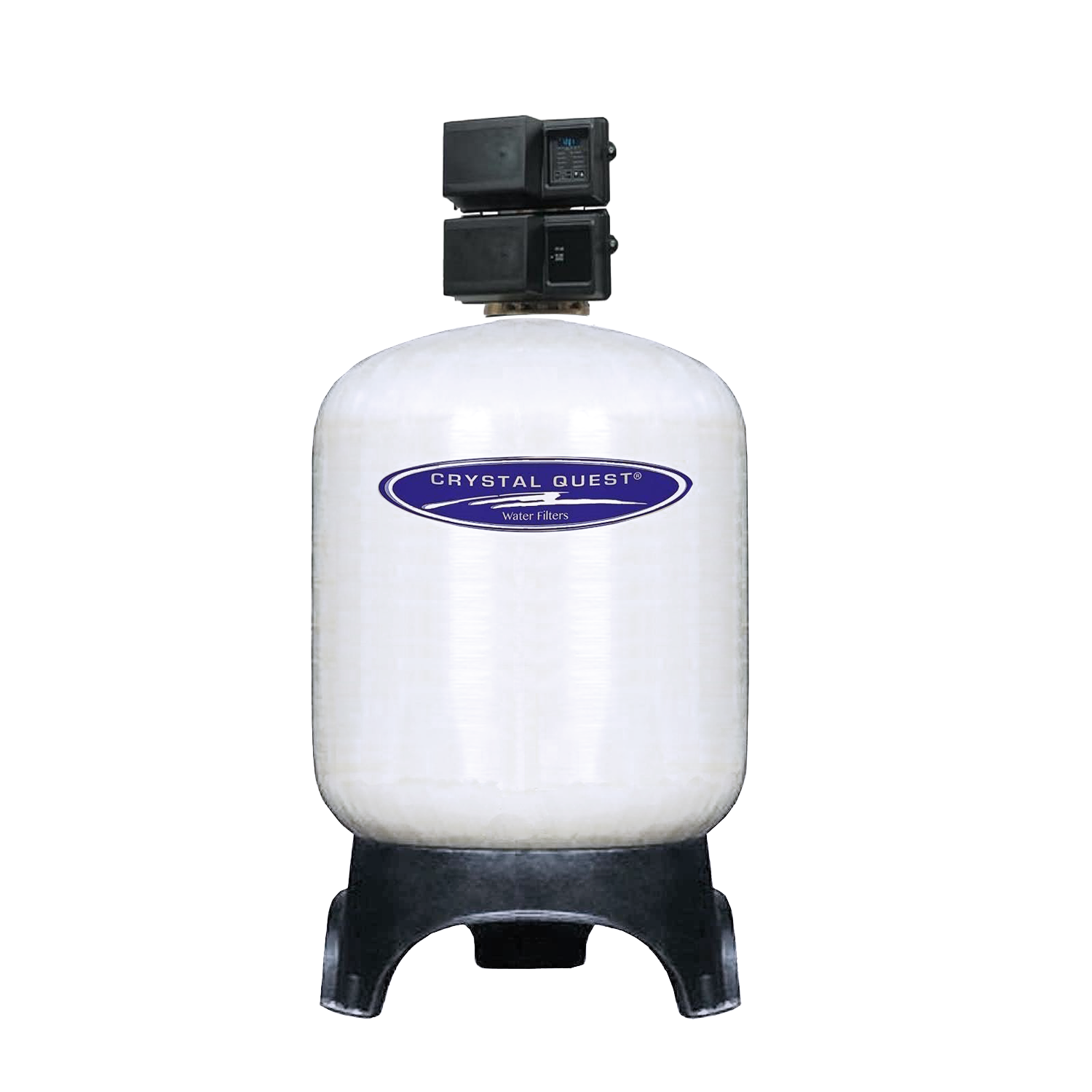

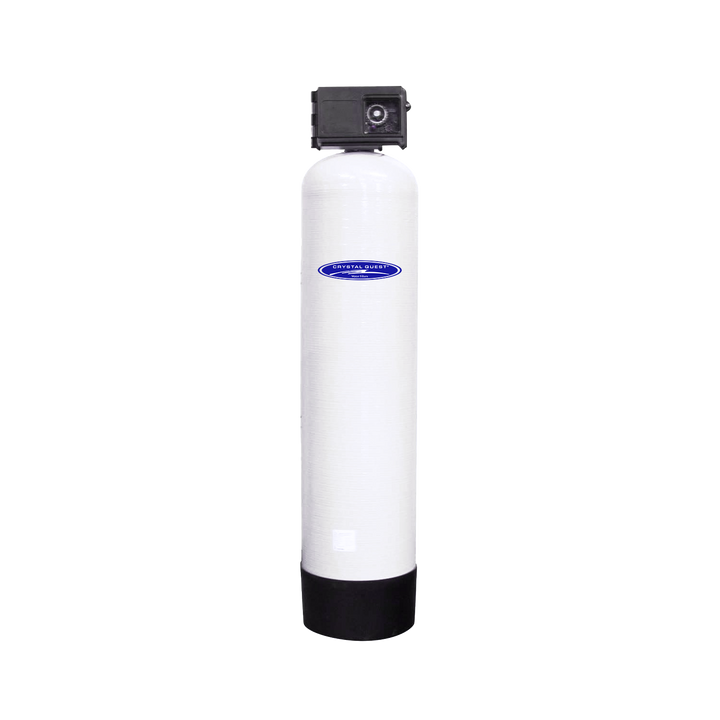

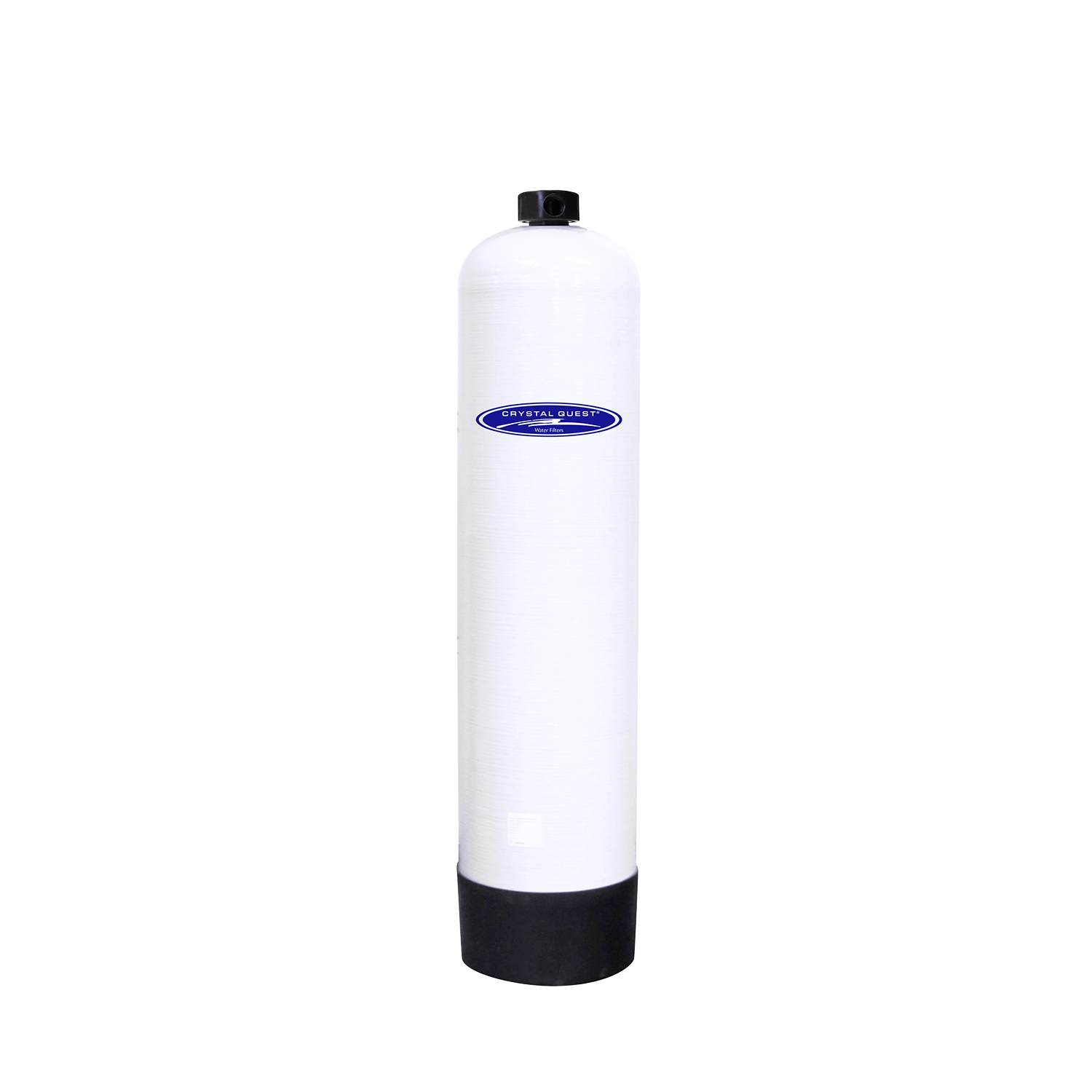

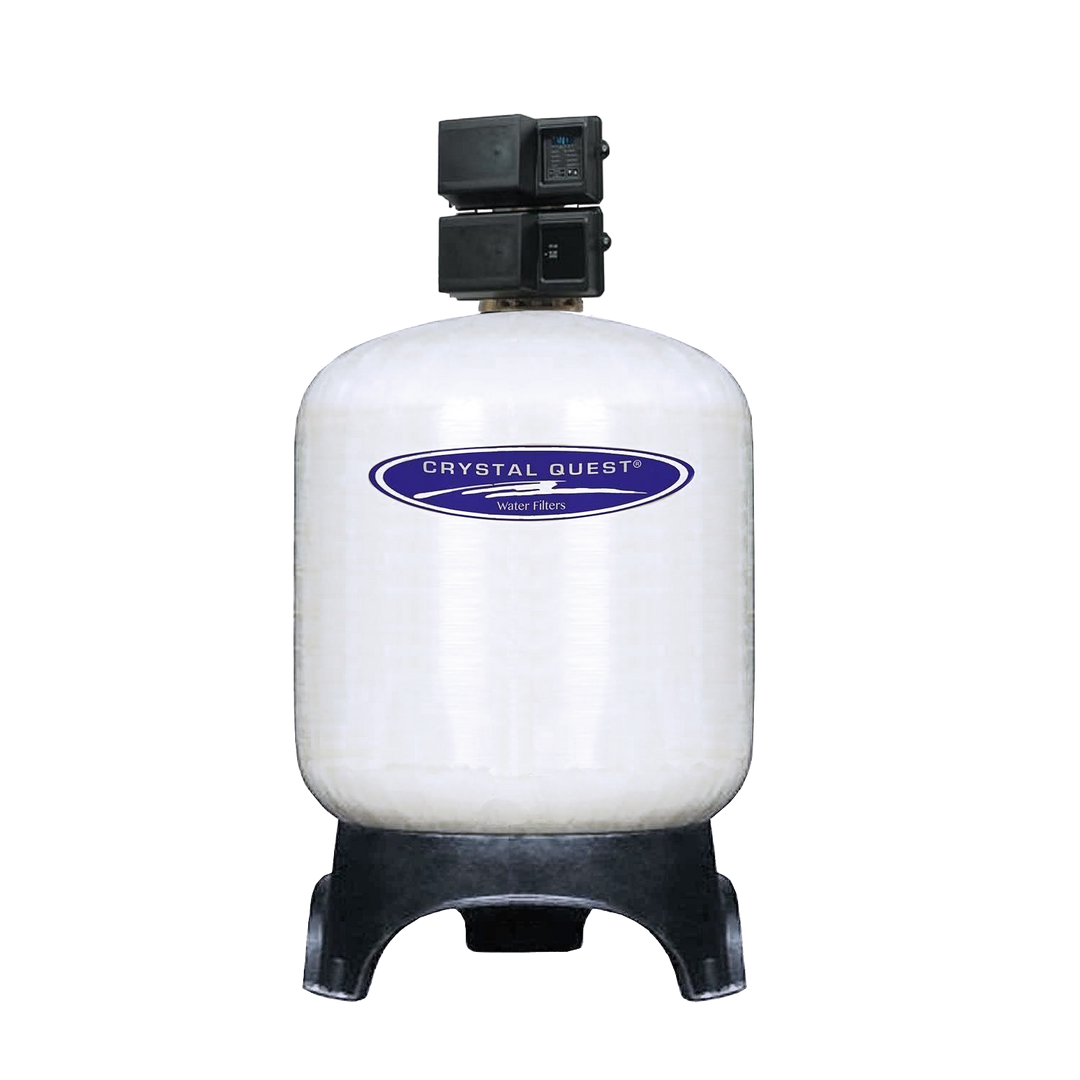

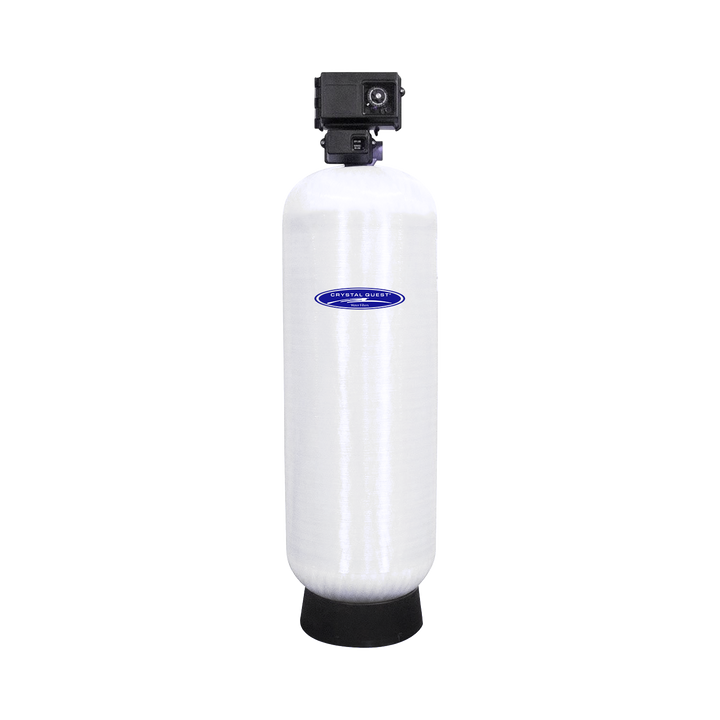

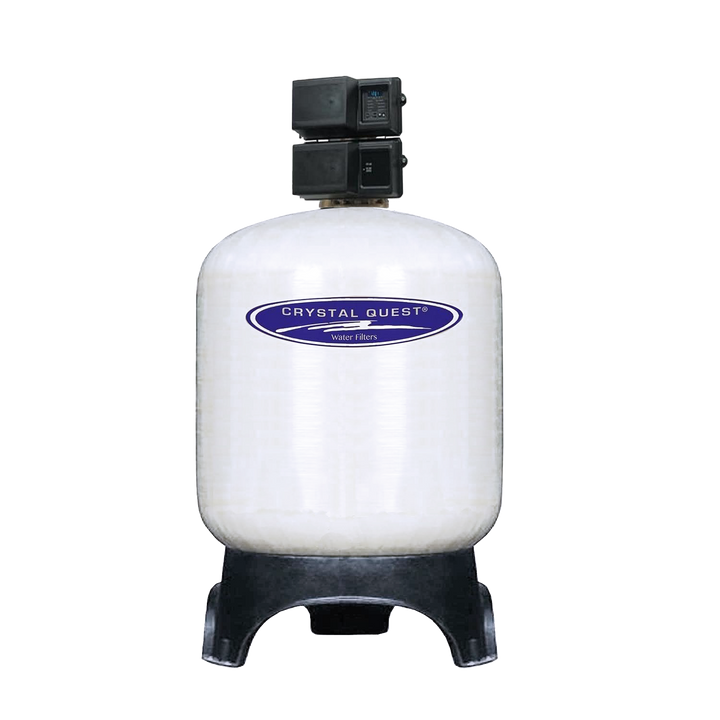

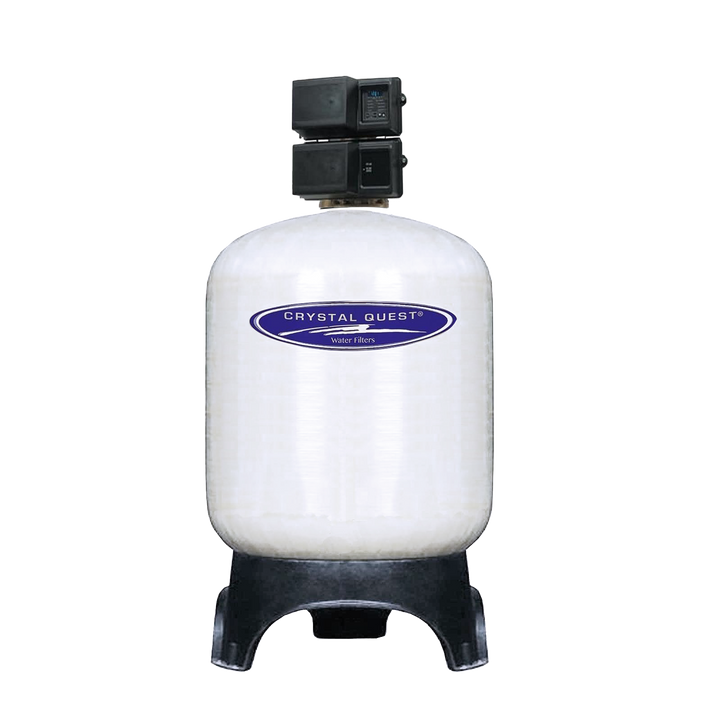

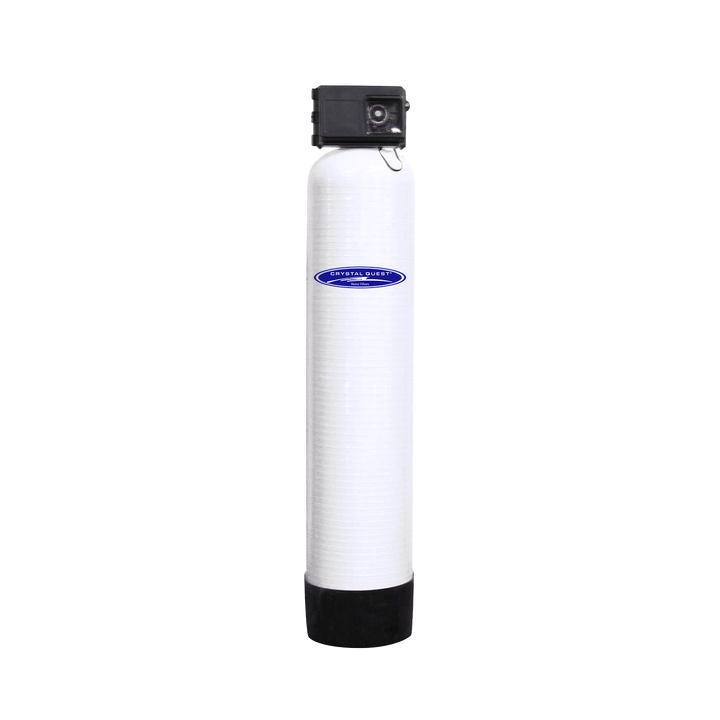

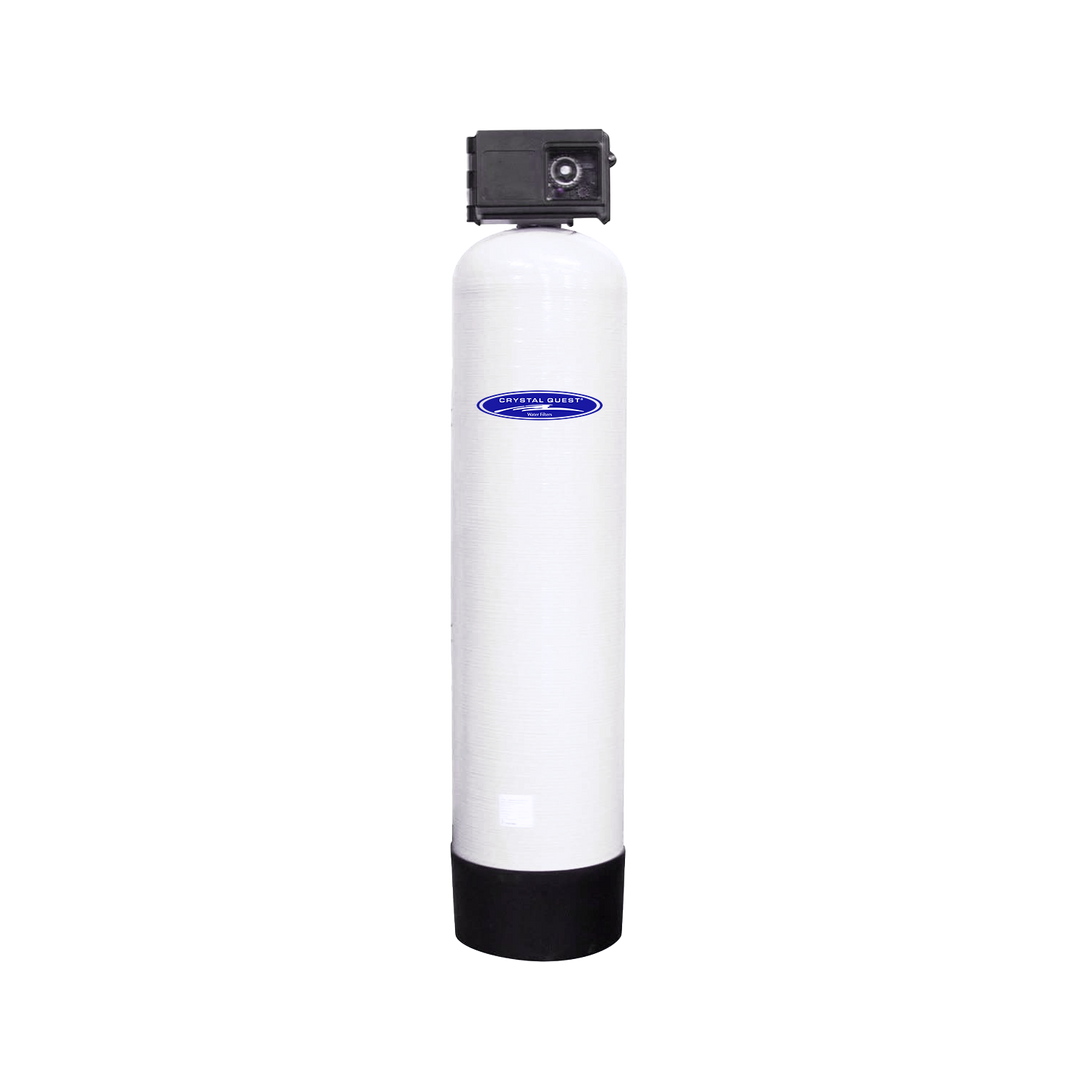

Features
- Timer Control Valves

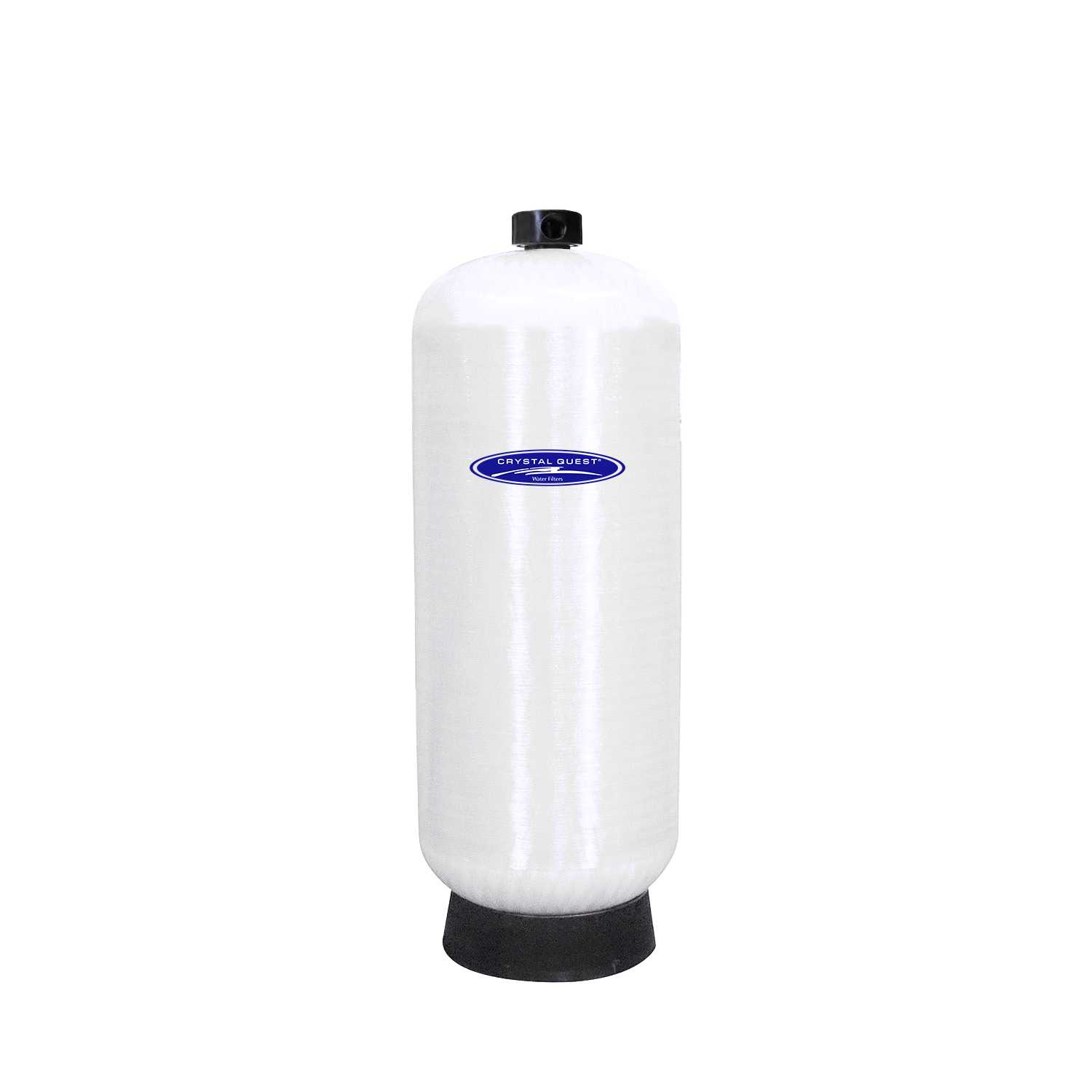

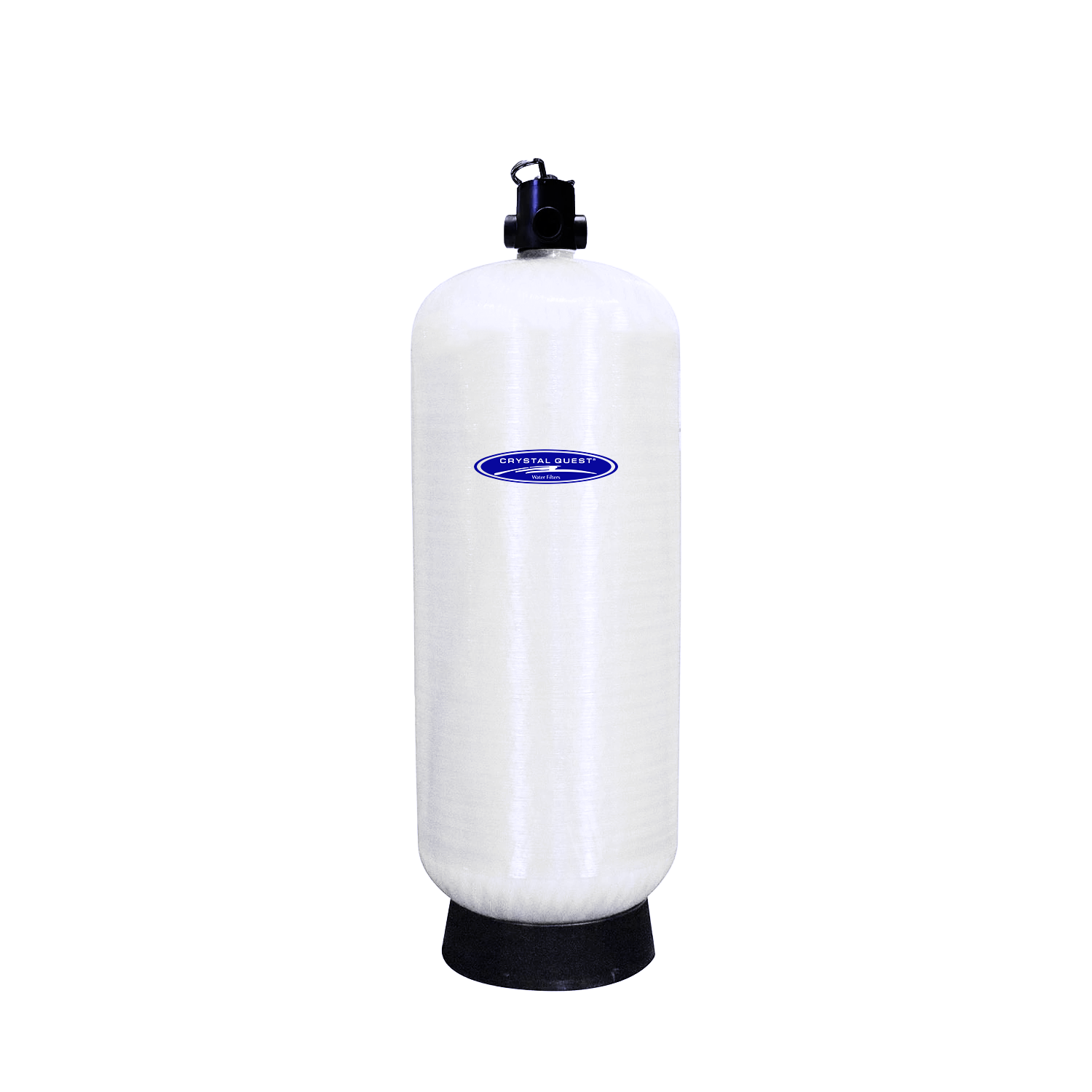

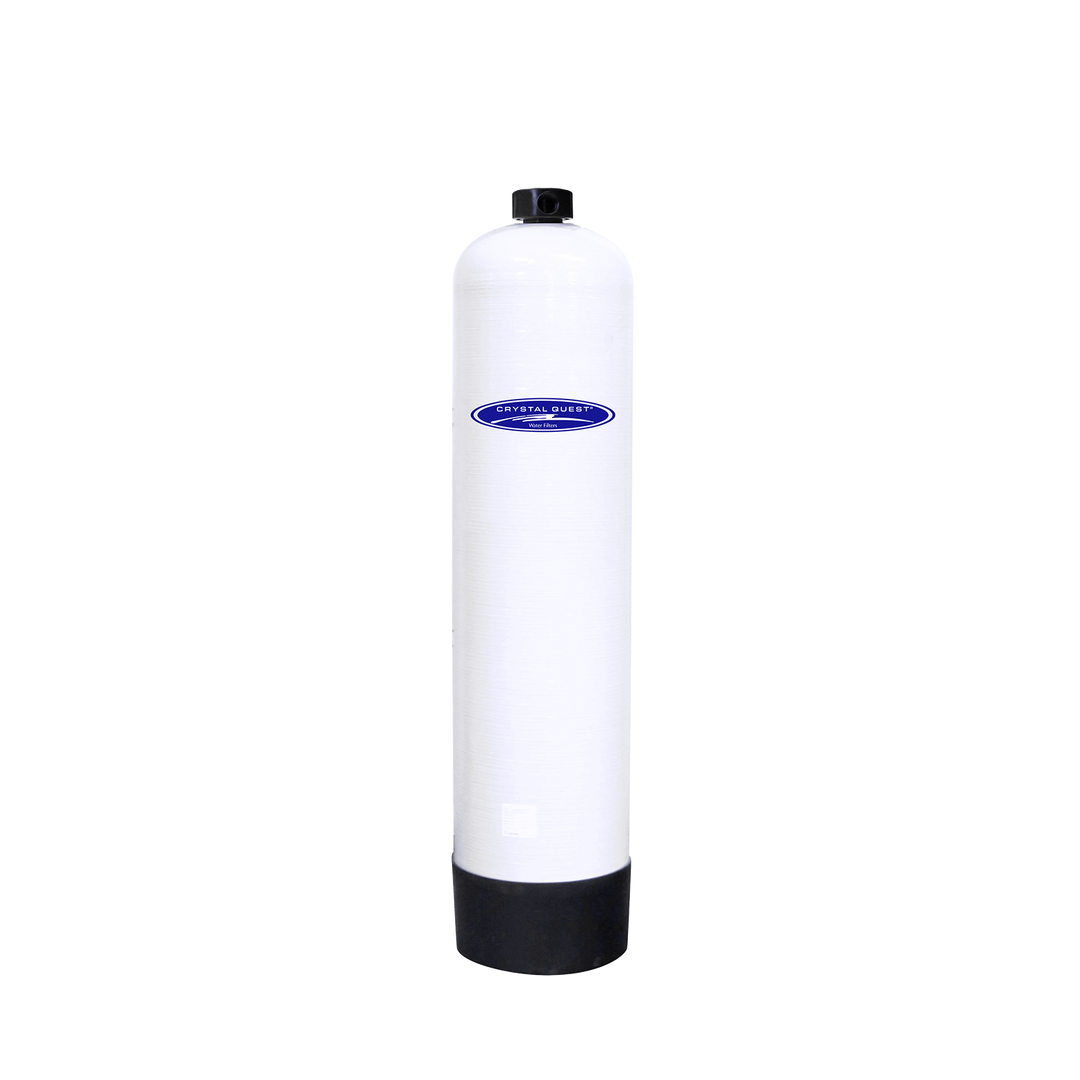

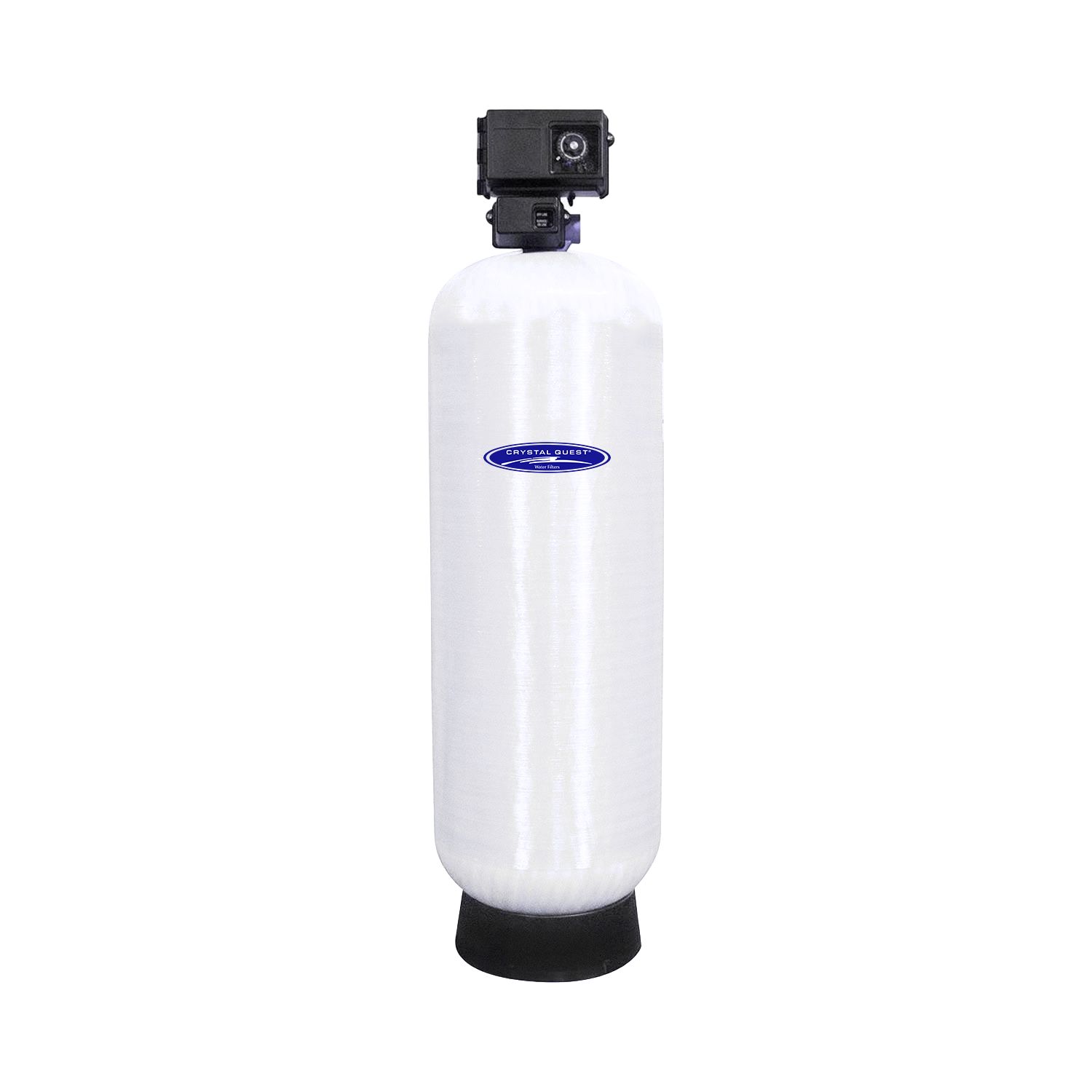

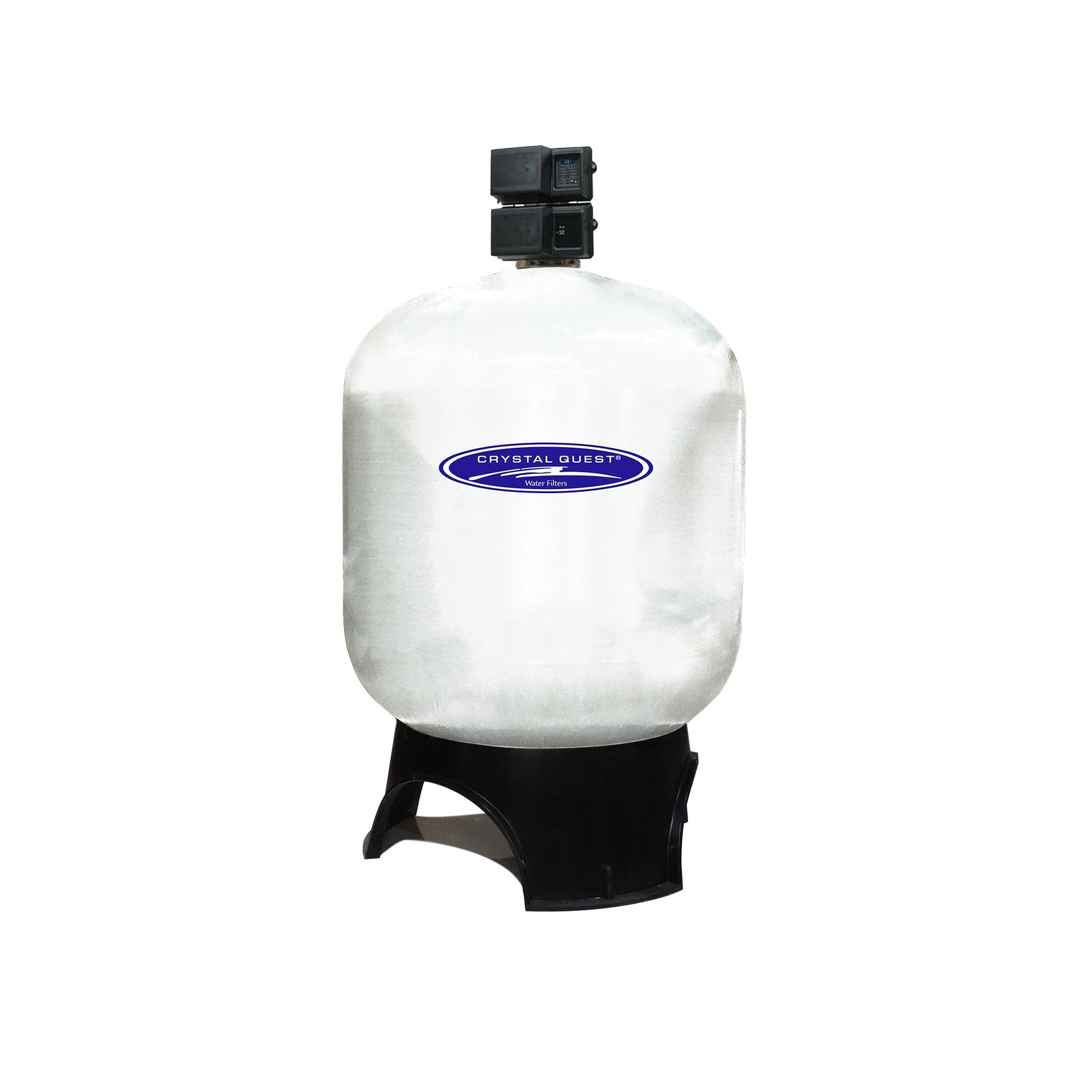

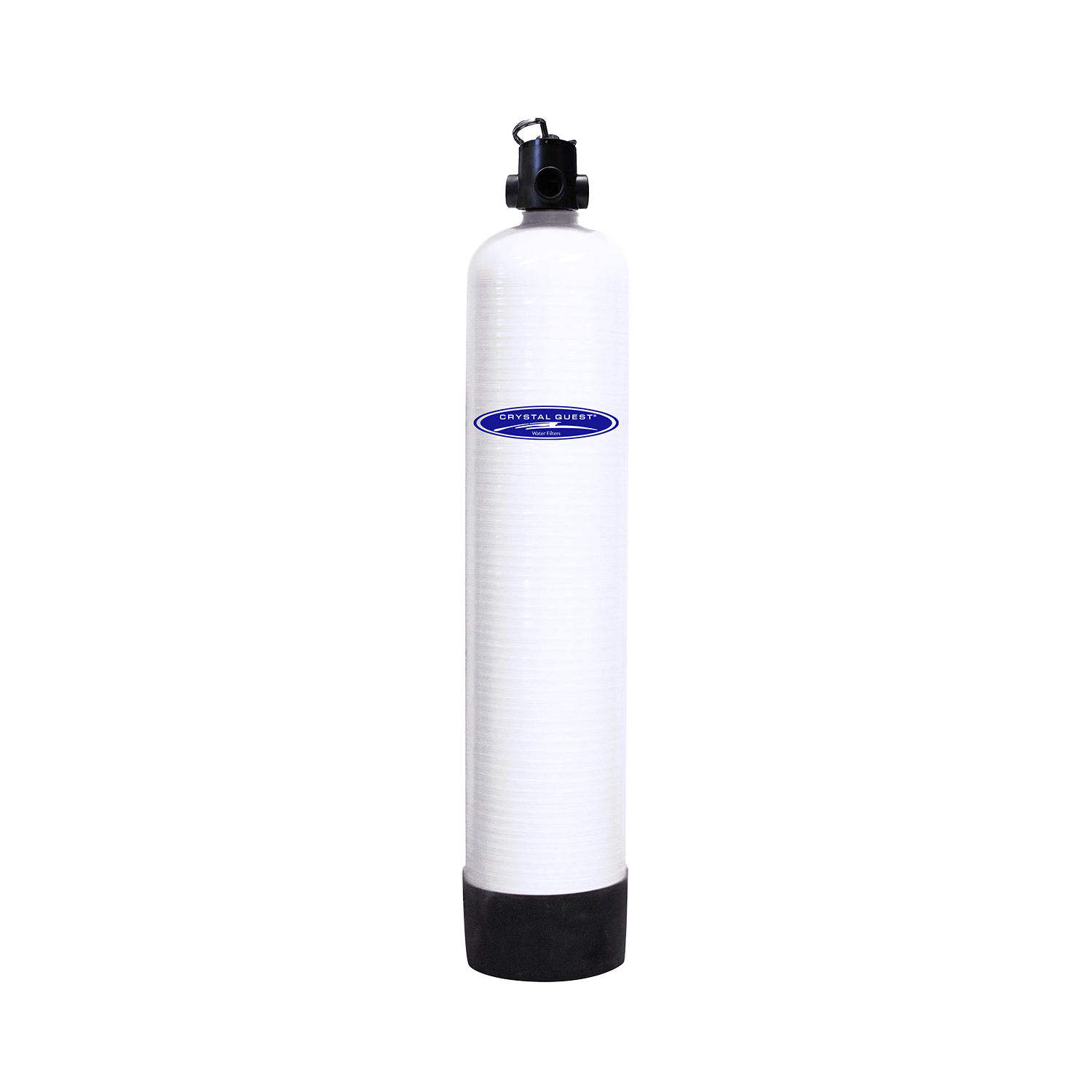

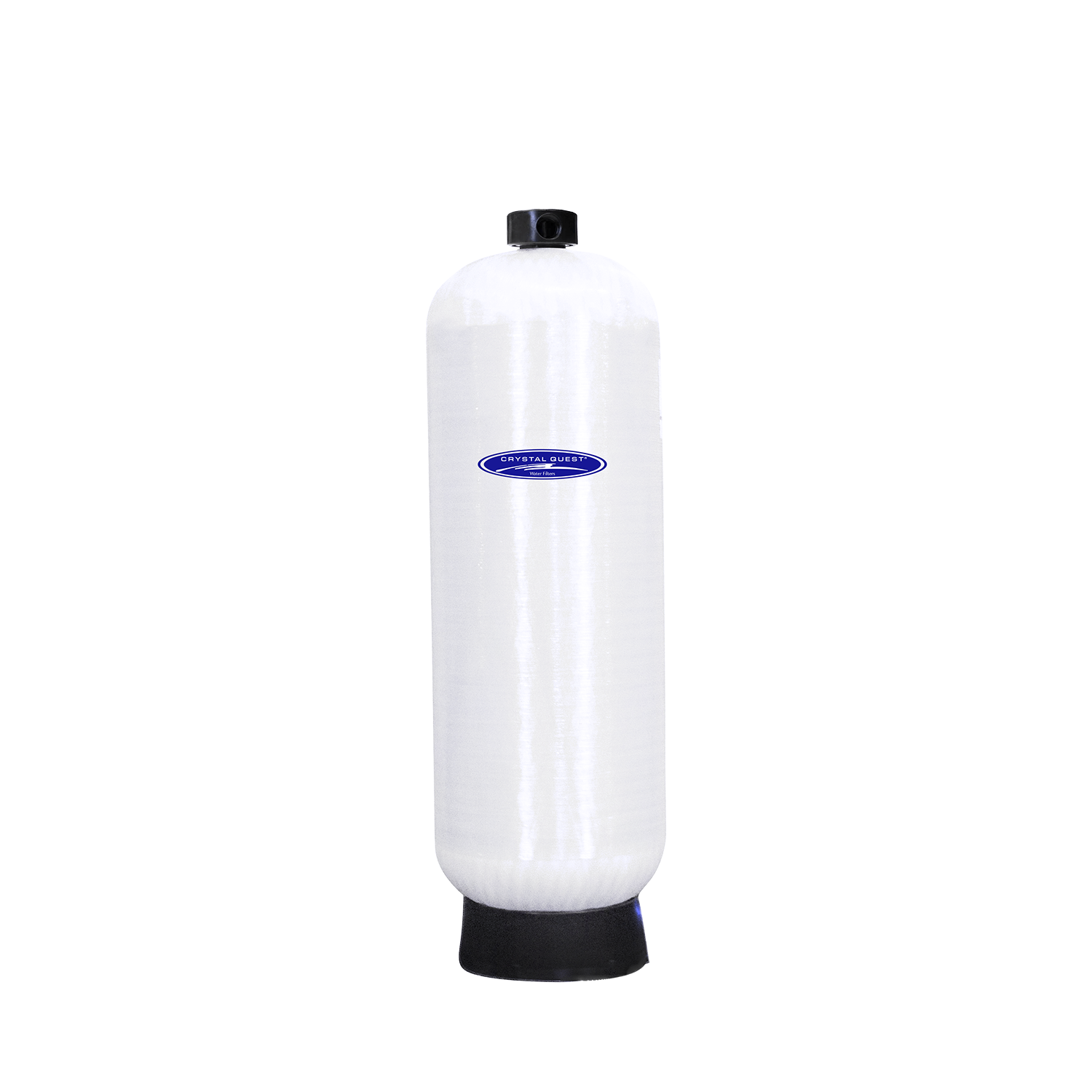

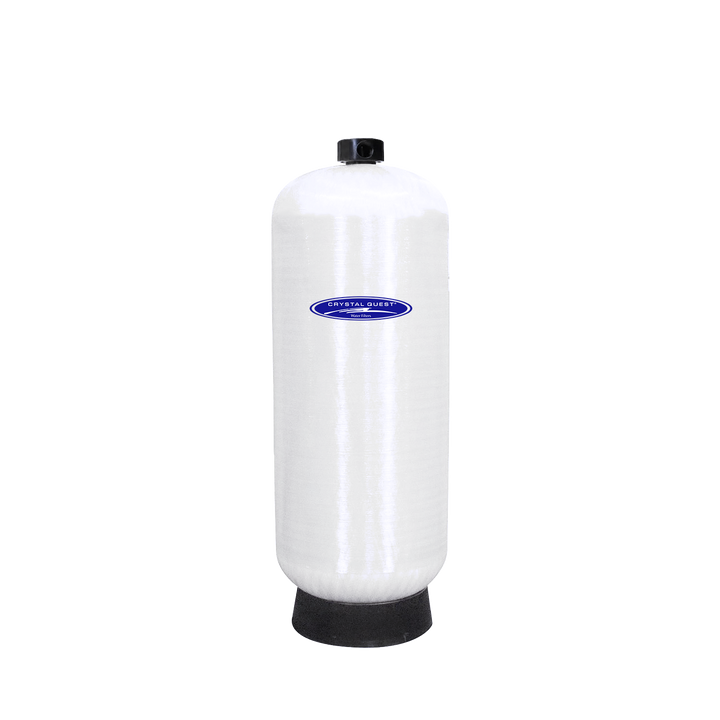

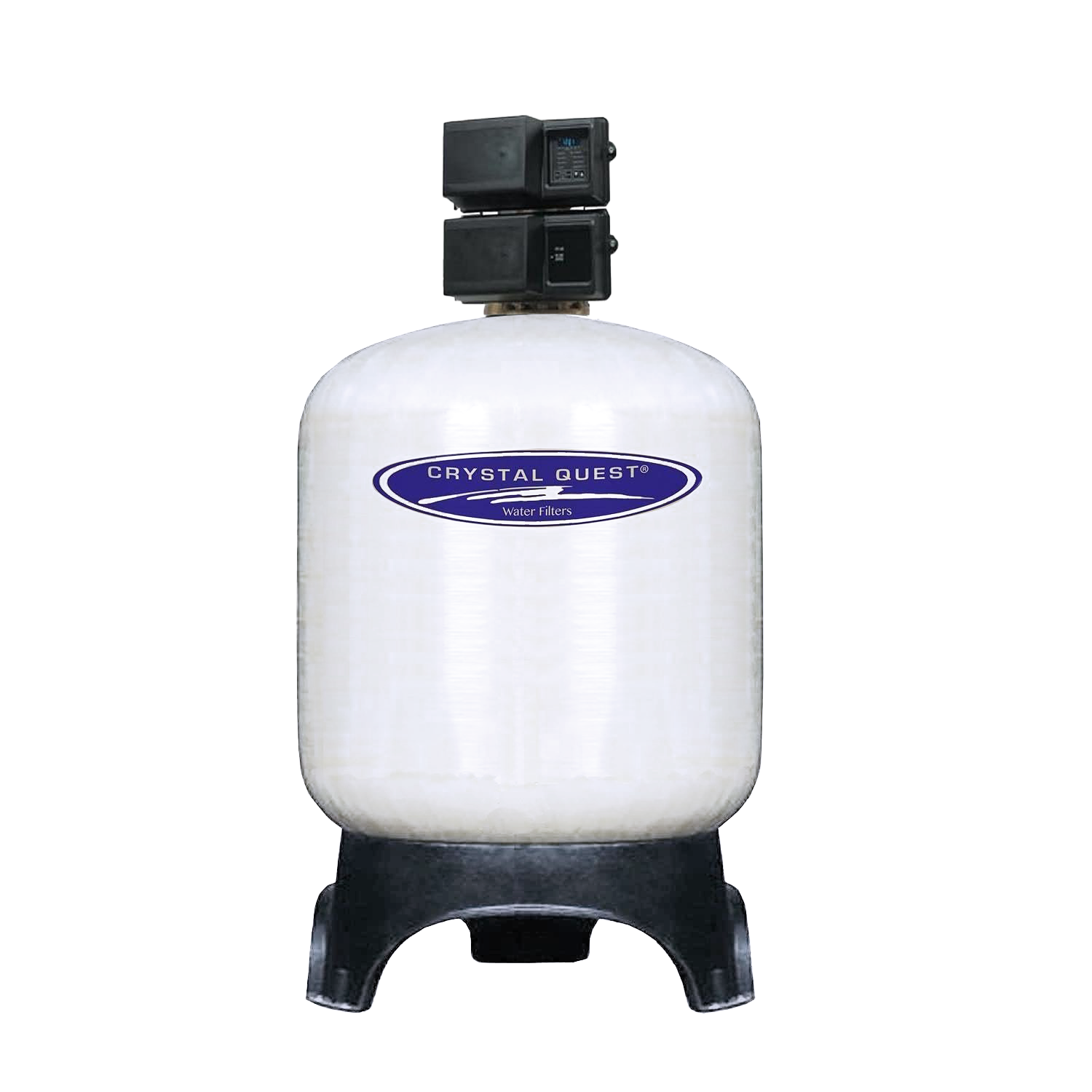

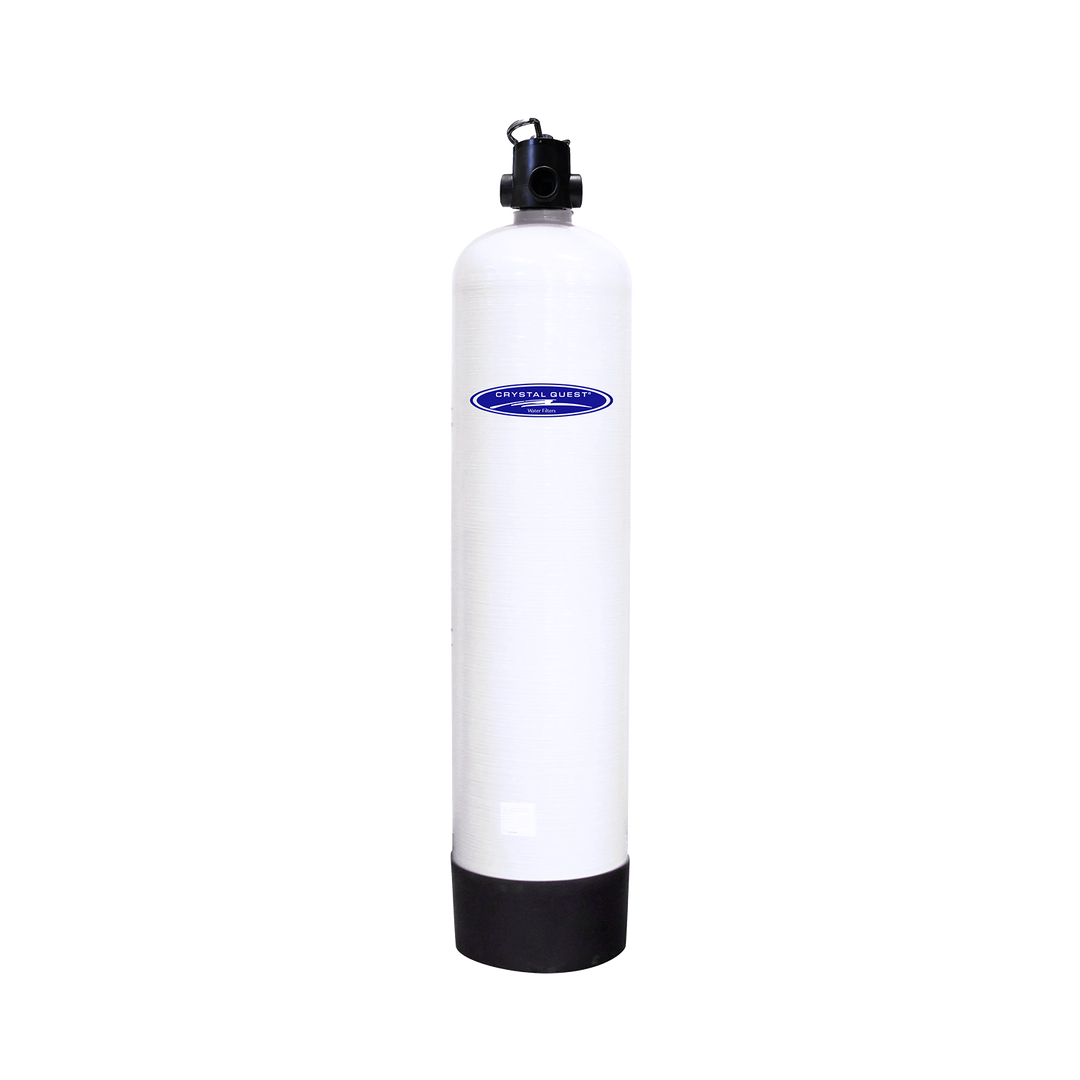

- Heavy duty composite fiberglass tanks
- High Flow Distributor
- All brass, motor driven control valve with fully adjustable backwash cycles
- Self-adjusting backwash controller
- Flow controller to limit backwash flow
- Engineered for commercial & industrial use
Fluoride (F-) is a common constituent of many minerals. Municipal water treatment plants commonly add fluoride to the water to prevent tooth decay. Generally, they try to maintain a level of 1.5 - 2.5 mg/l. Concentrations above 5 mg/l are detrimental to tooth structure. High concentrations are contained in wastewater from the manufacturing of glass and steel, as well as from foundry operations. Organic fluoride is present in vegetables, fruits, and nuts. Inorganic fluorine, under the name of sodium fluoride, is a waste product of aluminum and is used in some rat poisons. The MCL for drinking water established by the U.S. EPA is 4 mg/l.
How It Works
Crystal Quest Eagle Fluoride Resin contains synthetic aluminum oxide adsorbent media. Specifically designed to have a high affinity for Fluoride, Lead, and Arsenic. It removes metals through a mixture of adsorption and chemical reaction with the media; therefore, the elimination is not reliant on ion exchange. It has a uniform particle size, is physically stable and can be used over a wide pH range. This system uses advanced filtration materials engineered to capture fluoride ions from water as it passes through the filter, helping reduce fluoride levels before the water reaches your faucet.
Take Control of What’s in Your Drinking Water
Most people assume their tap water is safe but many municipal water systems intentionally add fluoride as part of water treatment programs. While fluoride has historically been used to help reduce tooth decay, many consumers today prefer to limit how much fluoride they ingest, especially through daily drinking water. The Fluoride Removal Water Filtration System is designed to give you control by helping reduce fluoride and other unwanted contaminants from your water supply.
Why Many Families Are Choosing to Remove Fluoride
Fluoride is a naturally occurring mineral, but it can also enter water through industrial discharge, fertilizers, and municipal treatment processes. Once it’s in the water, it is invisible, odorless, and tasteless, meaning most people never realize they are consuming it daily. Recent research has sparked renewed interest in fluoride exposure. Some studies suggest that higher fluoride exposure (above about 1.5 mg/L) may be associated with lower IQ scores in children, particularly during prenatal development and early childhood.
Other research has linked excessive fluoride exposure to conditions such as:
-
Dental fluorosis (visible enamel damage)
-
Skeletal fluorosis, which can affect bones and joints
-
Potential thyroid interference in certain individuals
Long-term exposure to elevated fluoride levels has been associated with bone and joint issues in severe cases.
When This System Is Most Useful
-
Your city water is fluoridated
-
You are concerned about cumulative fluoride exposure
-
You want purified water for infants or children
-
You want a cleaner water source for drinking and cooking
- You want to reduce water consumption
Many homeowners combine fluoride filtration with reverse osmosis or whole-house filtration systems for even more comprehensive water purification.
Compatible Valves:
GPM:15

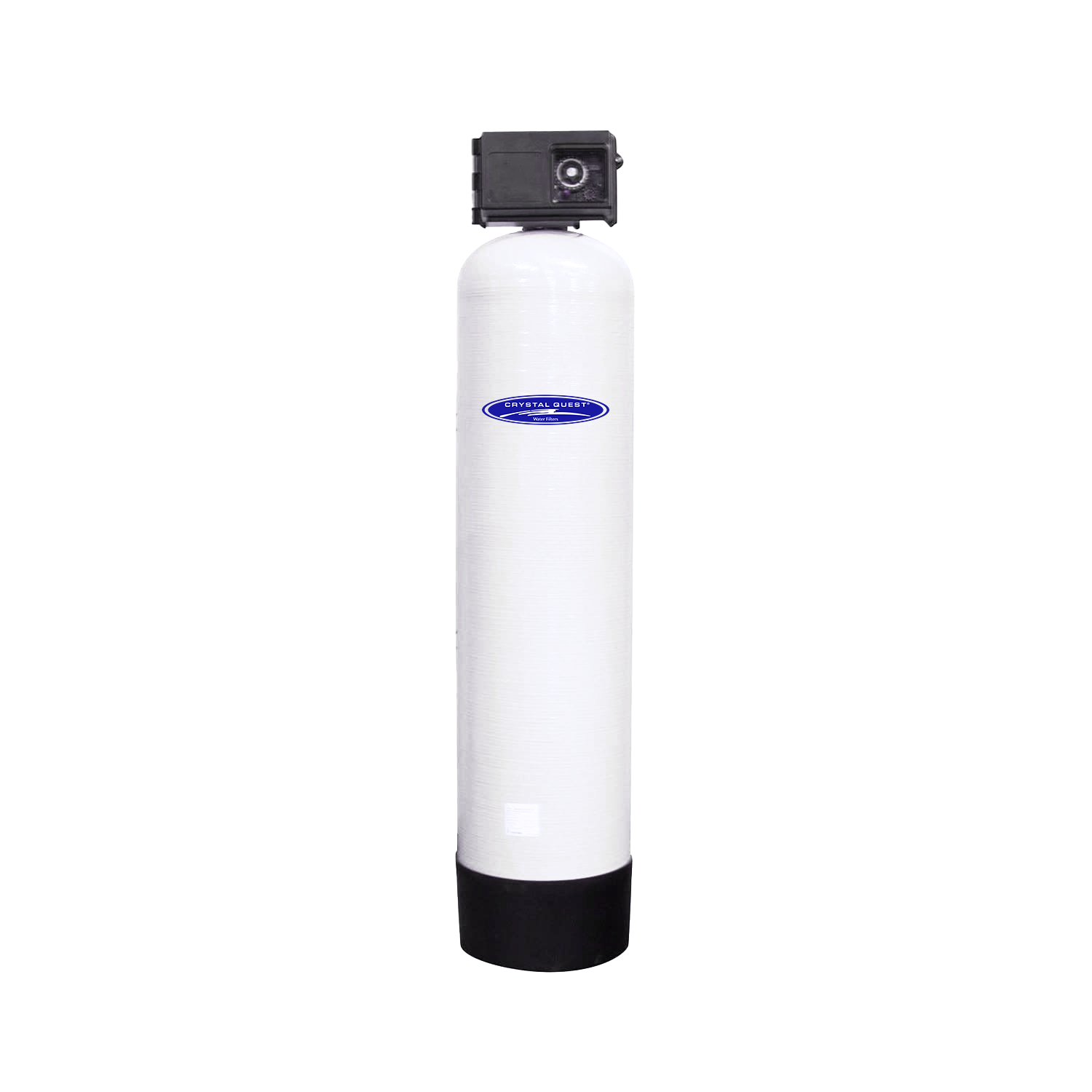

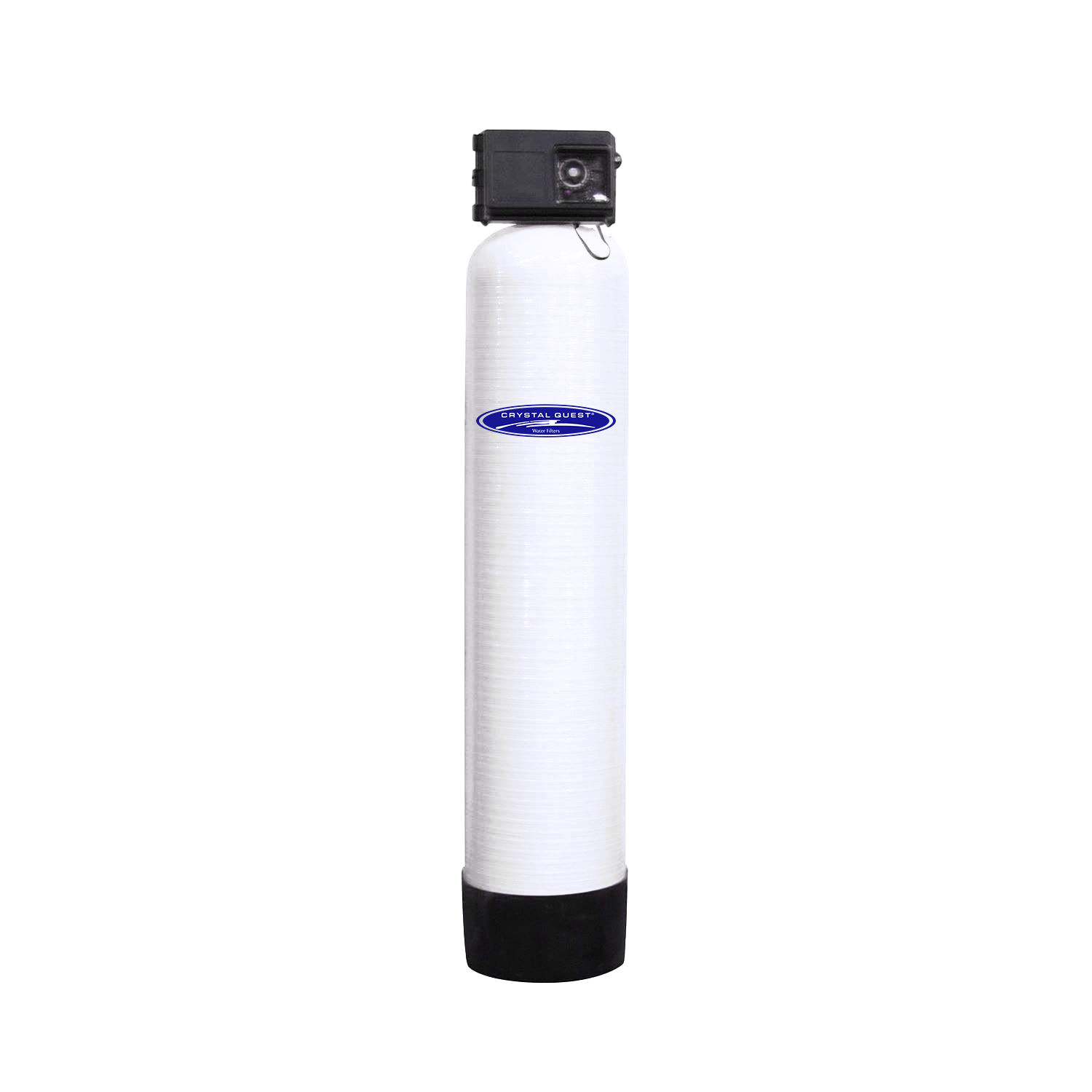

2510 Automatic Control Head
Elevate your water treatment system with the cutting-edge 2510 Automatic Control Head, engineered for unparalleled precision and adaptability. This advanced control head is designed to meet the diverse needs of both filtration and water softening systems, offering two distinct operational modes to suit your specific requirements.
Features:
- Electromechanical Timer valves
- 3/5” control valve
- Standard 1.9" distributor pilot
- high service flow rate of 19 GPM
- backwash capacity of 17 GPM
- valves use all brass material
- engineered for commercial & industrial use
Add-Ons:
2510 Automatic Control Head
Elevate your water treatment system with the cutting-edge 2510 Automatic Control Head, engineered for unparalleled precision and adaptability. This advanced control head is designed to meet the diverse needs of both filtration and water softening systems, offering two distinct operational modes to suit your specific requirements.
Features:
- Electromechanical Timer valves
- 3/5” control valve
- Standard 1.9" distributor pilot
- high service flow rate of 19 GPM
- backwash capacity of 17 GPM
- valves use all brass material
- engineered for commercial & industrial use
Add-Ons:
GPM:20 - 35

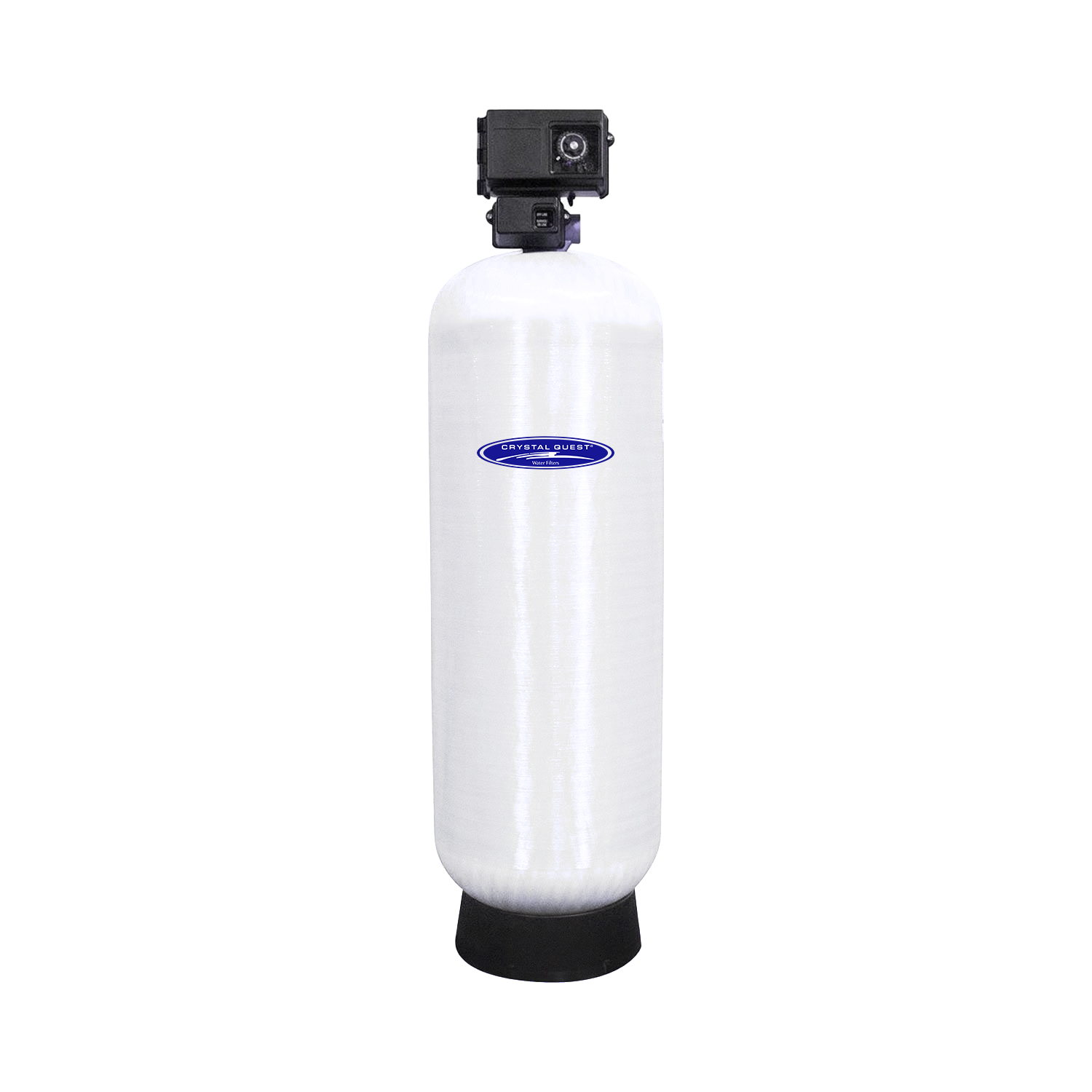

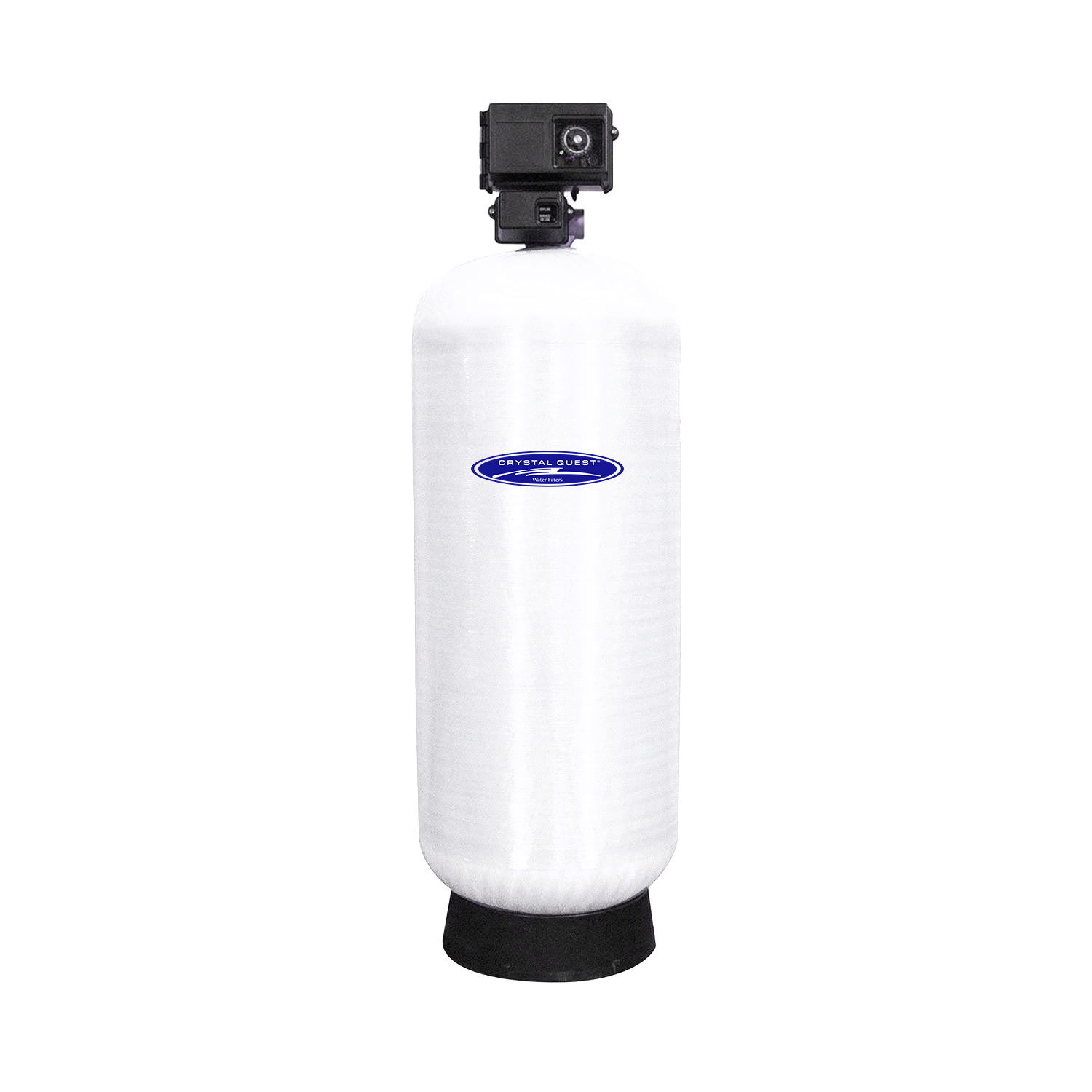

2900 Automatic Control Head
Elevate your water treatment setup with the 2900 Automatic Control Head, designed to redefine performance standards in commercial, industrial, and hot water applications. This advanced control head integrates superior technology and robust construction to deliver unmatched efficiency and reliability.
Features:
- Electromechanical Timer valves
- 2” control valve
- high service flow rate of 106 GPM
- backwash capacity of 36 GPM
- valves use all brass material
- self adjusting backwash controller
- engineered for commercial & industrial use
Add-Ons:
2900 Automatic Control Head
Elevate your water treatment setup with the 2900 Automatic Control Head, designed to redefine performance standards in commercial, industrial, and hot water applications. This advanced control head integrates superior technology and robust construction to deliver unmatched efficiency and reliability.
Features:
- Electromechanical Timer valves
- 2” control valve
- high service flow rate of 106 GPM
- backwash capacity of 36 GPM
- valves use all brass material
- self adjusting backwash controller
- engineered for commercial & industrial use
Add-Ons:
- NXT Display Controller
- XT Display Controller
- Meter Valves
GPM:200 - 390
| Specification |
CQE-CO-02075 |
CQE-CO-02076 |
CQE-CO-02077 |
CQE-CO-02078 |
CQE-CO-02079 |
CQE-CO-02080 |
CQE-CO-02081 |
CQE-CO-02082 |
CQE-CO-02190 |
| Service Flow Rate GPM |
15 |
20 |
35 |
60 |
75 |
185 |
200 |
245 |
390 |
| Peak Flow GPM |
22 |
41 |
60 |
95 |
140 |
250 |
270 |
280 |
450 |
| Backwash Flow GPM |
5 |
7 |
12 |
15 |
25 |
35 |
50 |
65 |
75 |
| Pipe Size |
1" |
1.5" |
1.5" |
2" |
2" |
2" / 3" |
3" |
3" |
3" |
| Electronic Control Valve |
2510 |
2850 |
2850 |
2900 |
2900 |
3150 / 3900 |
3900 |
3900 |
3900 |
| Fluoride Removal Media |
3 ft³ |
4 ft³ |
7 ft³ |
10 ft³ |
15 ft³ |
20 ft³ |
30 ft³ |
40 ft³ |
60 ft³ |
| PSI Range |
35-60 |
35-60 |
35-60 |
35-60 |
35-60 |
35-60 |
35-60 |
35-60 |
35-60 |
| Mineral Tank Size (in.) |
14" x 65" |
16" x 65" |
21" x 62" |
24" x 72" |
30" x 72" |
36" x 72" |
42" x 72" |
48" x 72" |
63" x 83" |
| Space Required (in.) (D x H) |
16" x 75" |
18" x 75" |
23" x 84" |
24" x 95" |
32" x 95" |
40" x 192" |
46" x 192" |
52" x 192" |
67" x 203" |
| Quartz (lbs.) |
30 |
40 |
70 |
100 |
150 |
200 |
300 |
400 |
600 |
Aluminum Oxide Fluoride Removal SDS
Aluminum Oxide Fluoride Removal PDS
Calcium GAC SDS
Calcium GAC PDS
